Manual Transmission Unit: Removal

  1. REMOVE UPPER CONSOLE PANEL AND CONSOLE BOX (See  REMOVAL  )
  2. REMOVE SHIFT BOOT RETAINER
    1. Disconnect the 2 wire harness clamps.
    2. Remove the 4 bolts and shift boot retainer.

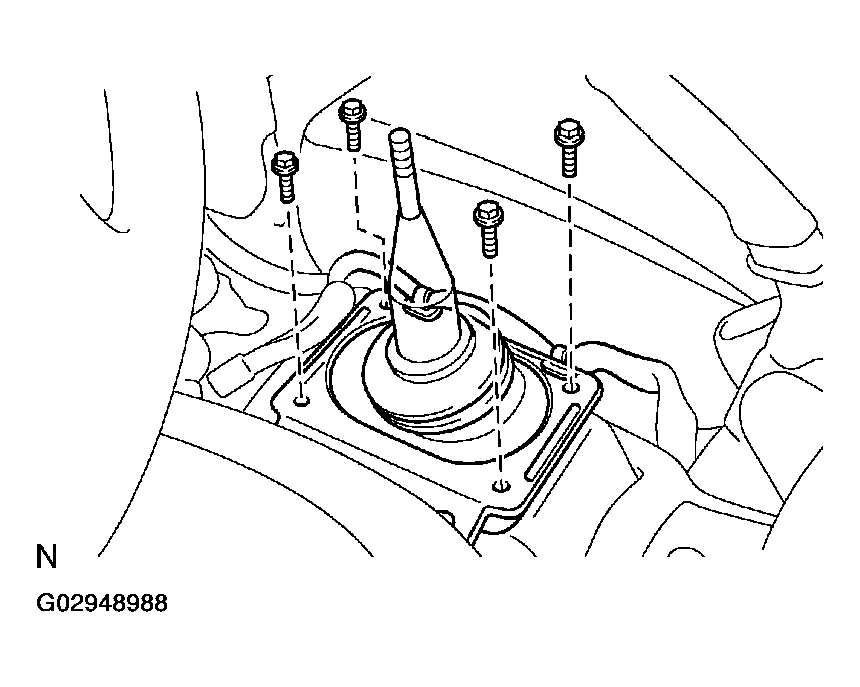

      3. Fig 1: Removing Shift Boot Retainer
      G02948988Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE SHIFT BOOT
  4. REMOVE TRANSMISSION SHIFT LEVER

    Remove the 4 bolts, transmission shift lever and washer.

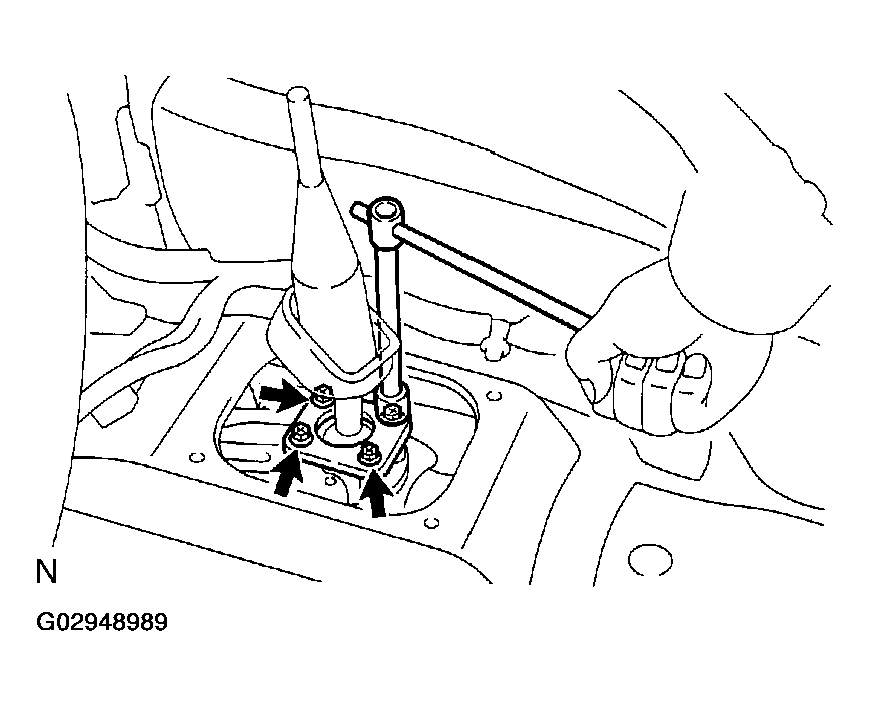

    Fig 2: Removing Transmission Shift Lever
    G02948989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE ENGINE COVER NO. 1
  6. REMOVE NO. 1 AND NO. 2 ENGINE UNDER COVERS
  7. DRAIN ENGINE COOLANT
  8. DISCONNECT RADIATOR UPPER HOSE NO. 1 FROM ENGINE
  9. REMOVE INTAKE AIR CONNECTOR
    1. Disconnect the MAF meter connector.
    2. Disconnect the engine wire harness clamp from the air cleaner case.
    3. Loosen the 2 hose clamp bolts, remove the intake air connector from the throttle body.

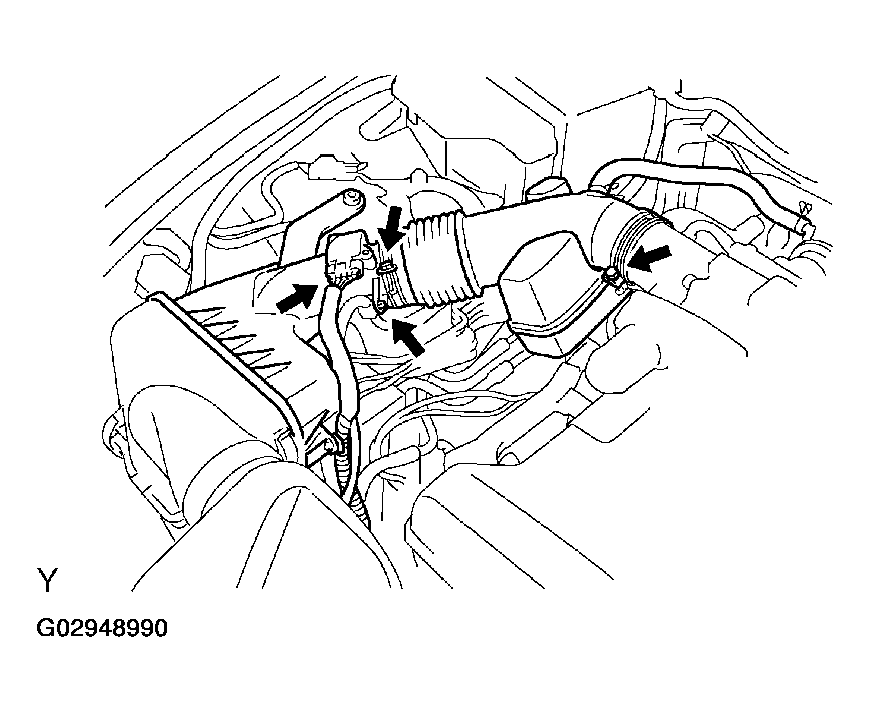

      Fig 3: Removing Intake Air Connector
      G02948990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE EXHAUST MANIFOLD
    1. Remove the case clamp.
    2. Disconnect the heated oxygen sensor (bank 2 sensor 1) connector.
    3. Remove the 8 nuts, exhaust manifold and 2 gaskets.

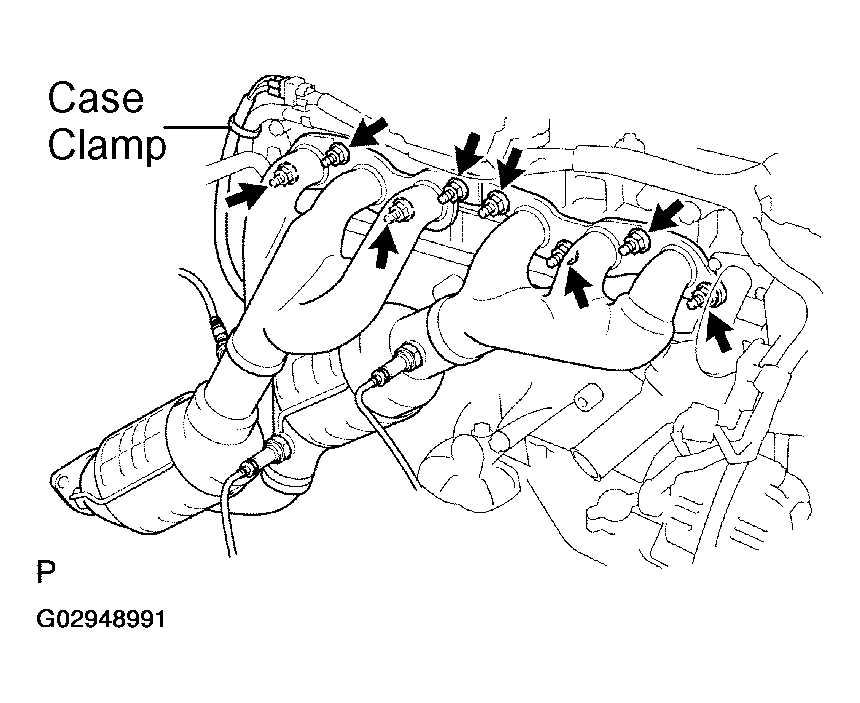

      4. Fig 4: Removing Exhaust Manifold
      G02948991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. RAISE VEHICLE
    NOTE: Make sure that the vehicle is securely supported.
  12. DRAIN TRANSMISSION OIL
  13. REMOVE LH FRONT FLOOR CENTER COVER
  14. REMOVE NO. 1 REAR FLOOR BOARD
  15. REMOVE FRONT AND CENTER EXHAUST PIPES (See  EXHAUST SYSTEM  )
  16. REMOVE PROPELLER SHAFT (See  REMOVAL  )
  17. DISCONNECT CLUTCH RELEASE CYLINDER, CLUTCH LINE BRACKET AND EARTH WIRE
    1. Remove the 2 bolts and disconnect the clutch release cylinder.
    2. Remove the bolt and disconnect the clutch line bracket and earth wire.

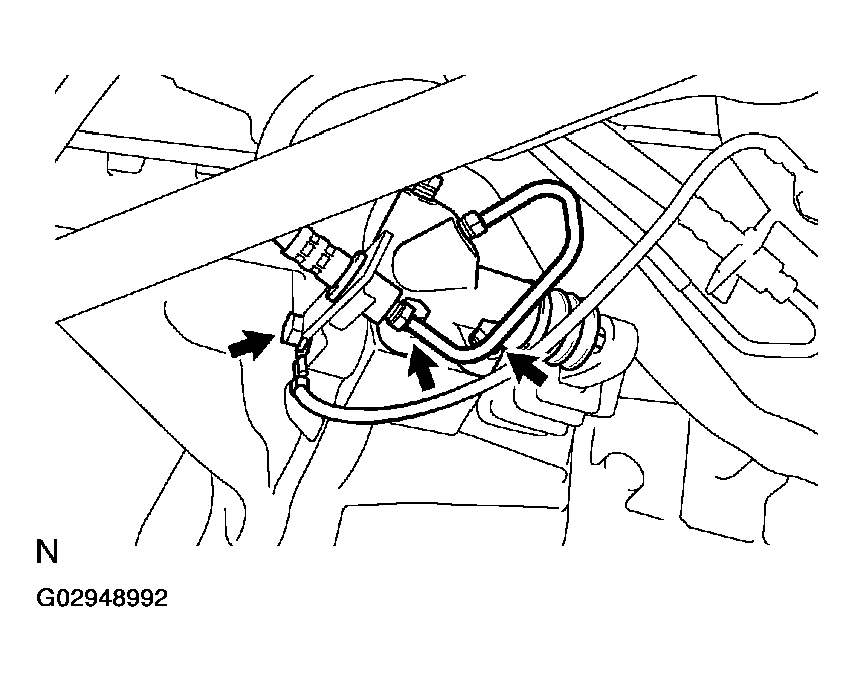

      Fig 5: Disconnecting Clutch Release Cylinder, Clutch Line Bracket And Earth Wire
      G02948992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. DISCONNECT BACK-UP LIGHT SWITCH CONNECTOR

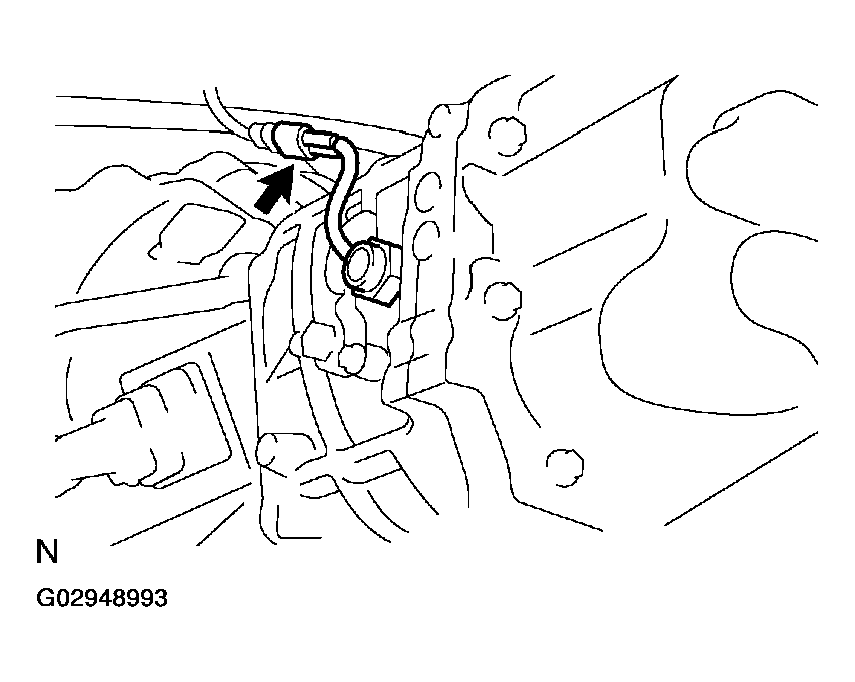

    Fig 6: Disconnecting Back-Up Light Switch Connector
    G02948993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. DISCONNECT SPEED SENSOR CONNECTOR AND WIRE HARNESS
    1. Disconnect the connector.
    2. Disconnect the wire harness from the clamp.

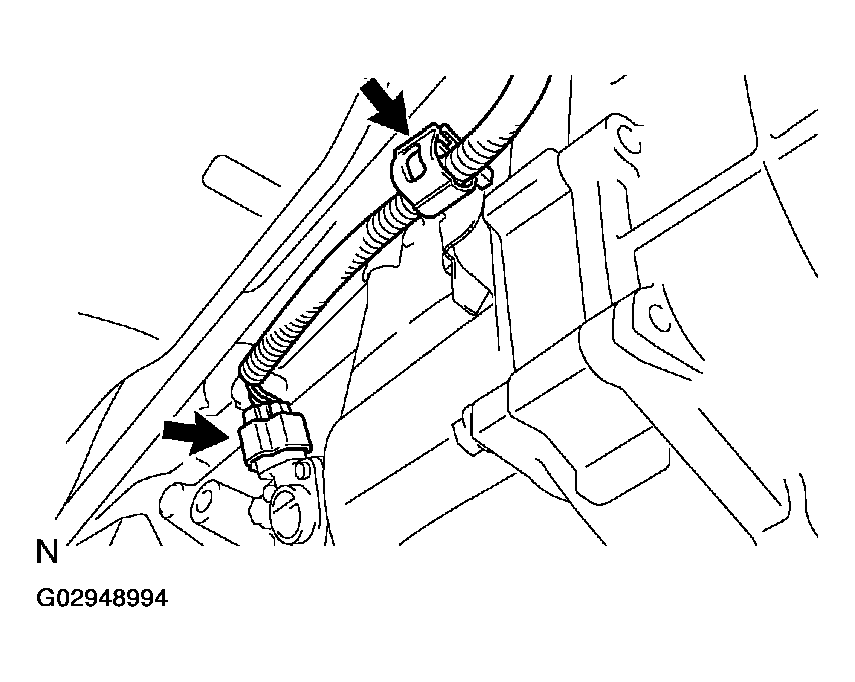

    Fig 7: Disconnecting Speed Sensor Connector And Wire Harness
    G02948994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE STARTER
    1. Disconnect the connector.
    2. Remove the nut and wire.
    3. Remove the 2 bolts and starter.
  21. JACK UP TRANSMISSION SLIGHTLY

    Using a transmission jack, support the transmission.

  22. REMOVE REAR ENGINE MOUNTING MEMBER

    Remove the 4 bolts, 4 nuts and rear engine mounting member.

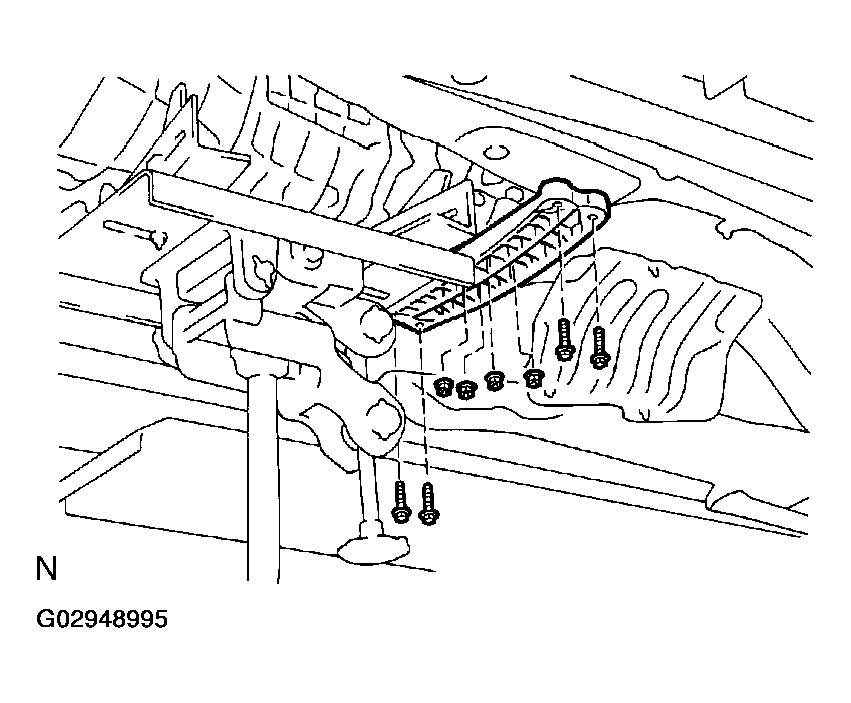

    Fig 8: Removing Rear Engine Mounting Member
    G02948995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE ENGINE REAR MOUNTING

    Remove the 4 bolts and engine rear mounting.

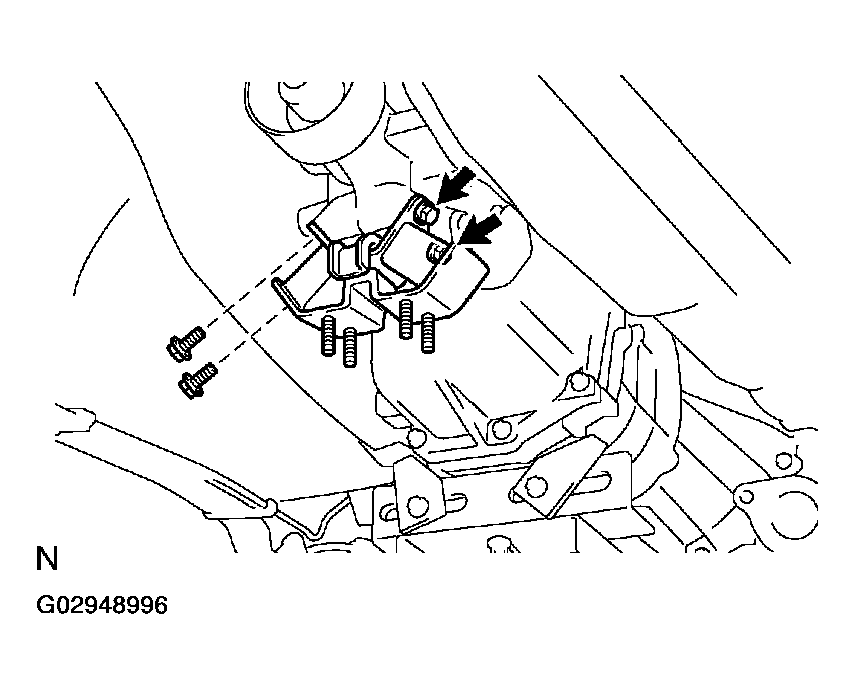

    Fig 9: Removing Engine Rear Mounting
    G02948996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE TRANSMISSION

    Remove the 8 bolts, wire harness clamp and transmission.

    HINT:

    After separating the transmission from the engine, turn the transmission a little in the clockwise. At the condition that the transmission housing does not contact the body, lower the jack.

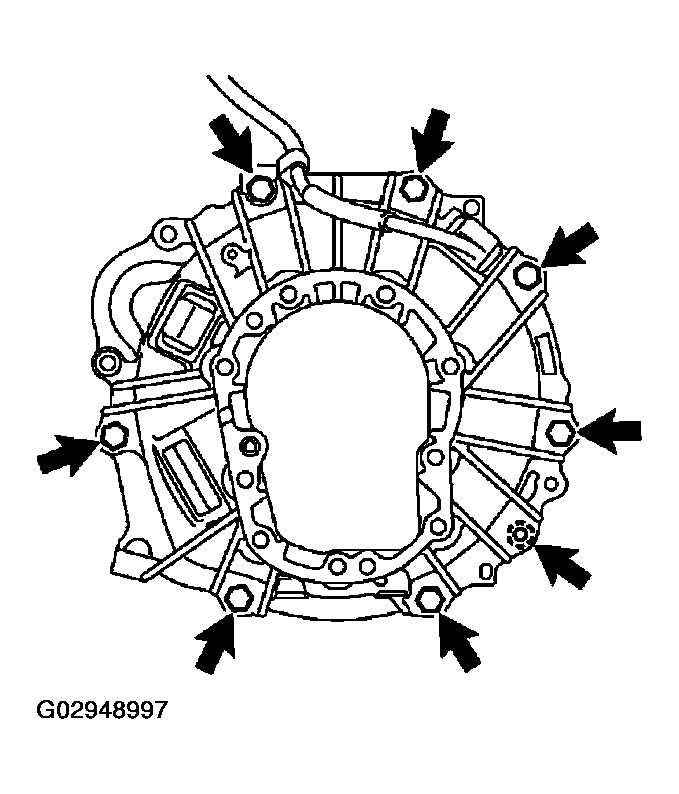

    Fig 10: Removing Transmission
    G02948997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
