Manual Transmission Unit: Components

Fig 1: Exploded View Of Manual Transmission Unit With Torque Specifications (1 Of 3)
G02948985Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Exploded View Of Manual Transmission Unit With Torque Specifications (2 Of 3)
G02948986Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

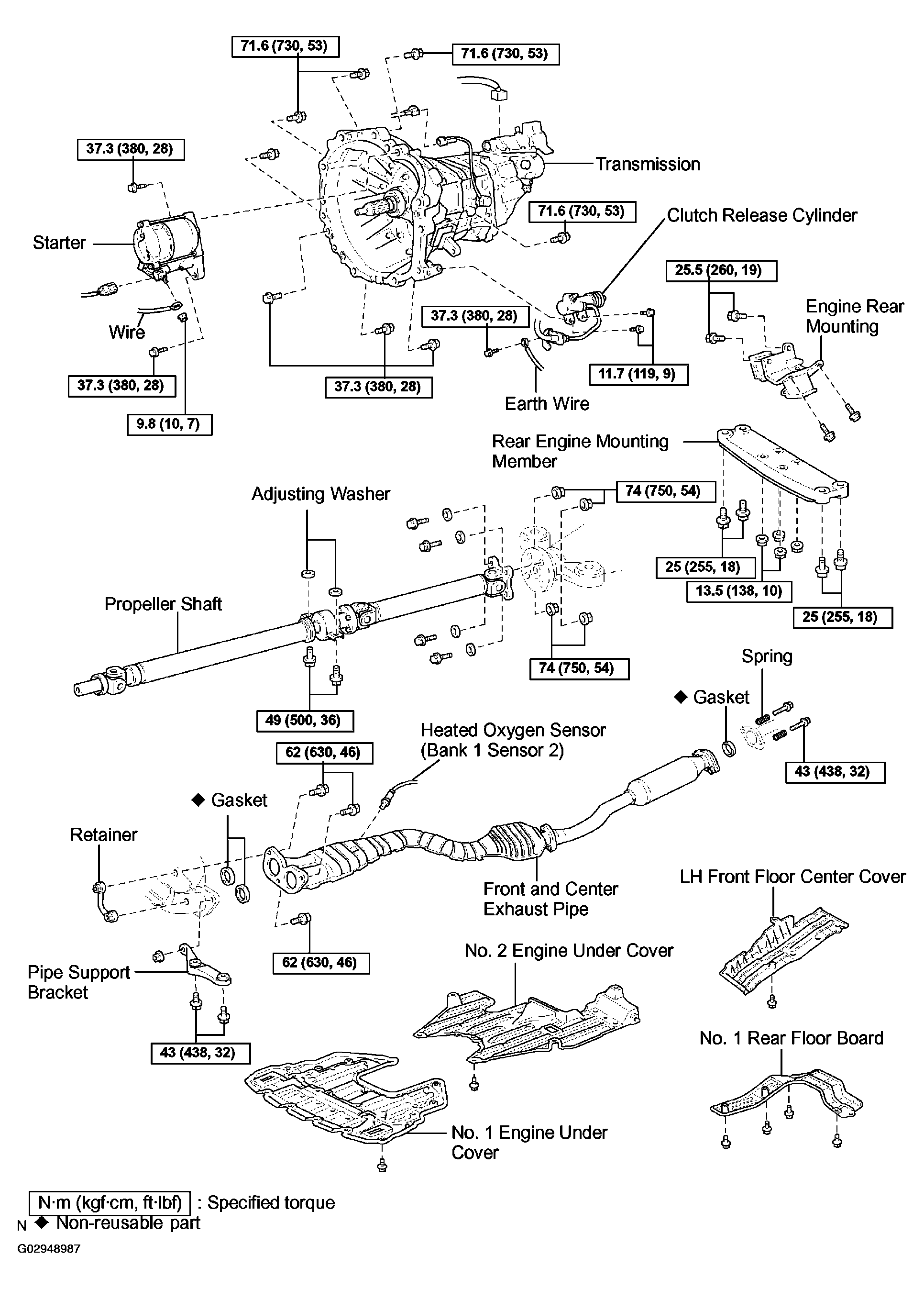

Fig 3: Exploded View Of Manual Transmission Unit With Torque Specifications (3 Of 3)
G02948987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
