Manual Transmission Assembly: Components

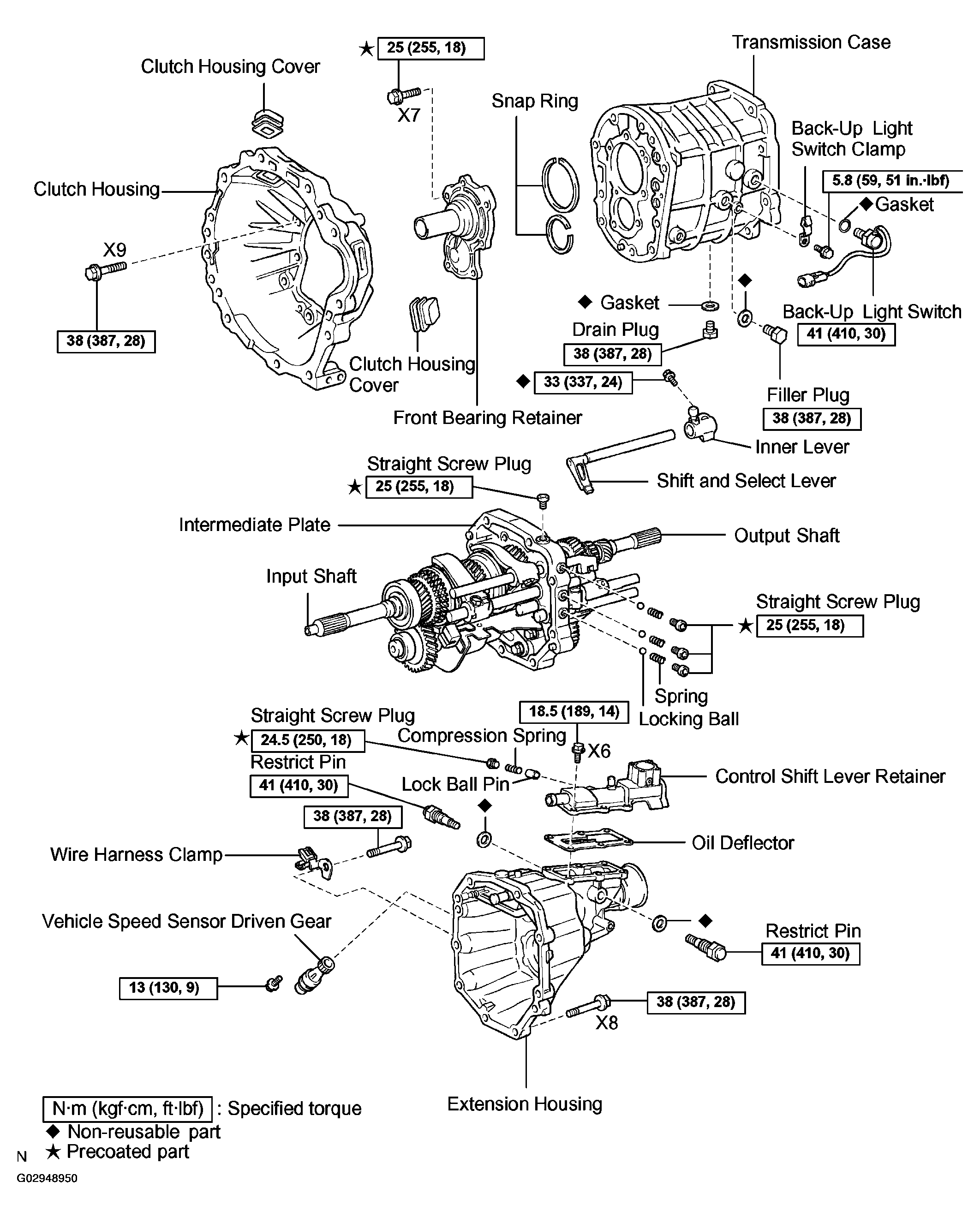

Fig 1: Exploded View Of Manual Transmission Assembly With Torque Specifications (1 Of 2)
G02948950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

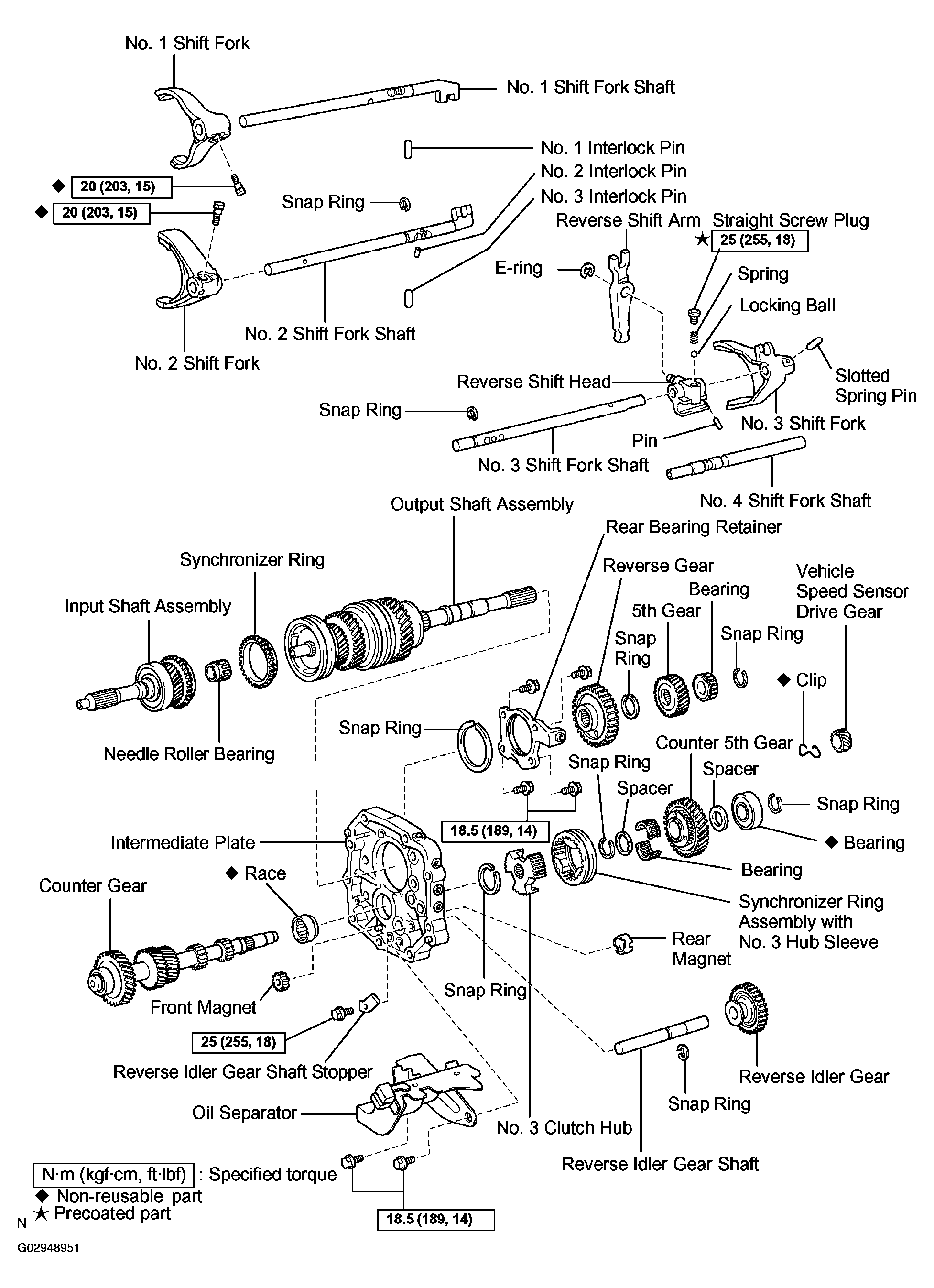

Fig 2: Exploded View Of Manual Transmission Assembly With Torque Specifications (2 Of 2)
G02948951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
