Home >> Lexus >> 2005 >> IS 300 Base, Standard >> Repair and Diagnosis >> Transmission >> Manual Trans >> Manual Transmission >> Input Shaft >> Components

Input Shaft: Components

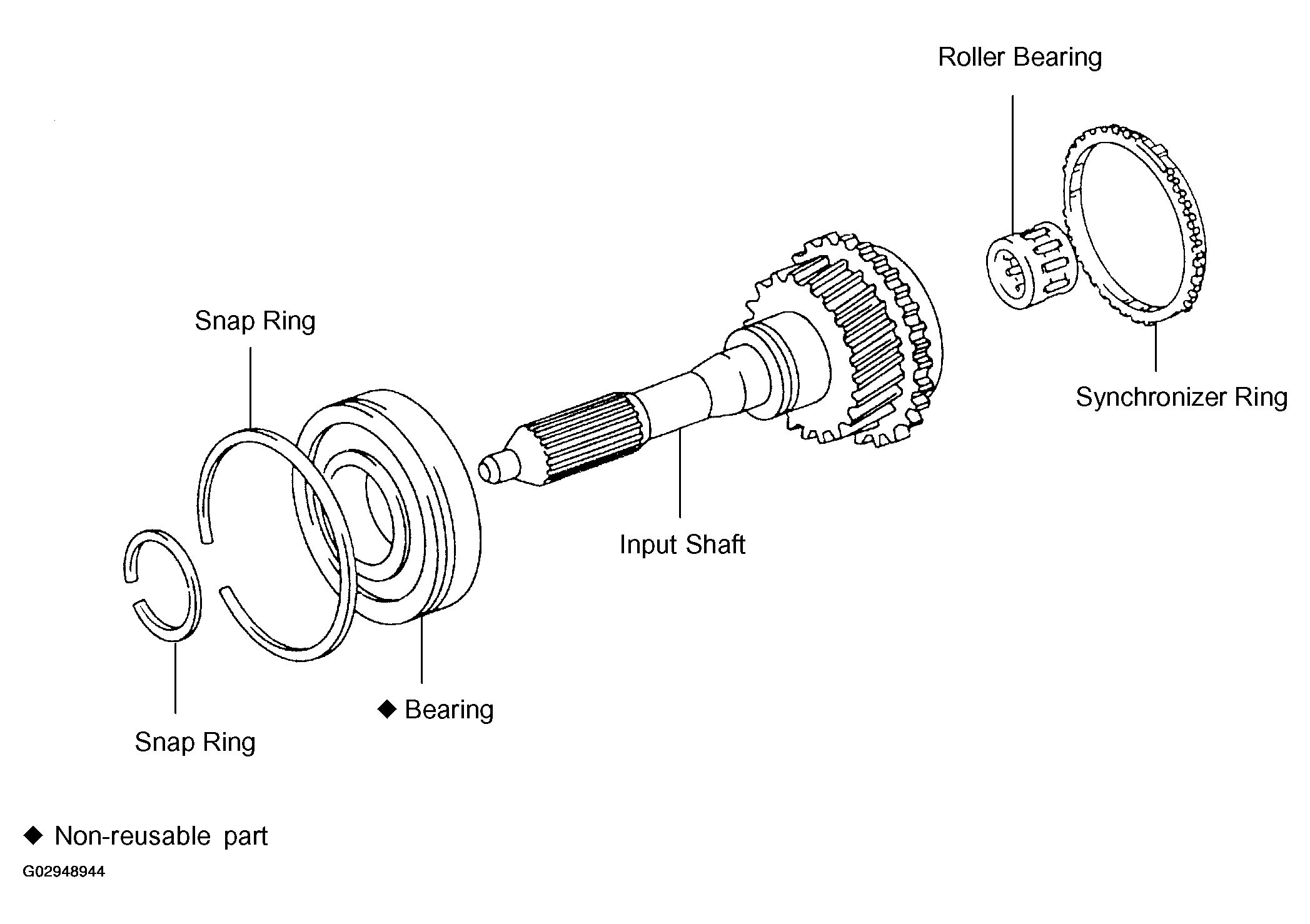

Fig 1: Exploded View Of Input Shaft

G02948944

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
