Home >> Lexus >> 2005 >> IS 300 Base, Standard >> Repair and Diagnosis >> Transmission >> Manual Trans >> Manual Transmission >> Extension Housing >> Components

Extension Housing: Components

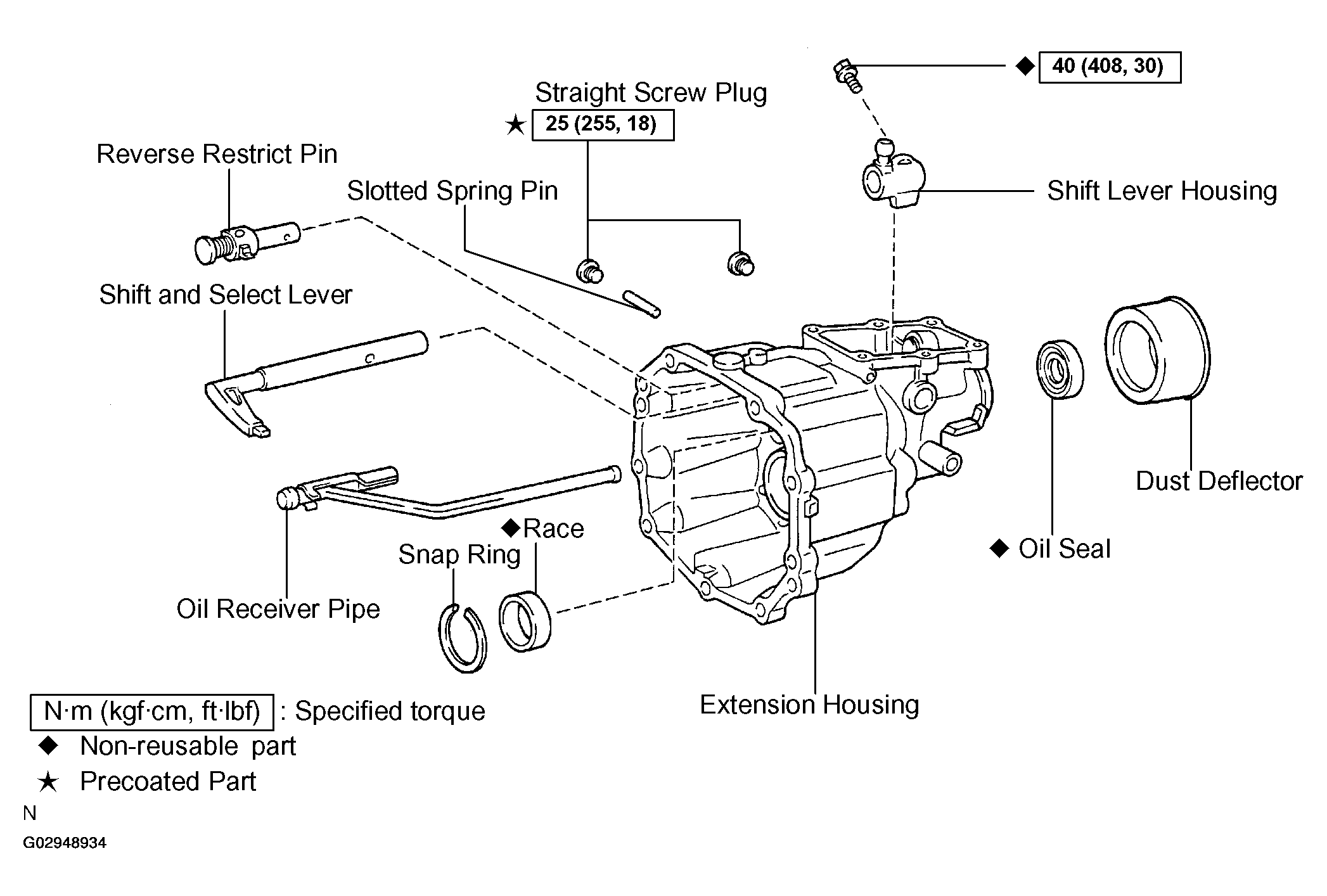

Fig 1: Exploded View Of Extension Housing With Torque Specifications

G02948934

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
