Repair Procedures

HINT:

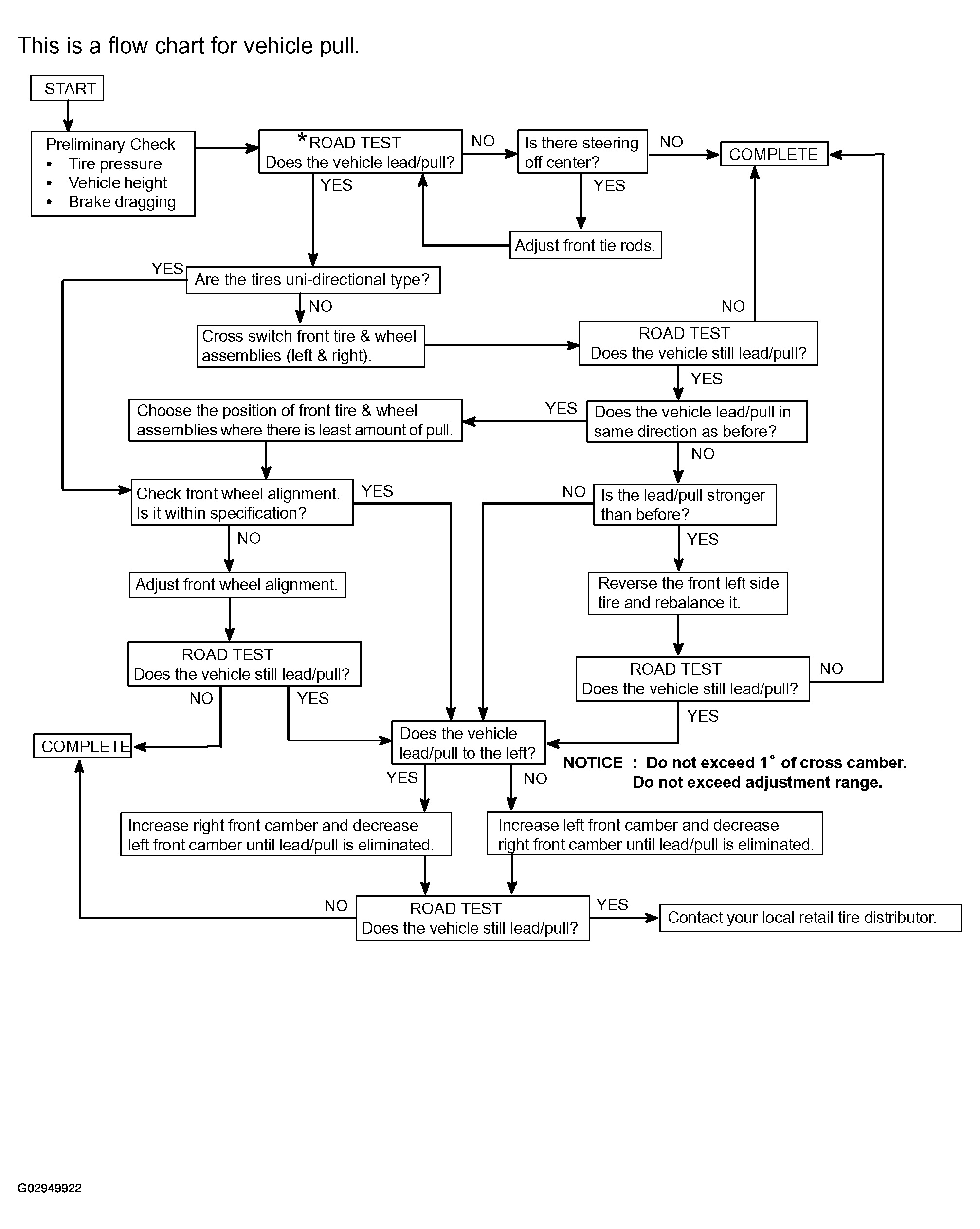

This is a flow chart for vehicle pull.

Fig 1: Vehicle Pull Repair Flow Chart

G02949922

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
