Home >> Lexus >> 2005 >> IS 300 Base, Standard >> Repair and Diagnosis >> Suspension >> Wheel Alignment >> Suspension And Axle >> Front Stabilizer Bar >> Components

Front Stabilizer Bar: Components

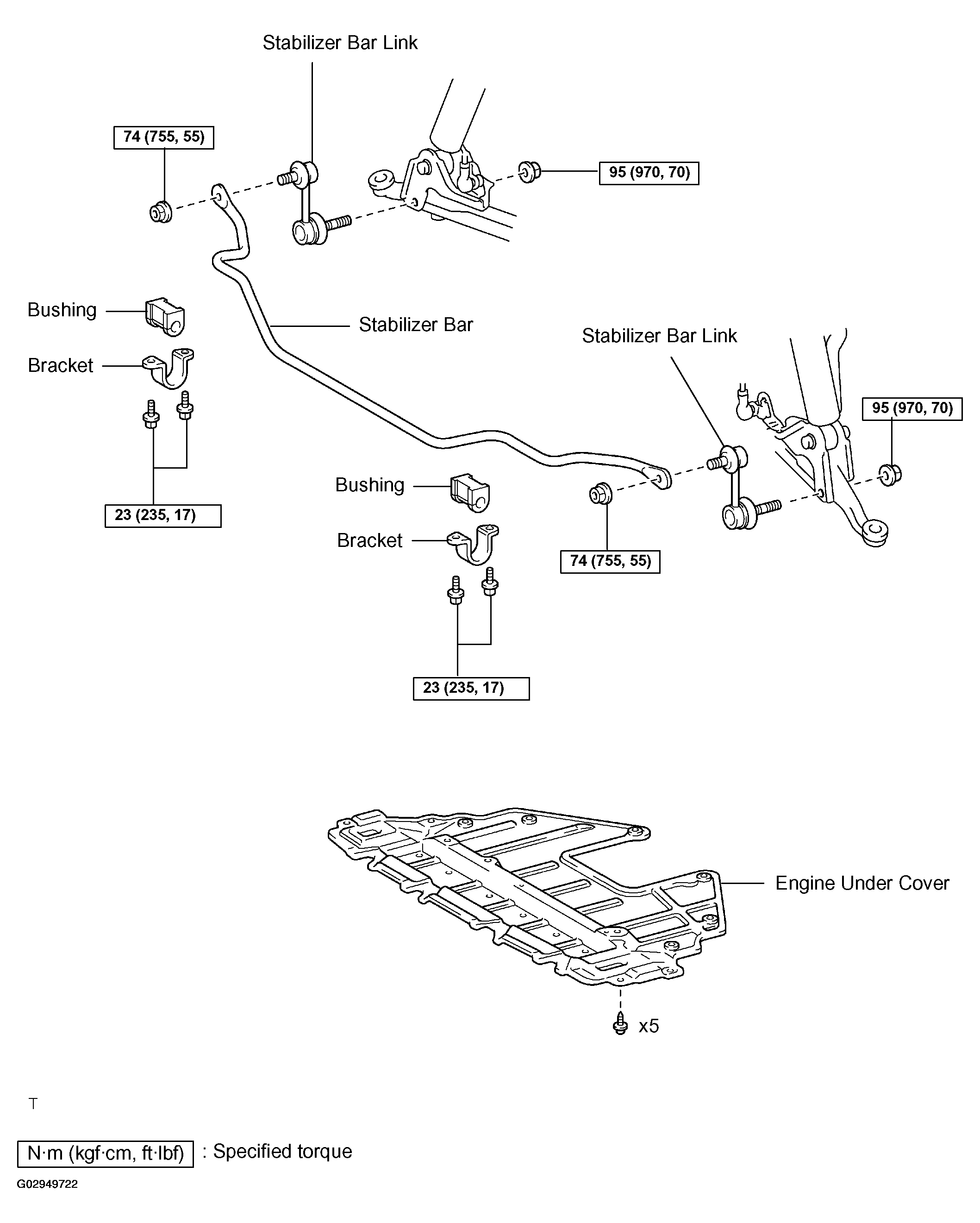

Fig 1: Front Stabilizer Bar Replacement Components With Torque Specifications

G02949722

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
