Front Shock Absorber: Components

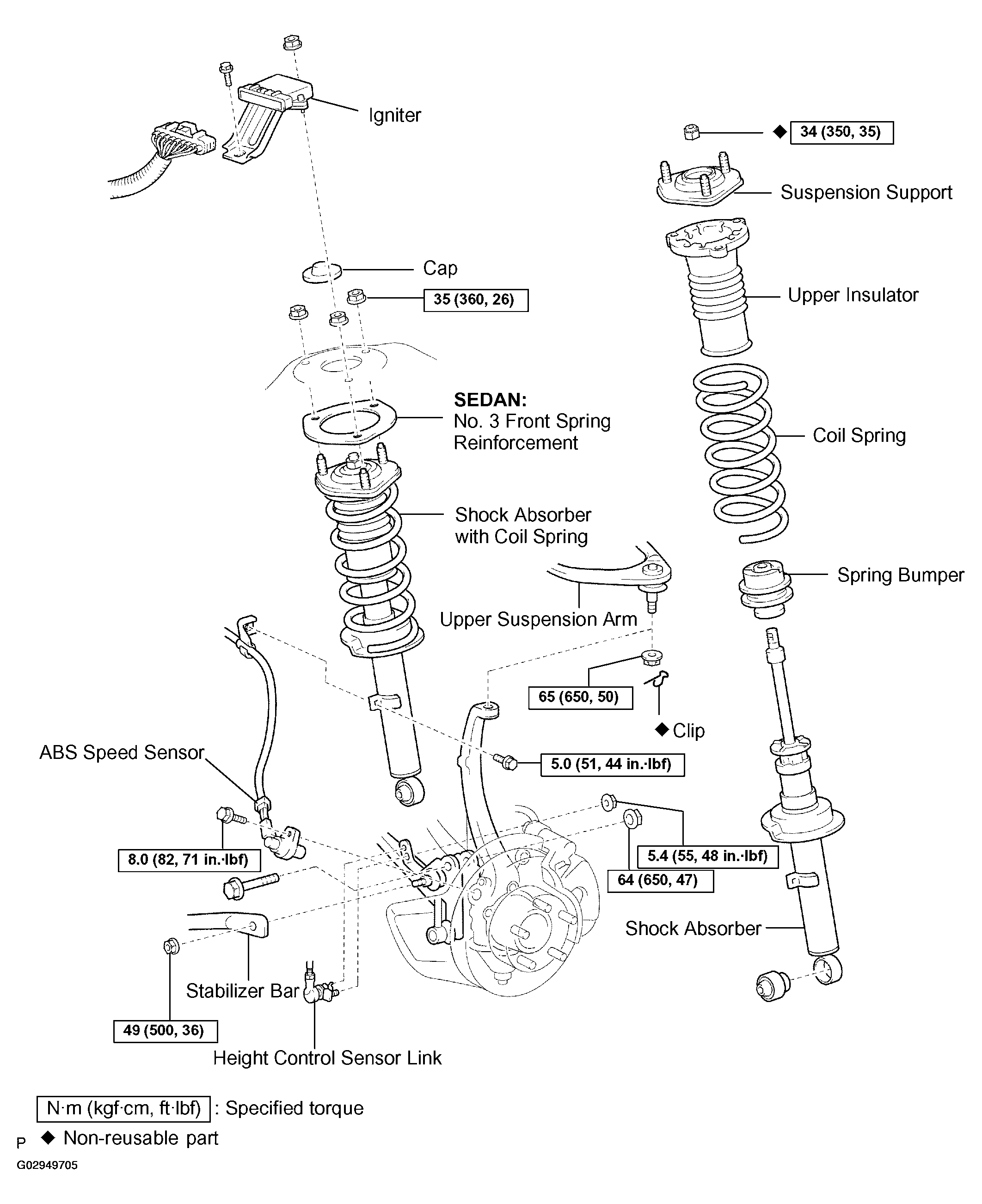

Fig 1: Front Shock Absorber Replacement Components With Torque Specifications

G02949705

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
