Front Axle Hub: Components

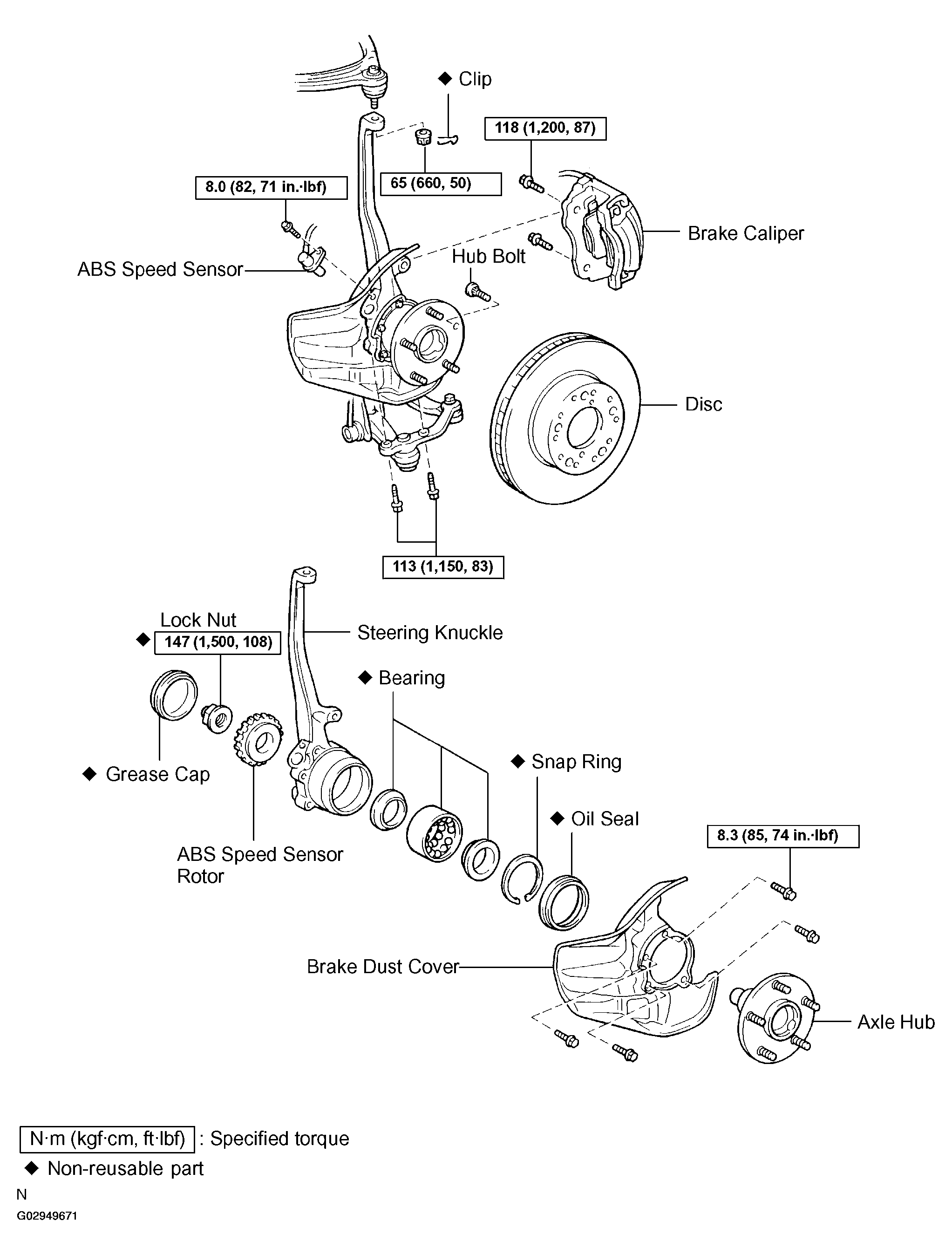

Fig 1: Exploded View Of Front Axle Hub Components With Torque Specifications

G02949671

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
