DTC P0550, P0552, P0553: Power Steering Pressure Sensor/Switch Circuit, Power Steering Pressure Sensor/Switch Circuit Low/High Input: Wiring Diagram

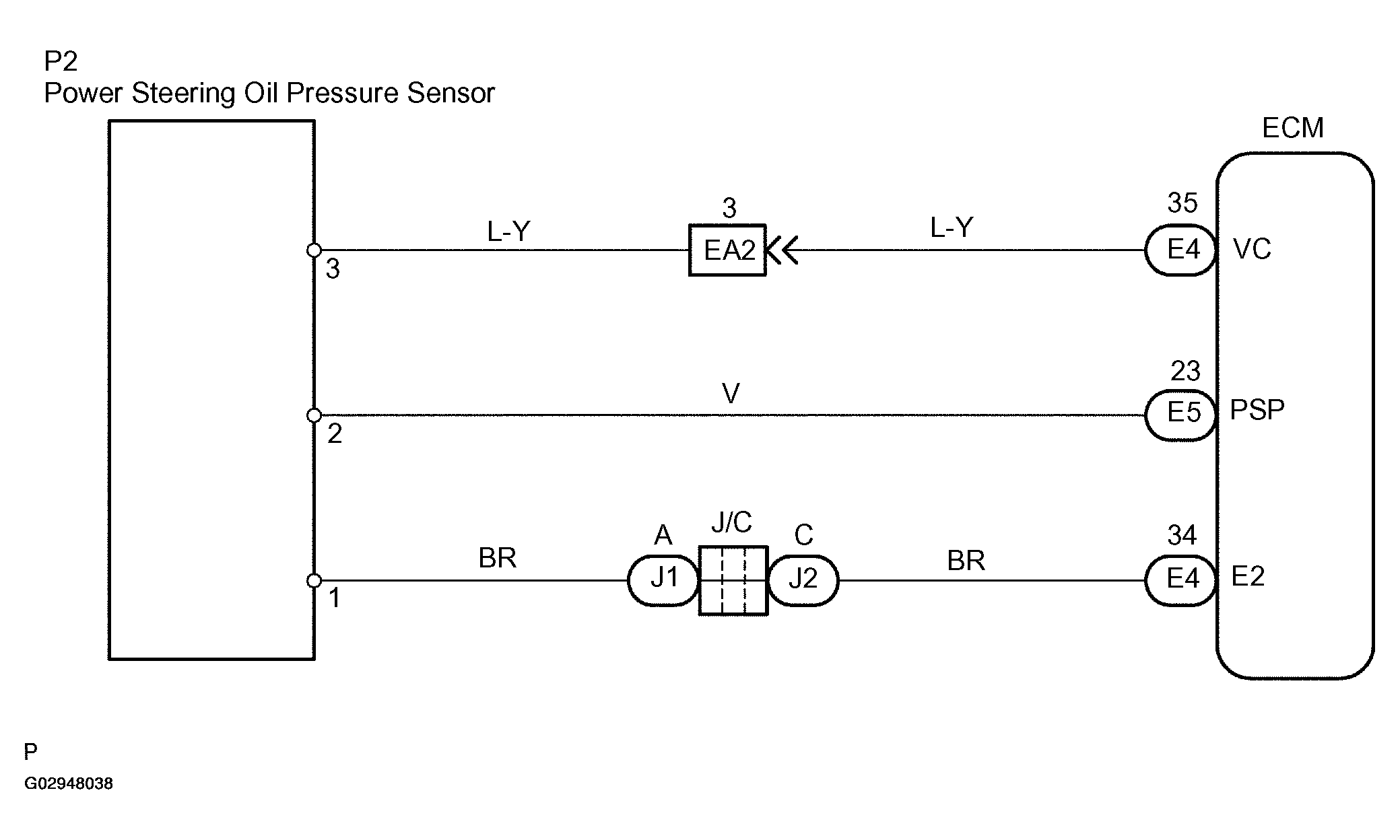

Fig 1: Wiring Diagram - DTC P0550, P0552, P0553 Power Steering Pressure Sensor/Switch Circuit
G02948038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
