Circuit Description

The power steering oil pressure sensor is turned ON when a power steering wheel load occurs by turning the steering wheel. The ECM regulates the engine idling speed according to the voltage output of the sensor.

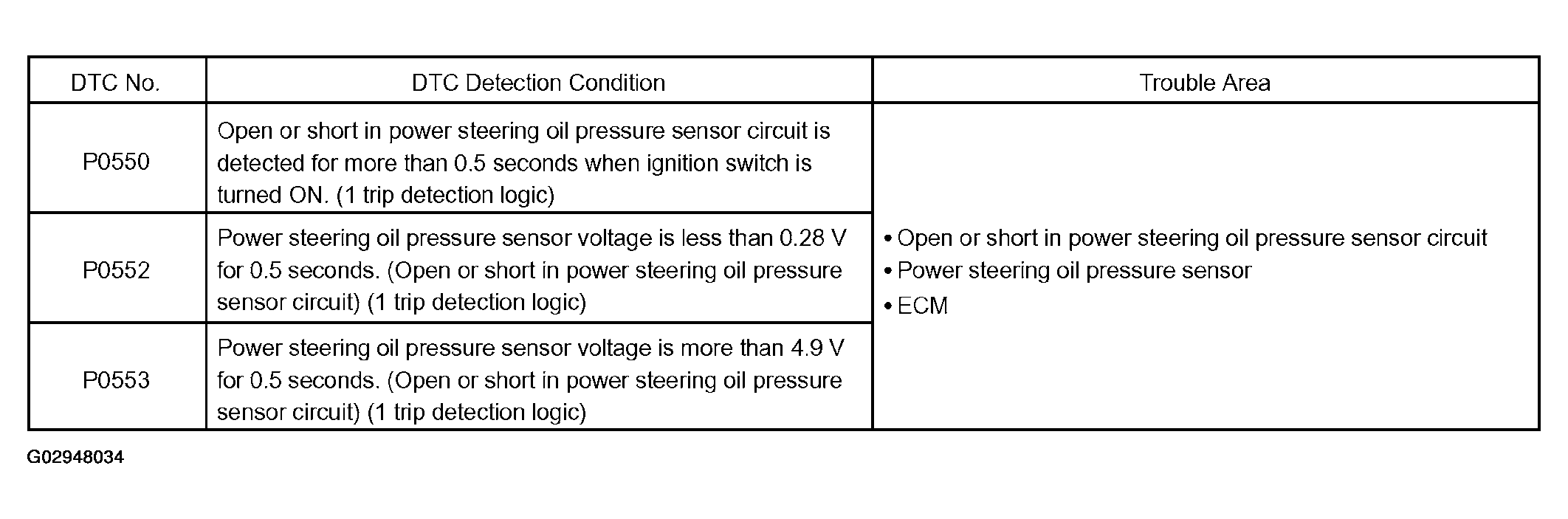

Fig 1: DTC P0550, P0552, P0553 Trouble Detection Table
G02948034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
