Inspect Fuel Tank And Line

1. Check the fuel lines for cracks or leakage, and all connections for deformation.
Fig 1: Checking Fuel Lines For Cracks Or Leakage
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check the fuel tank vapor vent system hoses and connections for looseness, sharp bends or damage.
3. Check the fuel tank for deformation, cracks, fuel leakage or tank band looseness.
4. Check the filler neck for damage or fuel leakage.
5. Hose and pipe connections are as shown in the illustration.

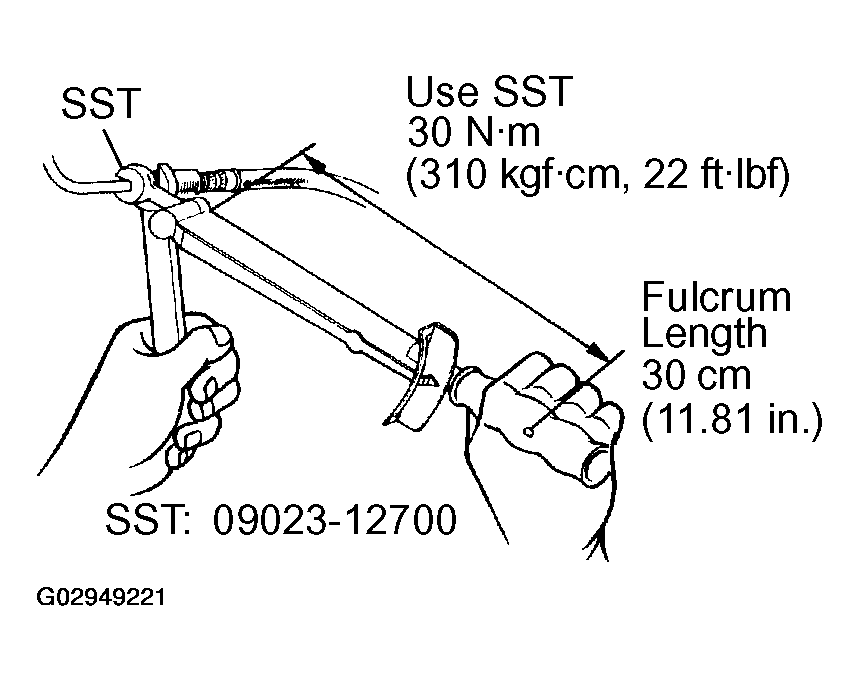

Fig 2: Tightening Torque Of Fuel Lines
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Hose And Pipe Connections
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If a problem is found, repair or replace the parts as necessary.
