Camshaft Timing Oil Control Valve: Components

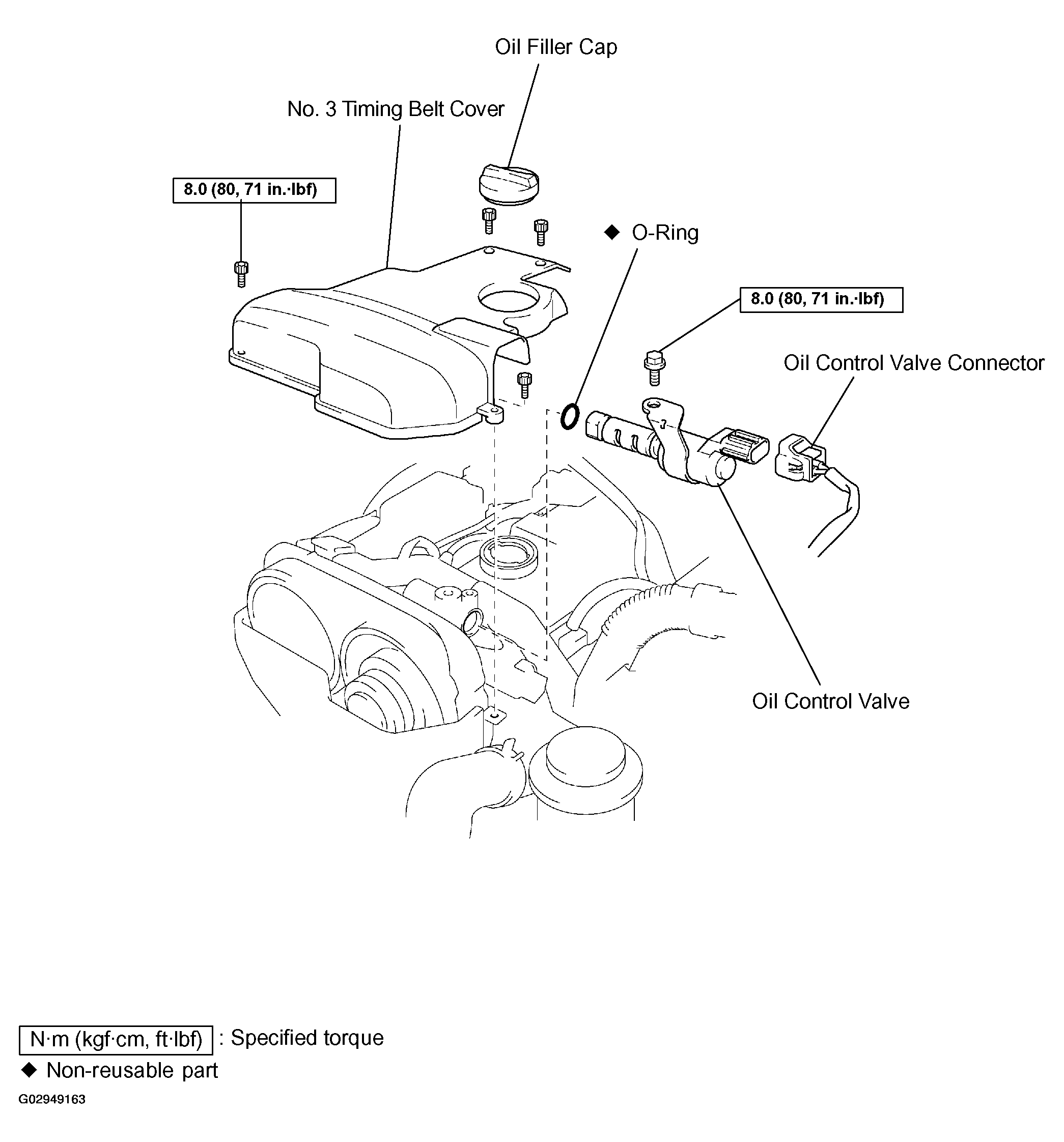

Fig 1: Exploded View Of Oil Control Valve With Torque Specifications

G02949163

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
