Remove Starter

  1. Remove the rubber cap and nut, and disconnect the starter wire.
  2. Disconnect the starter connector.
    Fig 1: Disconnecting Starter Connector
    G02949306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Remove the 2 bolts and starter.
    1. Torque: 37 N.m (380 kgf.cm, 27 ft.lbf)

    HINT:

    At time of the installation, when installing the upper bolt, tighten it together with the clamp bracket.

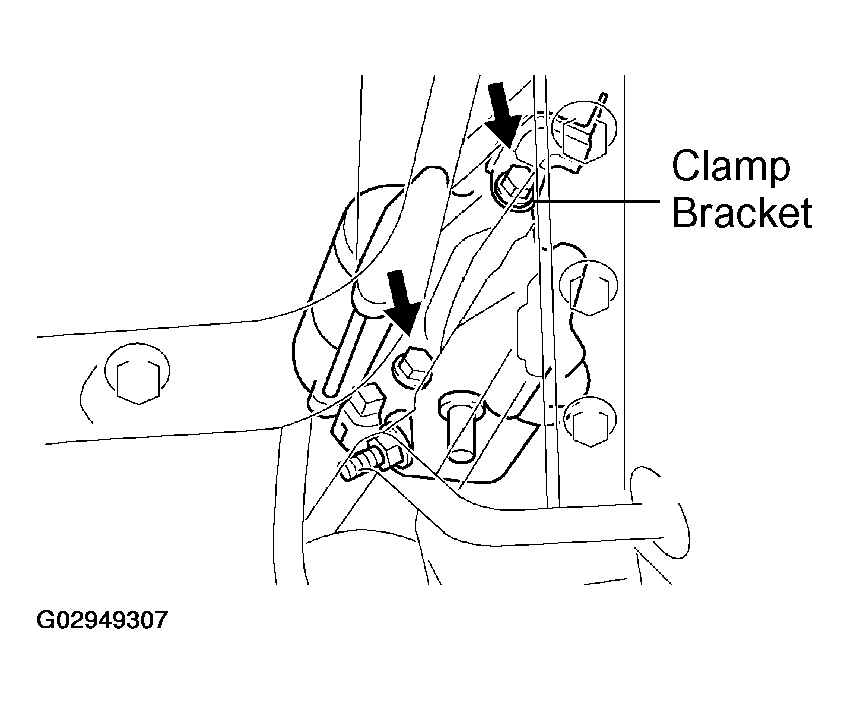

    Fig 2: Tightening Starter With Clamp Bracket
    G02949307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
