Parts Layout And Schematic Drawing: Location

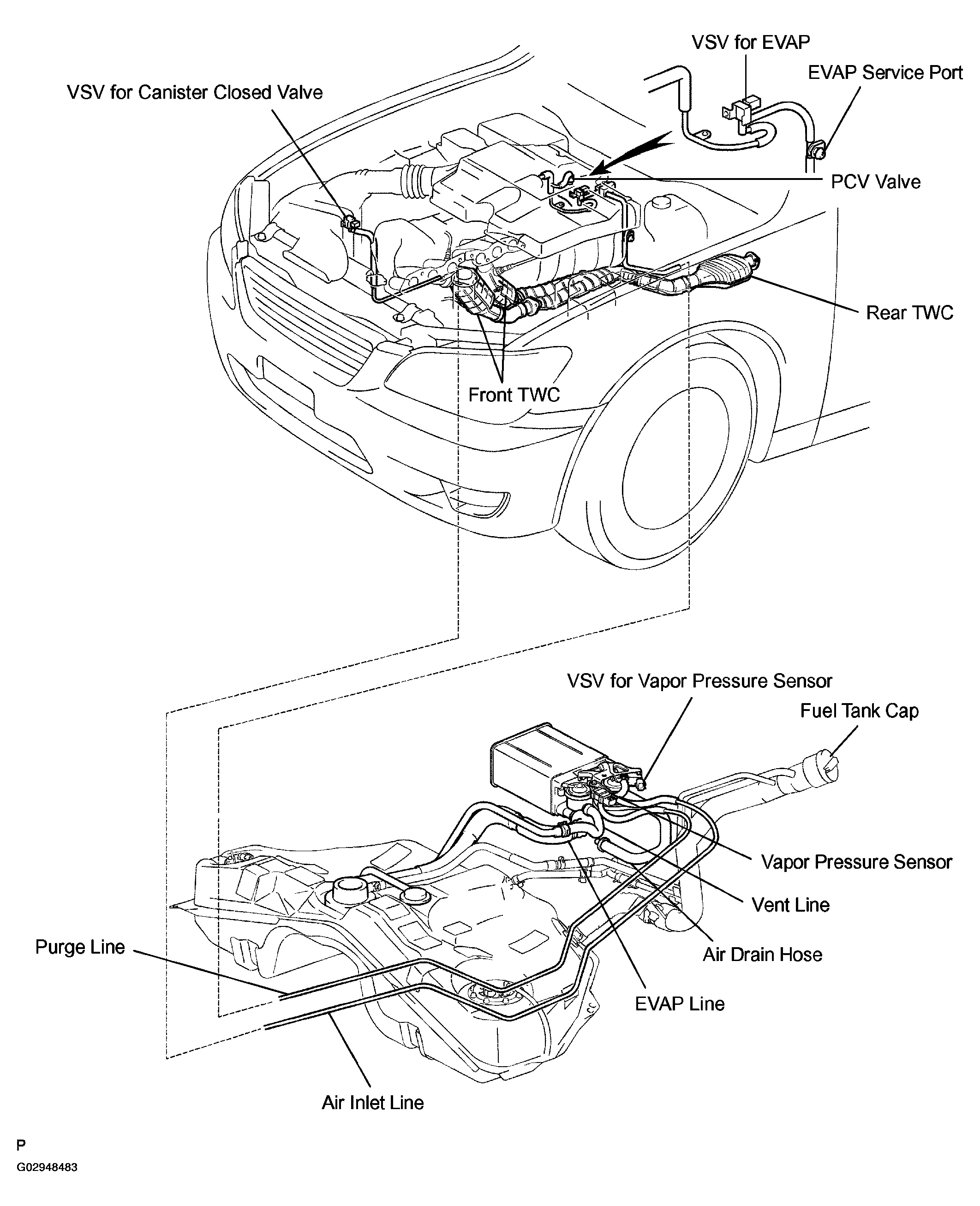

Fig 1: Identifying Parts Layout Of Emission Control System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
