Seat Heater System: Location

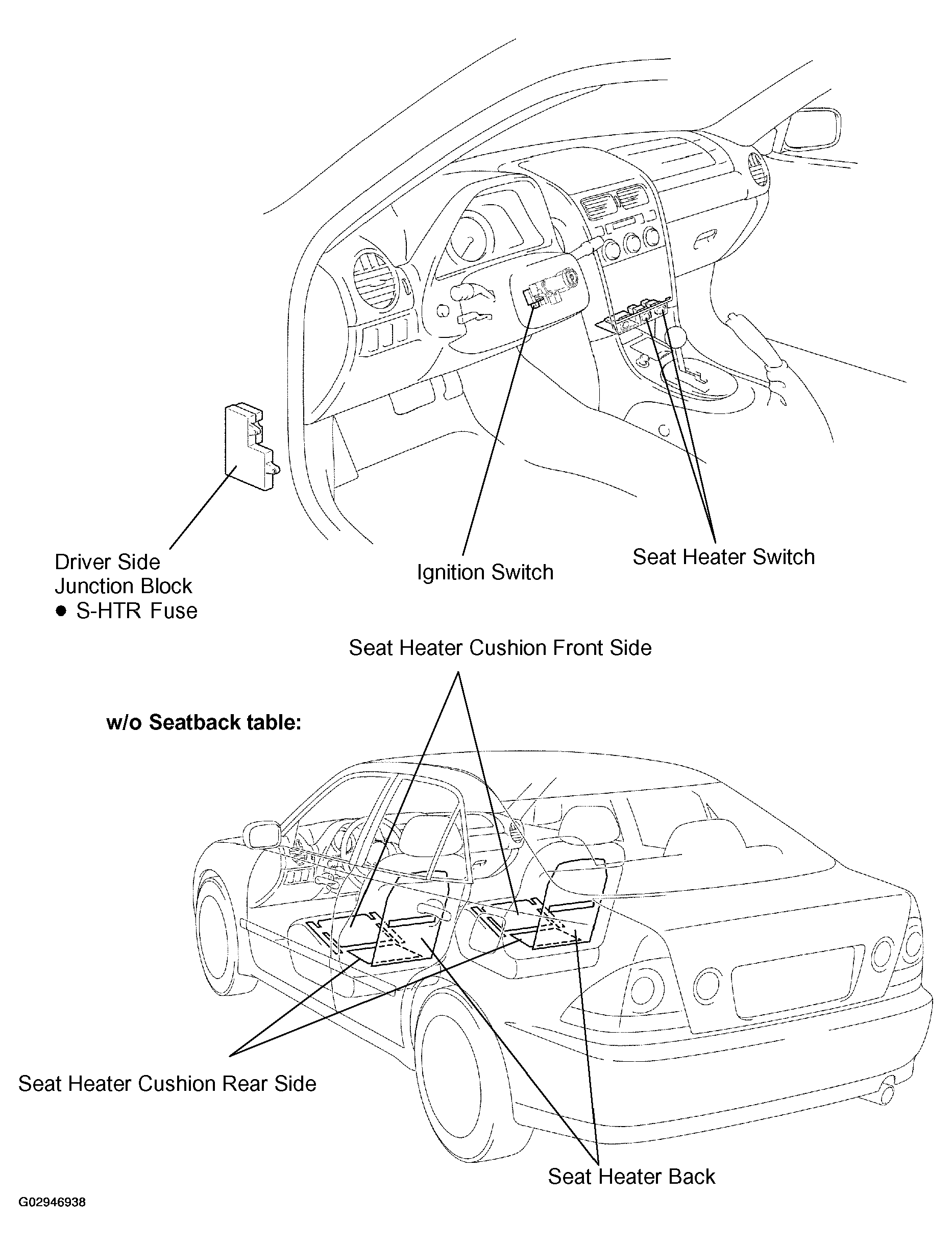

Fig 1: Identifying Seat Heater System Components Location (1 Of 2)
G02946938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

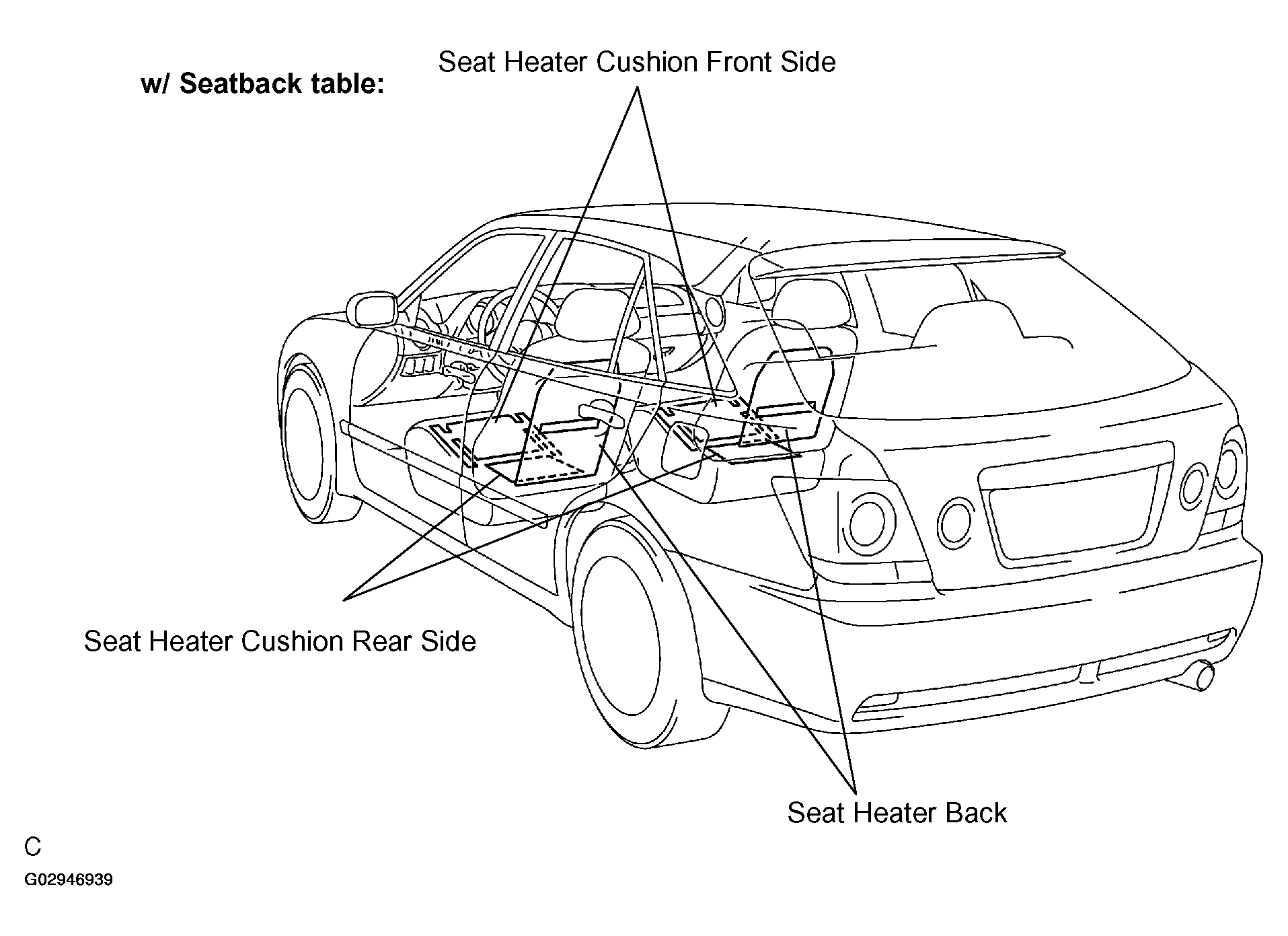

Fig 2: Identifying Seat Heater System Components Location (2 Of 2)
G02946939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
