Hood Lock Control: Removal

HINT:

A bolt without a torque specification is shown in the standard bolt chart, (see STANDARD BOLT )

1. REMOVE FRONT FENDER LINER
2. REMOVE LOWER FINISH PANEL
   1. Remove the 3 screws and lower finish panel.
   2. Disconnect the connectors and hood lock control cable.
3. REMOVE RADIATOR GRILLE

   Remove the screw, 2 clips and radiator grille.

4. REMOVE HOOD LOCK CONTROL CABLE COVER

   Remove the bolt and hood lock control cable cover.

   Fig 1: Removing Screw Clips And Radiator Grille

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. REMOVE HOOD LOCK
   1. Using a screwdriver, remove the hood lock bolt cap.

      HINT:

      Tape the screwdriver tip before use.

   2. Remove the 3 bolts and hood lock.

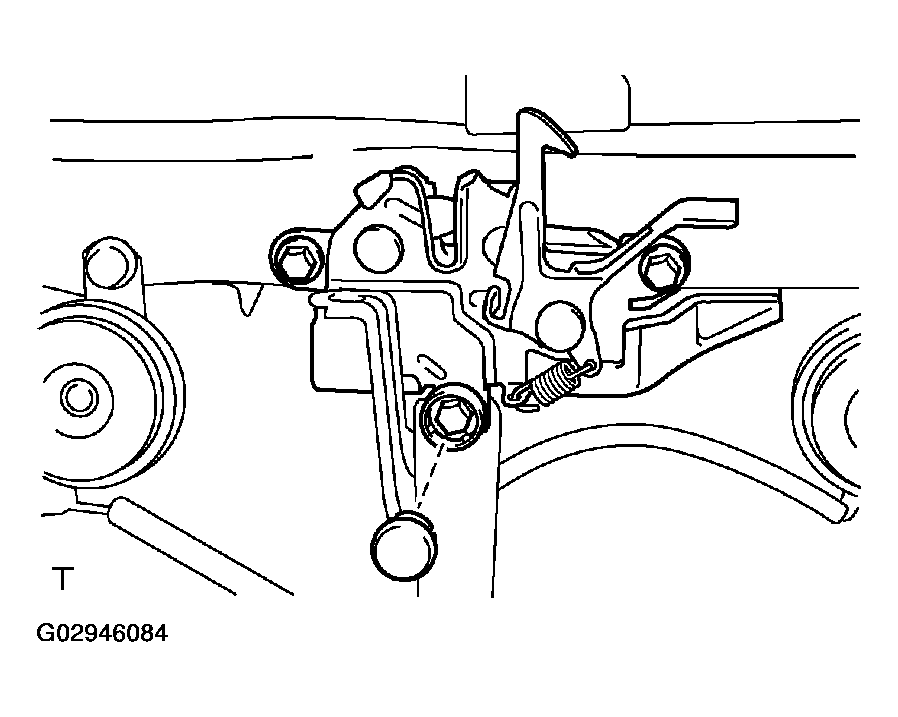

      Fig 2: Removing Bolts And Hood Lock

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Using a screwdriver, open the cover, then disconnect the hood lock control cable.

   HINT:

   Tape the screwdriver tip before use.

   Fig 3: Disconnecting Hood Lock Control Cable

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. REMOVE HOOD LOCK CONTROL CABLE
   1. Using a screwdriver, disconnect the cable from the clamps.

      HINT:

      Tape the screwdriver tip before use.

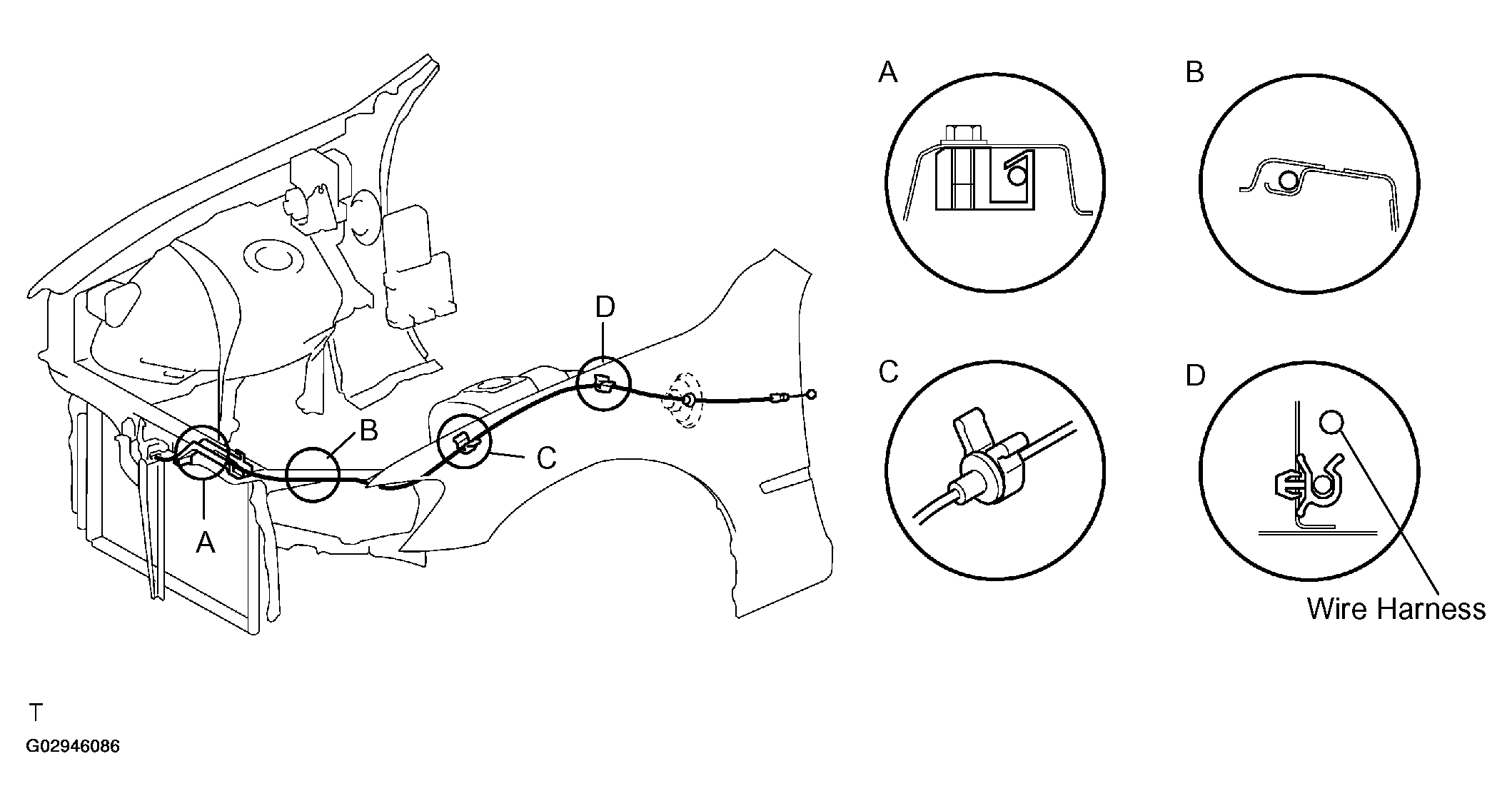

      Fig 4: Disconnecting Cable From Clamps Using Screwdriver

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Pull the cable from the engine room to remove it.
      Fig 5: Pulling Cable From Engine Room

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
