Body Outside Moulding: Installation

CLEAN BODY MOUNTING SURFACE
1. Using a heat light, heat the body mounting surface to 40-60 °C (104- 140 °F).
  NOTE: Do not heat the body excessively.
2. Remove the adhesive tape from the body.
3. Wipe off stains with cleaner.

  Fig 1: Heating Body Mounting Surface, Using Heat Light
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If reusing the moulding:
CLEAN MOULDING
1. Using a heat light, heat the moulding to 20-30 °C (68 -86 °F).
  NOTE: Do not heat the moulding excessively.
2. Remove the adhesive tape from the moulding.
3. Wipe off stains with cleaner.
4. Apply a new adhesive tape to the moulding as shown in the illustration.

  Fig 2: Heating Moulding, Using Heat Light
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

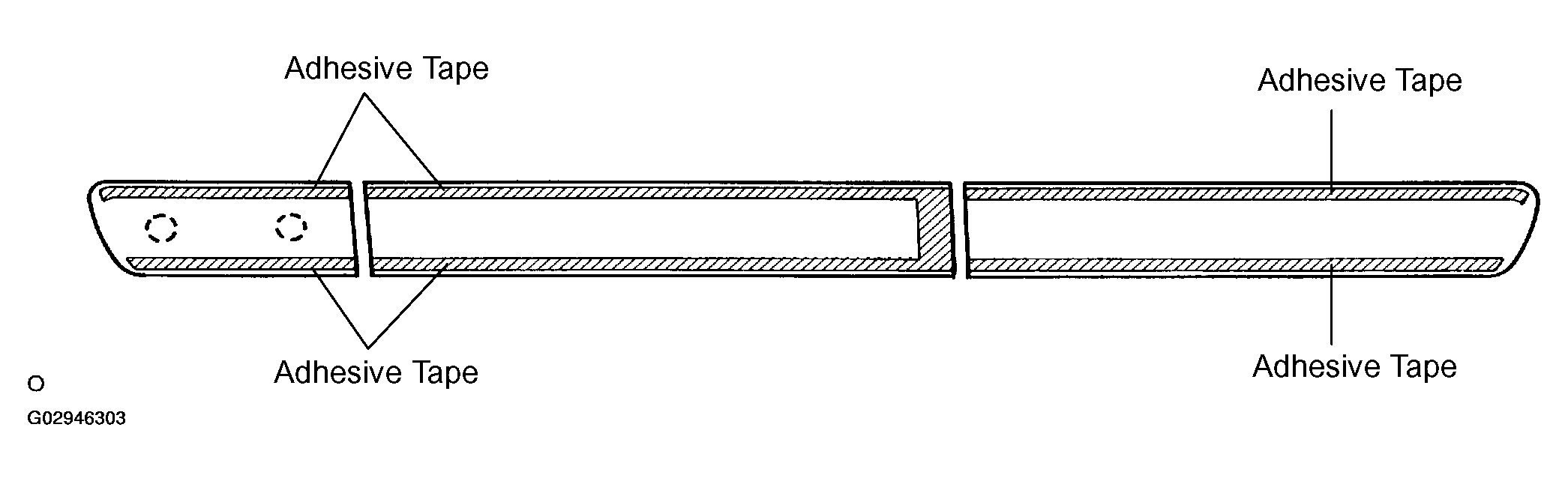

  Fig 3: Identifying Adhesive Tape
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL MOULDING
1. Using a heat light, heat the body and moulding.
  Body: 40-60 °C (104-140 °F)

  Moulding: 20-30 °C (68-86 °F)

  NOTE: Do not heat the moulding excessively.
2. Lift the moulding release sheet from face of the moulding.
  NOTE: Before installing the moulding release sheet, make sure that there is no dirt or dust can get on the adhesive surface of the moulding.
3. Front fender outside moulding:
  Align the bosses with their corresponding holes in the body, and press firmly on the moulding.
NOTE: Do not apply excessive force on to the moulding, but steady pressure with thumbs.

Fig 4: Lifting Moulding Release Sheet From Face Moulding
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
