Wireless Door Lock Control System: Location

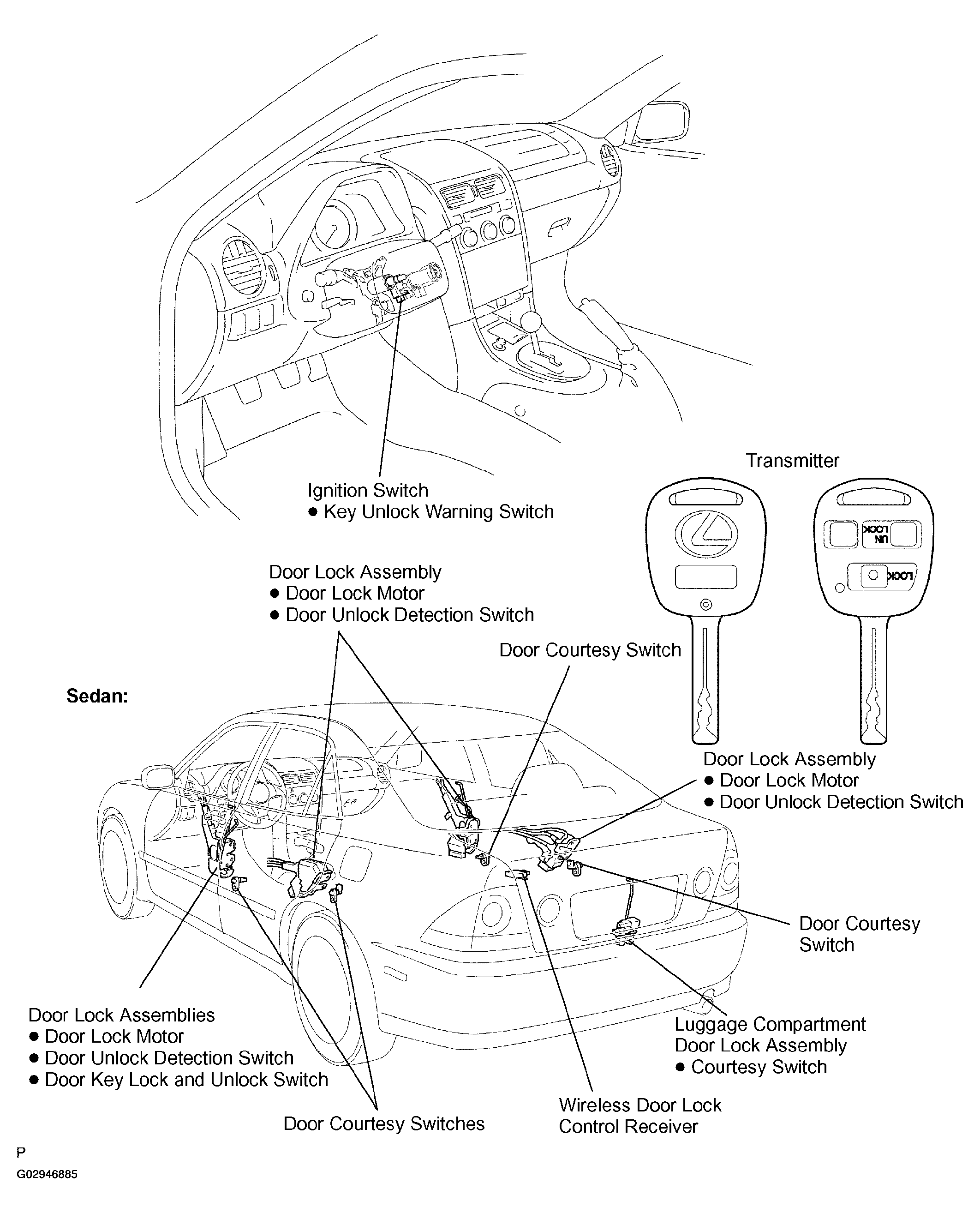

Fig 1: Identifying Wireless Door Lock Control System Components & Replacements Location (1 Of 2)
G02946885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

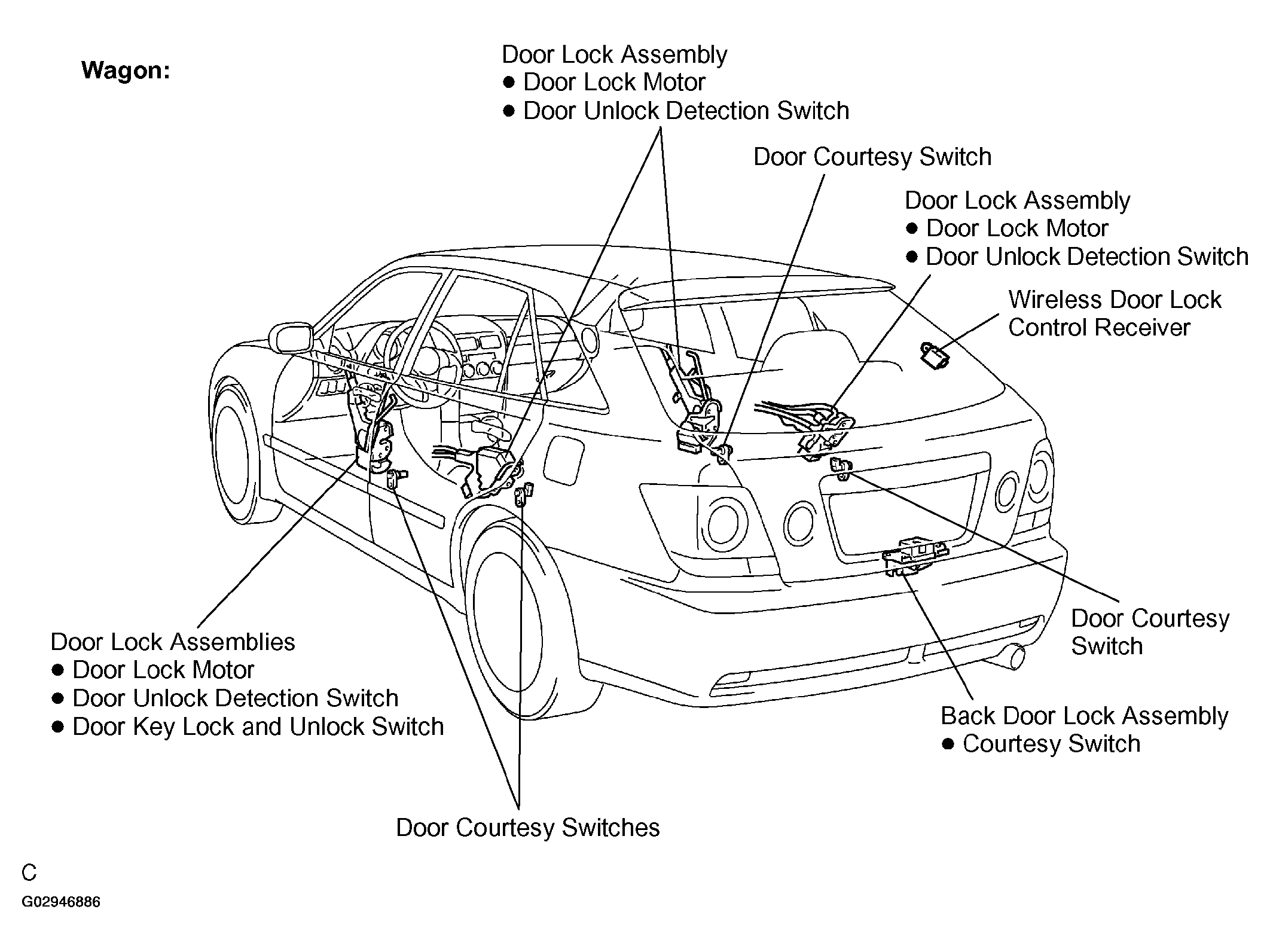

Fig 2: Identifying Wireless Door Lock Control System Components & Replacements Location (2 Of 2)
G02946886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
