Engine Immobilizer System: Location

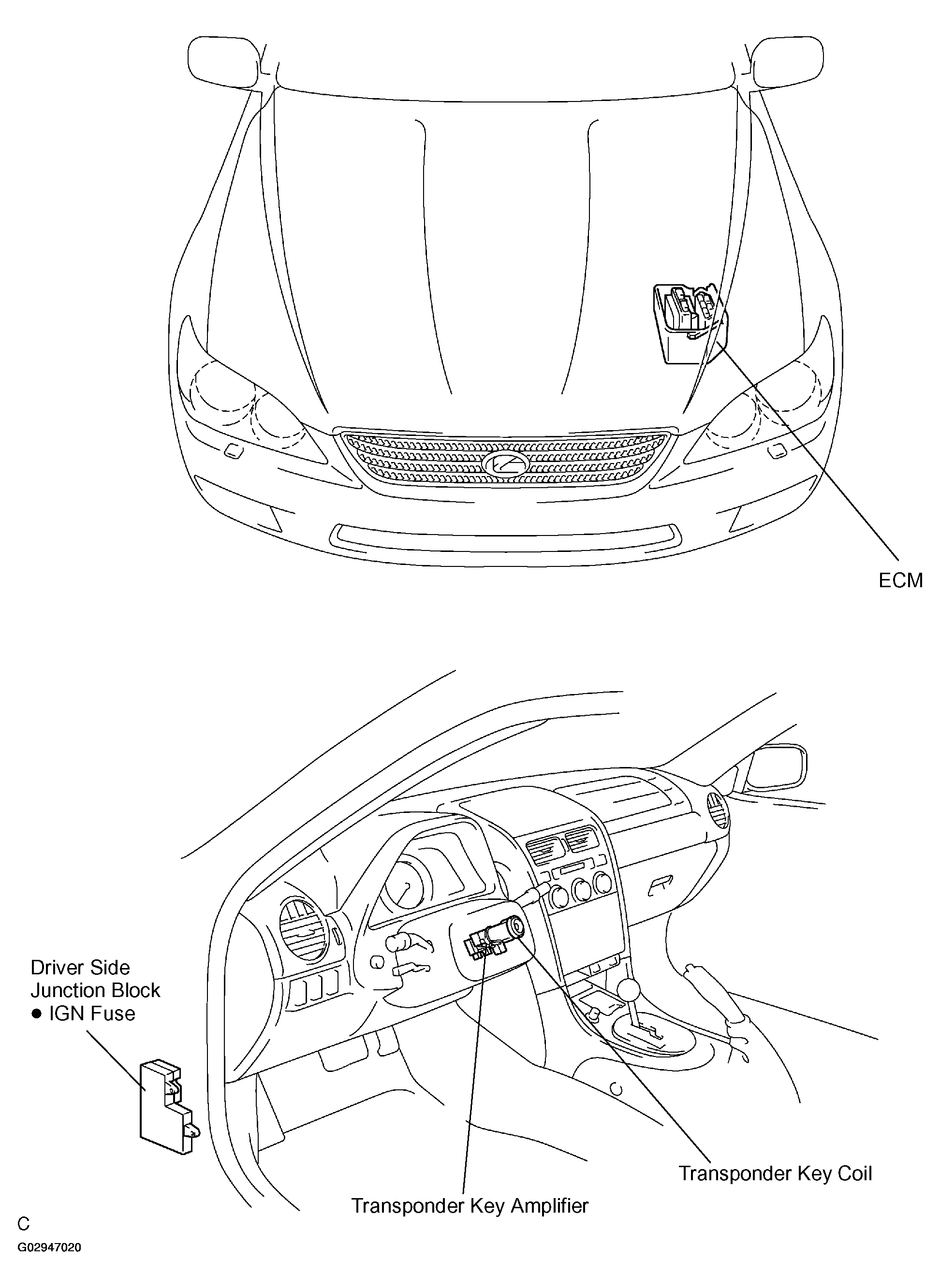

Fig 1: Identifying Engine Immobilizer System Components And Replacements Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
