Home >> Lexus >> 2005 >> IS 300 Base, Standard >> Repair and Diagnosis >> Accessories & Equipment >> Headlights >> Headlight Beam Level Control System >> Location

Headlight Beam Level Control System: Location

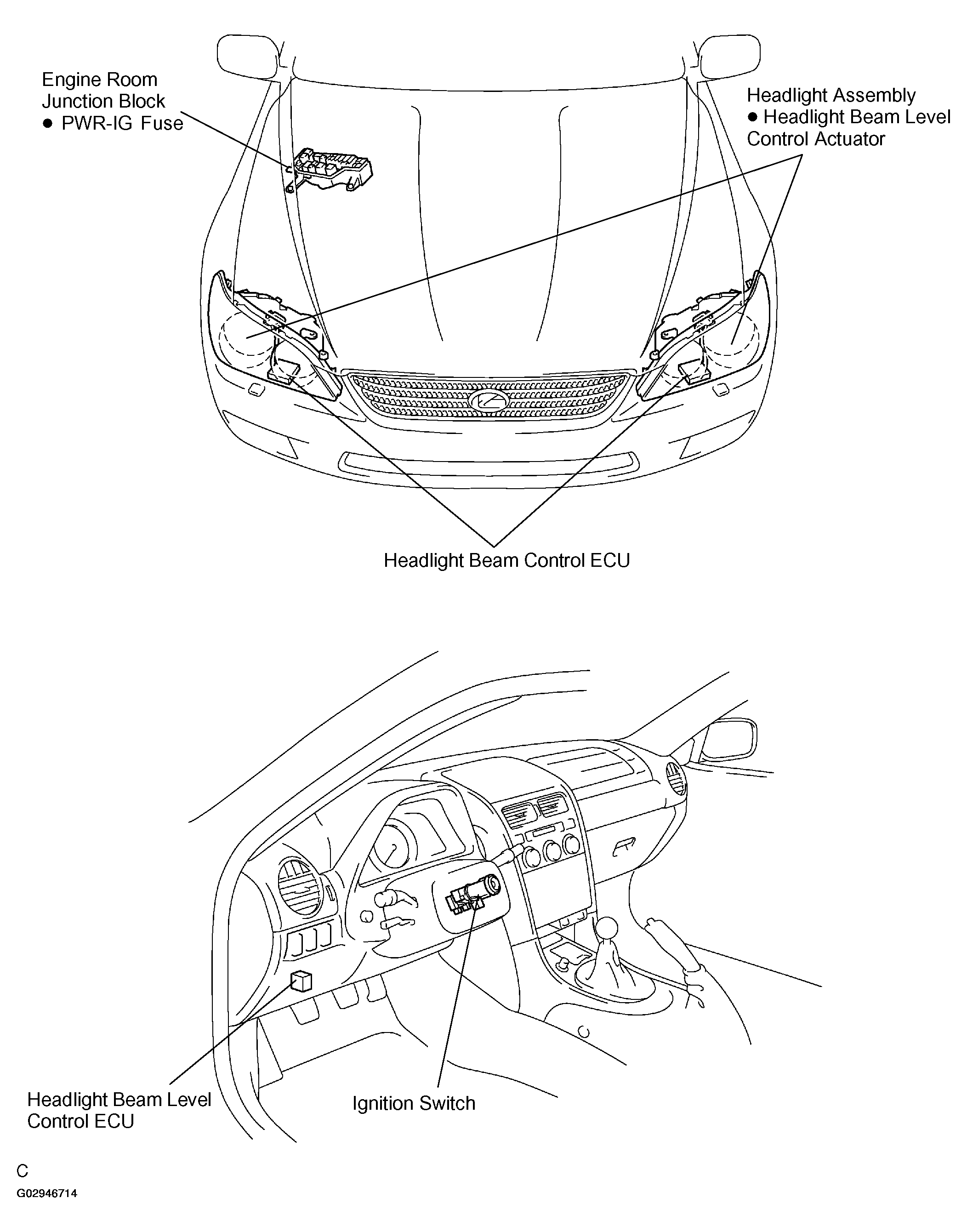

Fig 1: Identifying Headlight Beam Level Control System Components Location (1 Of 2)
G02946714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

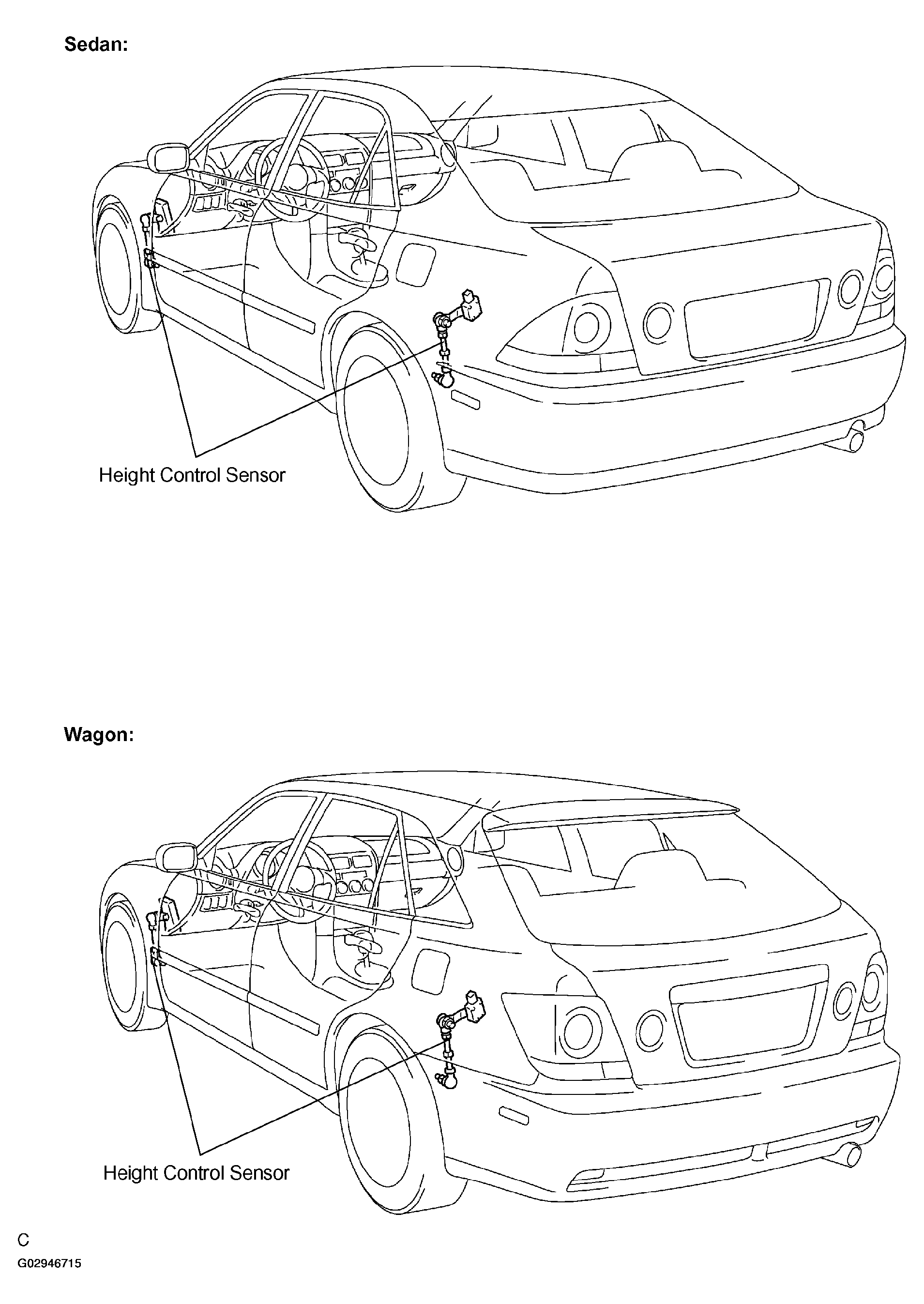

Fig 2: Identifying Headlight Beam Level Control System Components Location (2 Of 2)
G02946715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
