Monitor Description
The ECM uses the heated oxygen sensor information to regulate the air-fuel ratio close to a stoichiometric ratio. This maximizes the catalytic converter's ability to purify the exhaust gas. The sensor detects oxygen levels in the exhaust gas and sends this signal to the ECM.
The inner surface of the sensor element is exposed to outside air. The outer surface of the sensor element is exposed to exhaust gas. The sensor element is made of platinum coated zirconia and includes an integrated heating element. The heated oxygen sensor has the characteristic whereby its output voltage changes suddenly in the vicinity of the stoichiometric air-fuel ratio. The heated oxygen sensor generates waveforms of a voltage between 0V and 1V in response to the oxygen concentration in exhaust gas. When the output voltage of the heated oxygen sensor is 0.55V or more, the ECM judges that the air-fuel ratio is RICH. When it is 0.40V or less, the ECM judges that the air-fuel ratio is LEAN.

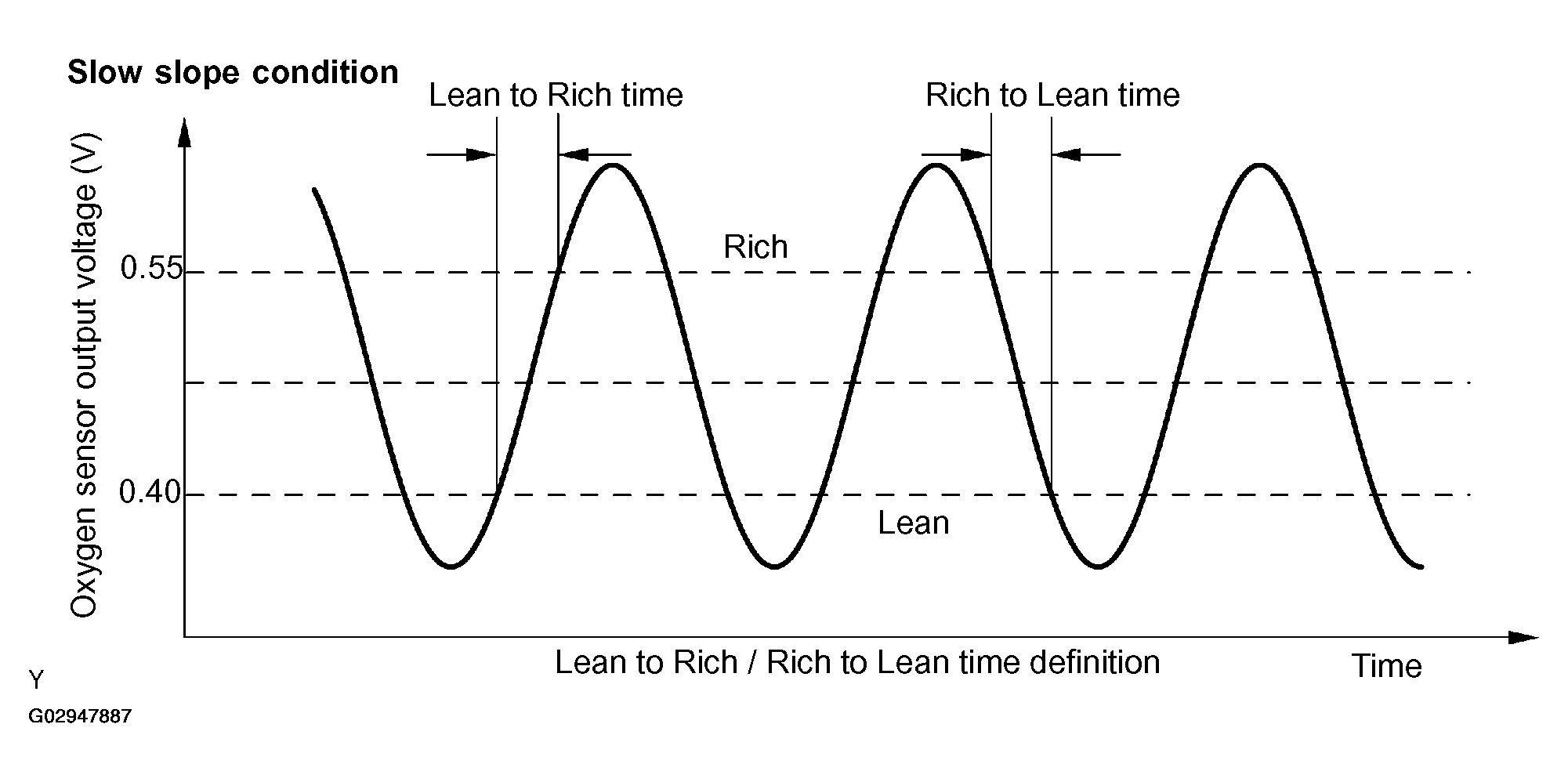

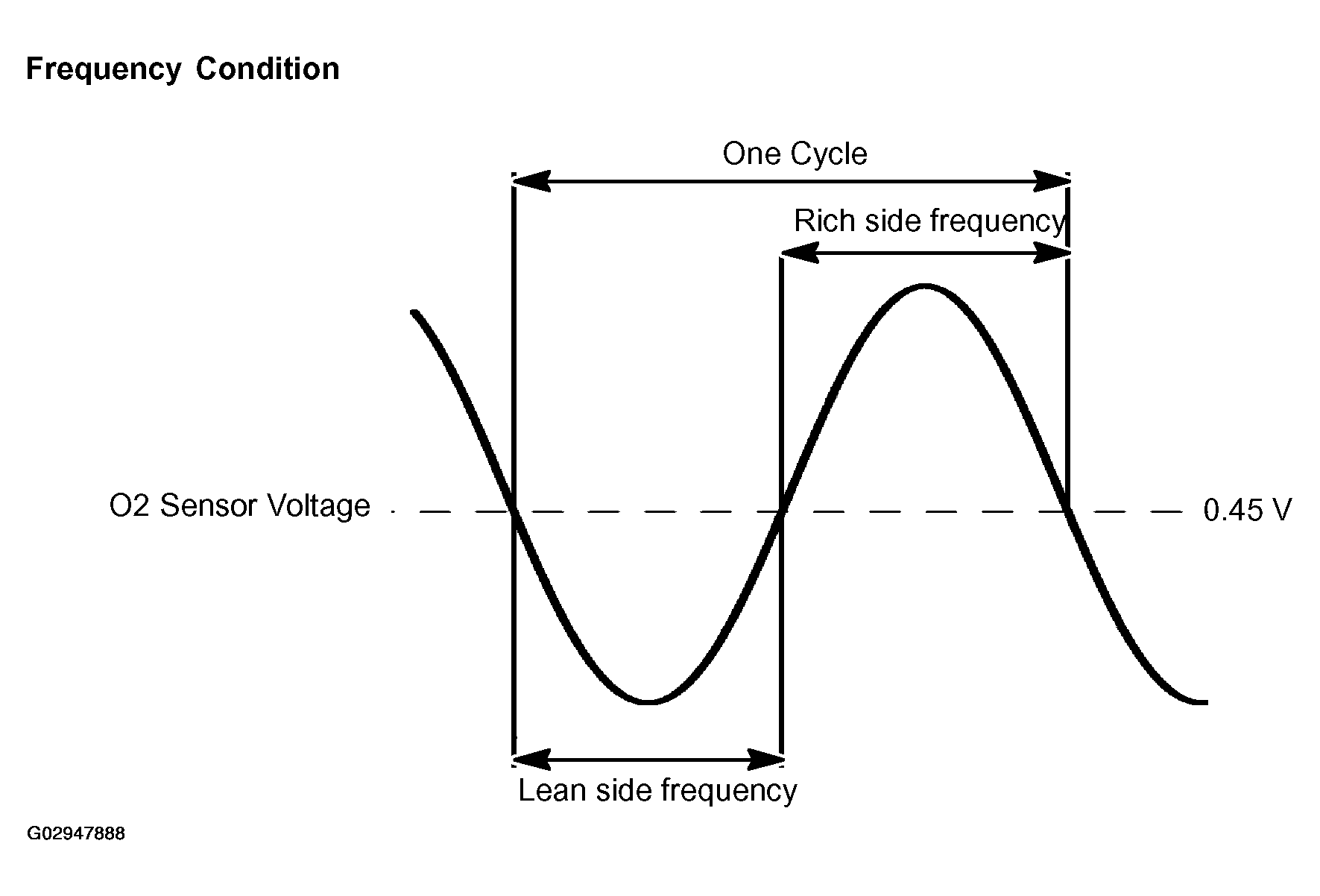

The ECM monitors the response feature of the heated oxygen sensor. If the response time of the heated oxygen sensor output status change from RICH to LEAN or vice versa becomes longer, the ECM interprets this as a malfunction in the heated oxygen sensor and sets a DTC.
