Home >> Lexus >> 2005 >> IS 300 Base, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission - Diagnostics >> Parts Location

Parts Location

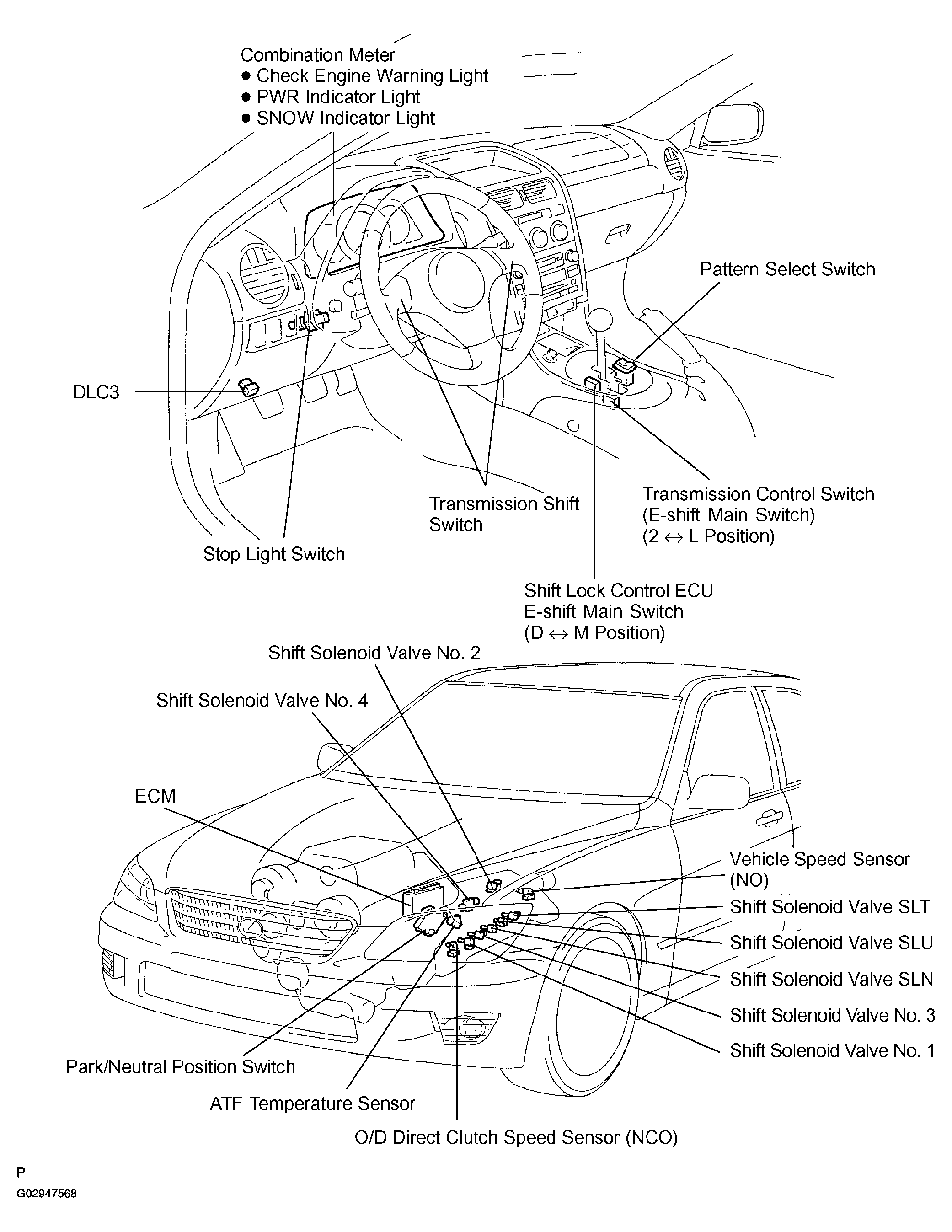

Fig 1: Locating Automatic Transmission

G02947568

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
