Automatic Transmission System: Operation

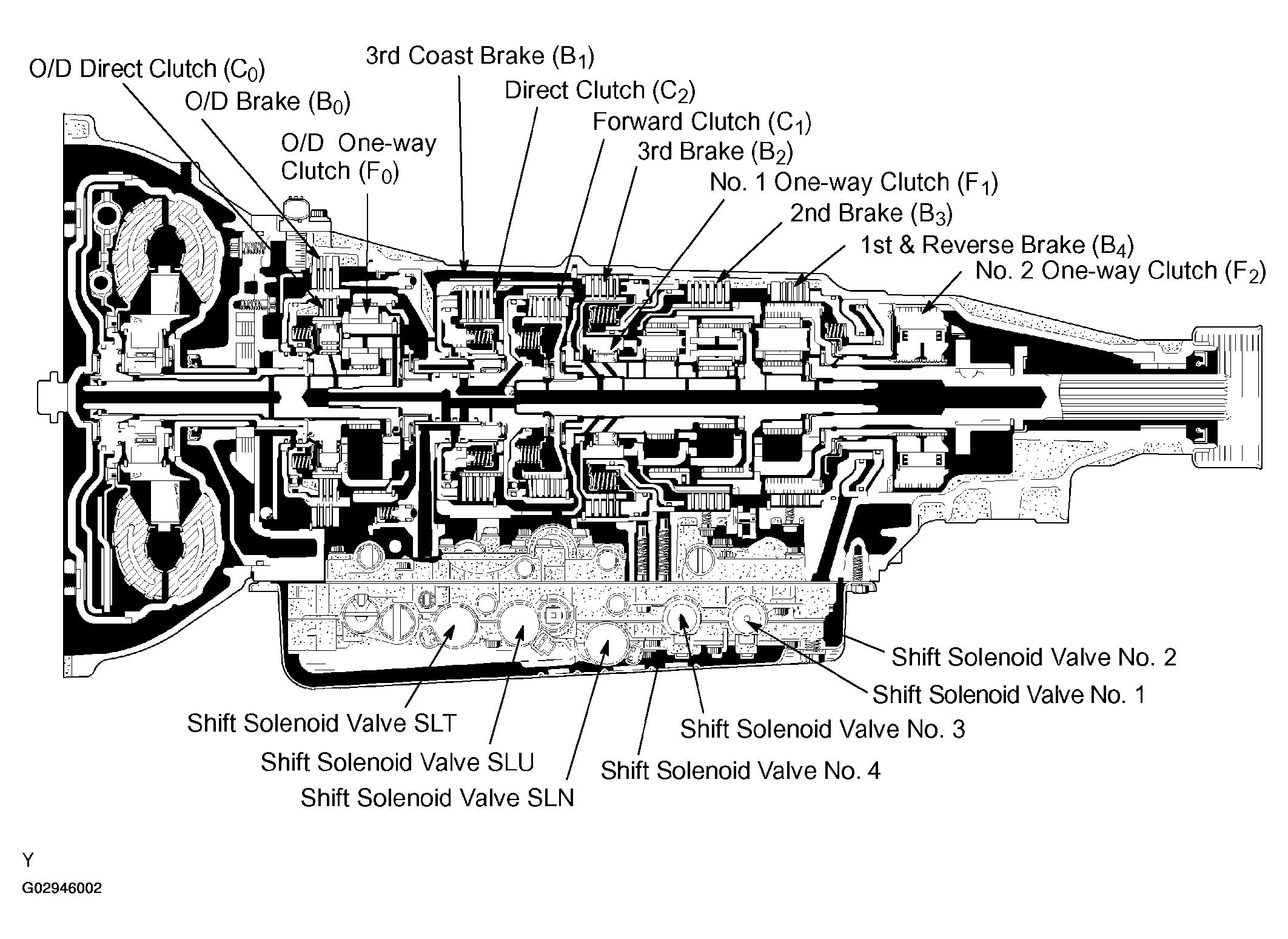

Fig 1: Cross Sectional View Of Automatic Transmission
G02946002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

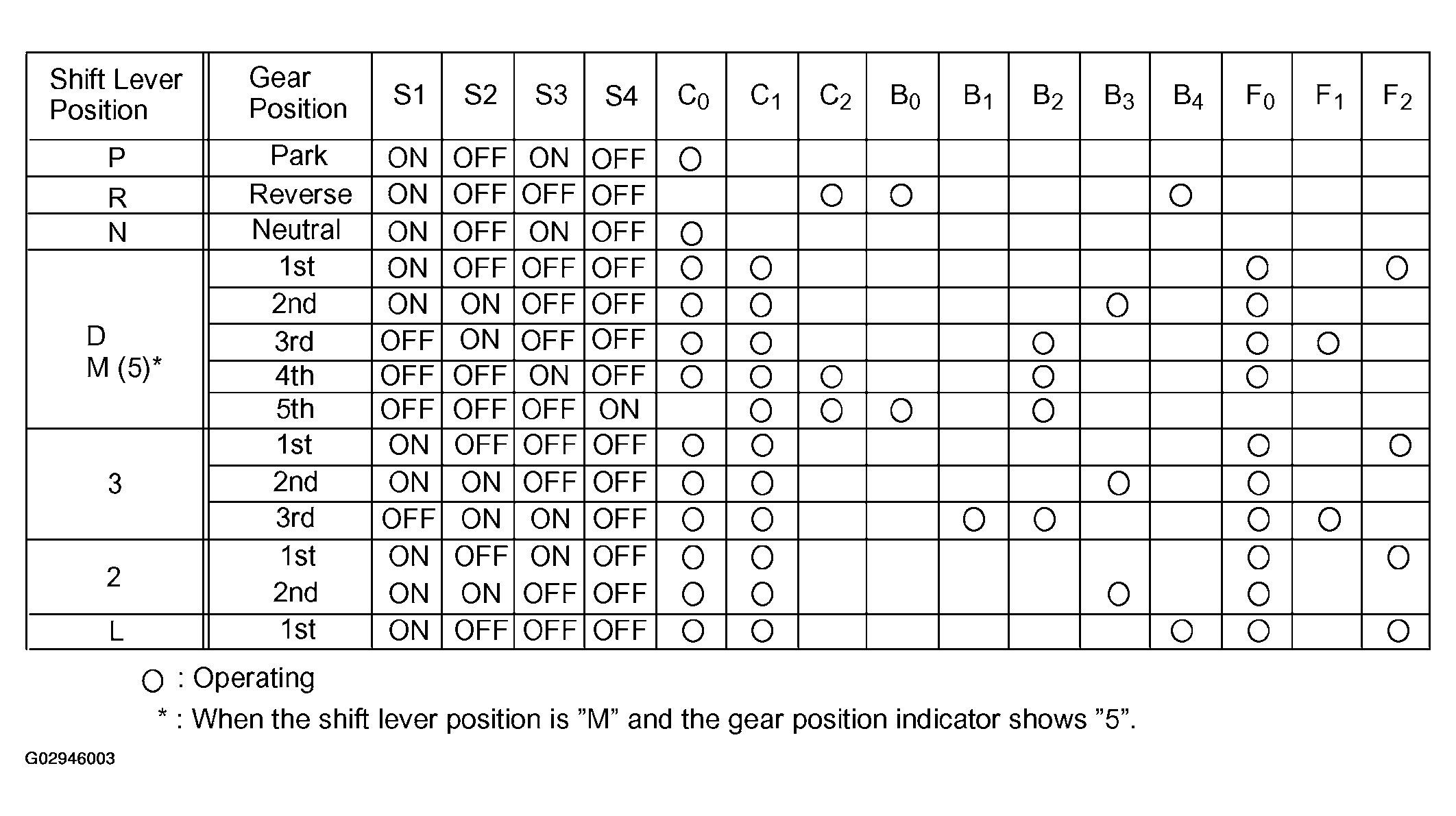

Fig 2: Shift Solenoid Valve Operating Chart
G02946003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
