Rear Stabilizer Bar: Installation

HINT:

• Install the bushing to the outside of the paint line on the stabilizer bar.
• Install the bushing to the stabilizer bar so that the cutout of the bushing faces the rear of the vehicle, as shown in the illustration.

Fig 1: Installing Bushing To Outside Of Paint Line On Stabilizer Bar

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the stabilizer bar to the body with the 4 bolts.
   1. Torque: 18 N.m (185 kgf.cm, 13 ft.lbf)
2. Install the 2 stabilizer bar links with the 2 bolts and 4 nuts.
   1. Torque:
   2. Bolt: 30 N.m (305 kgf.cm, 22 ft.lbf)
   3. Nut: 65 N.m (663 kgf.cm, 48 ft.lbf)

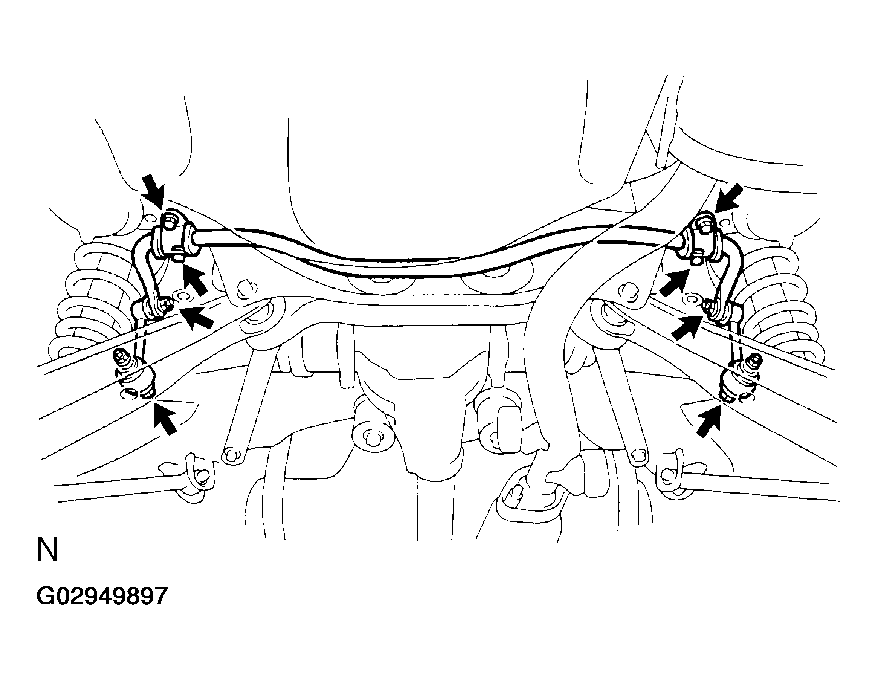

   Fig 2: Installing Stabilizer Bar Links With Bolts And Nuts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

If the ball joint turns together with the nut, use a hexagon wrench (5 mm) to hold the stud.
