Rear Drive Shaft: Components

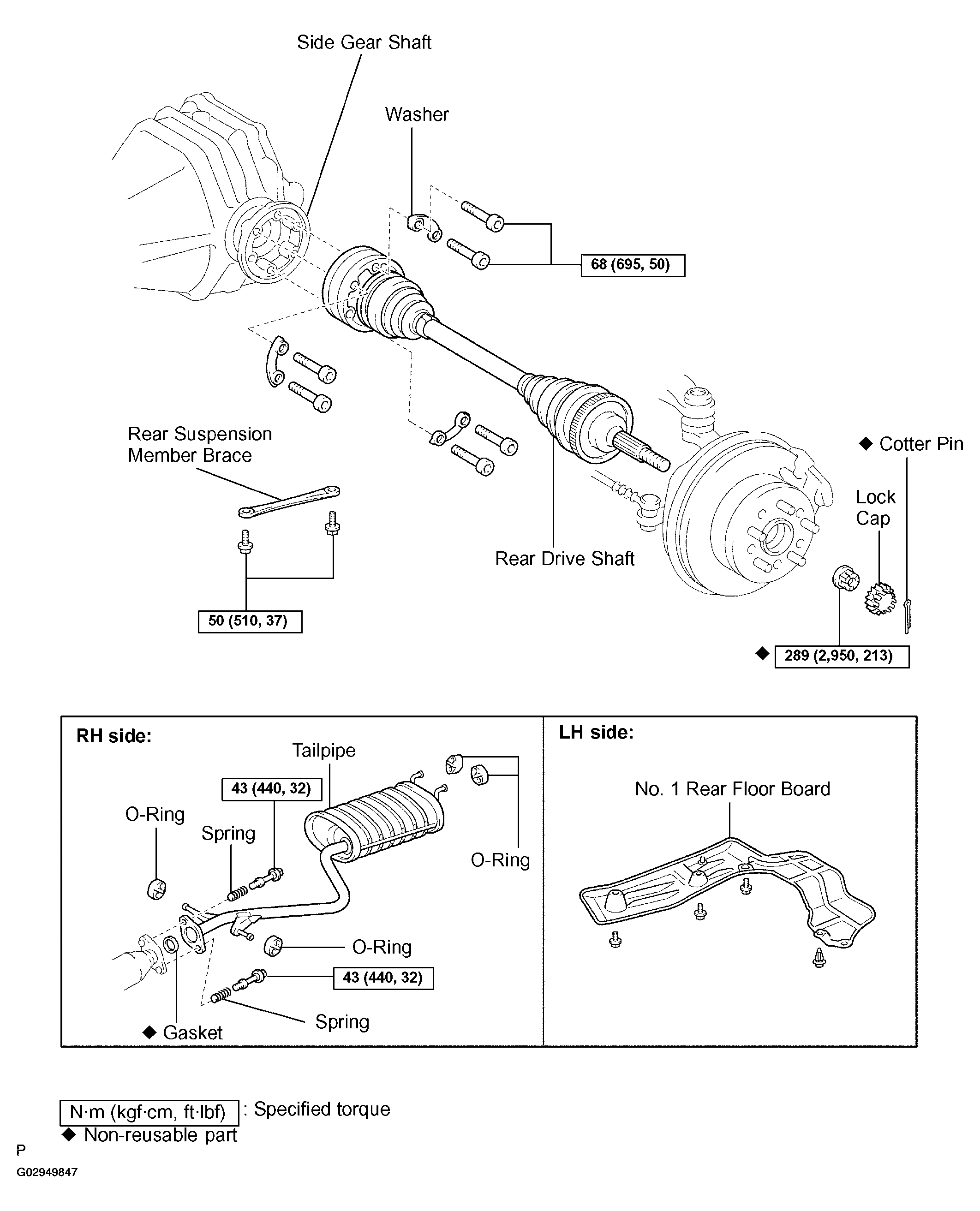

Fig 1: Exploded View Of Rear Drive Shaft Components With Torque Specifications (1 Of 2)
G02949847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

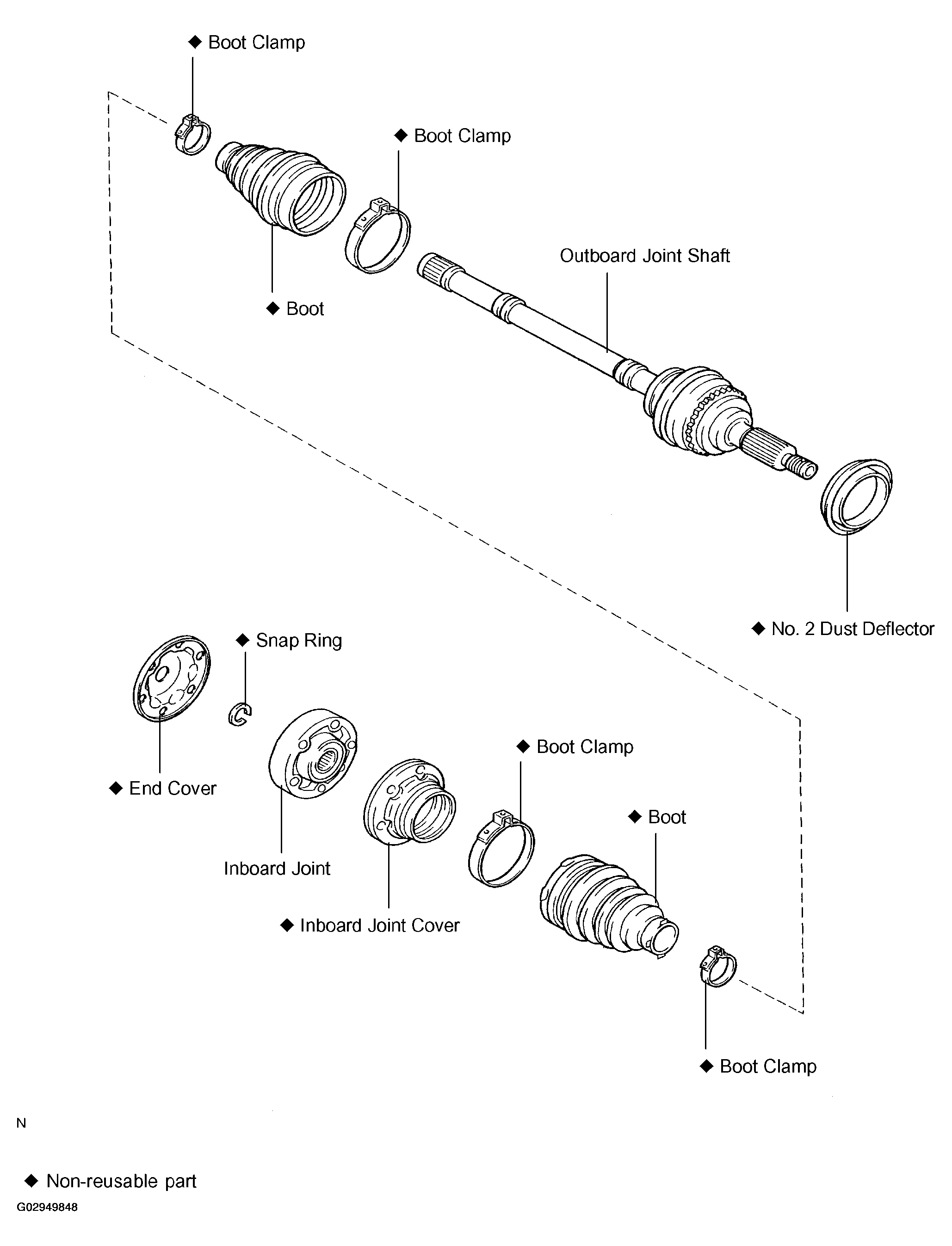

Fig 2: Exploded View Of Rear Drive Shaft Components With Torque Specifications (2 Of 2)
G02949848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
