Rear Axle Carrier: Components

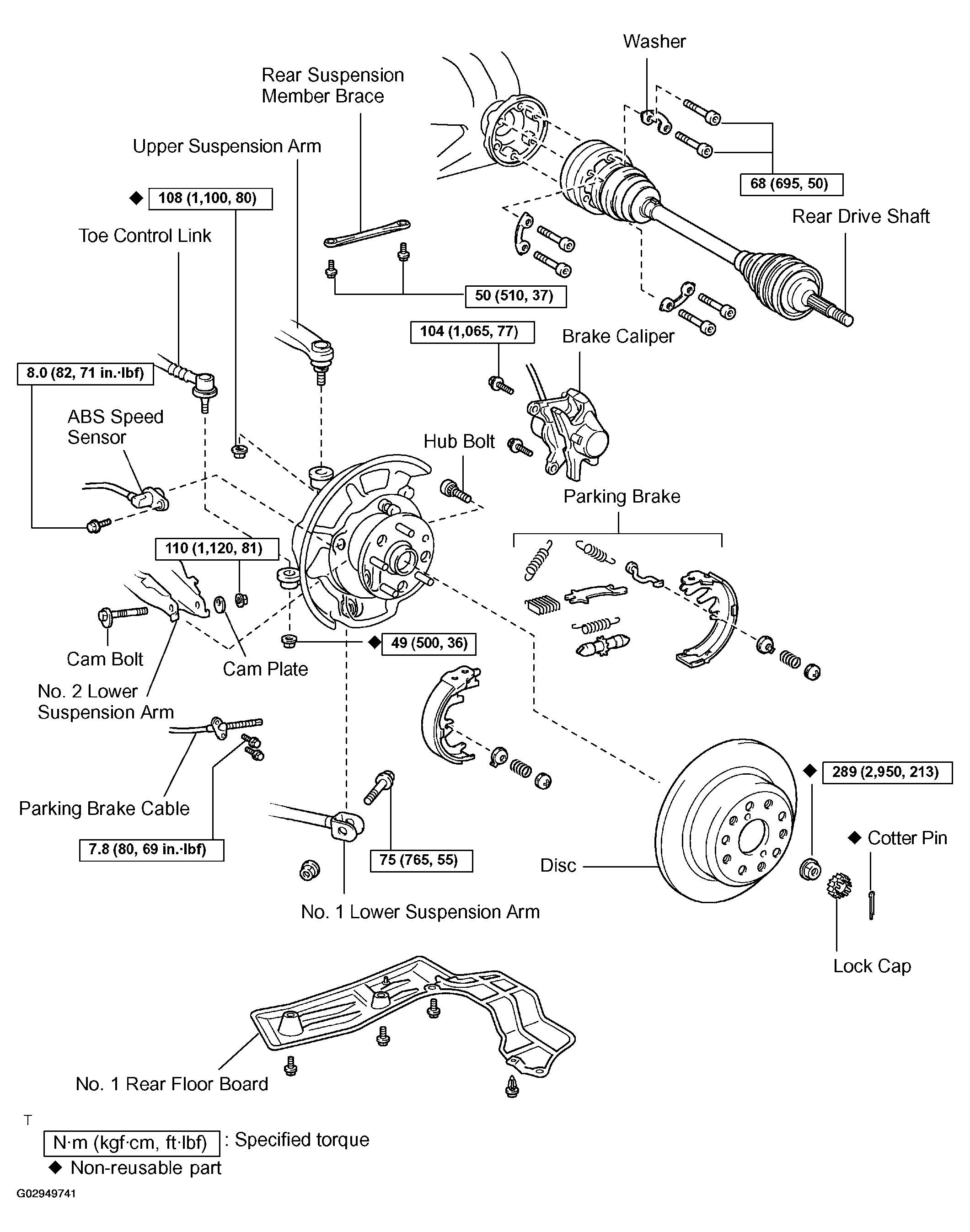

Fig 1: Exploded View Of Rear Axle Carrier Components With Torque Specifications (1 Of 2)
G02949741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

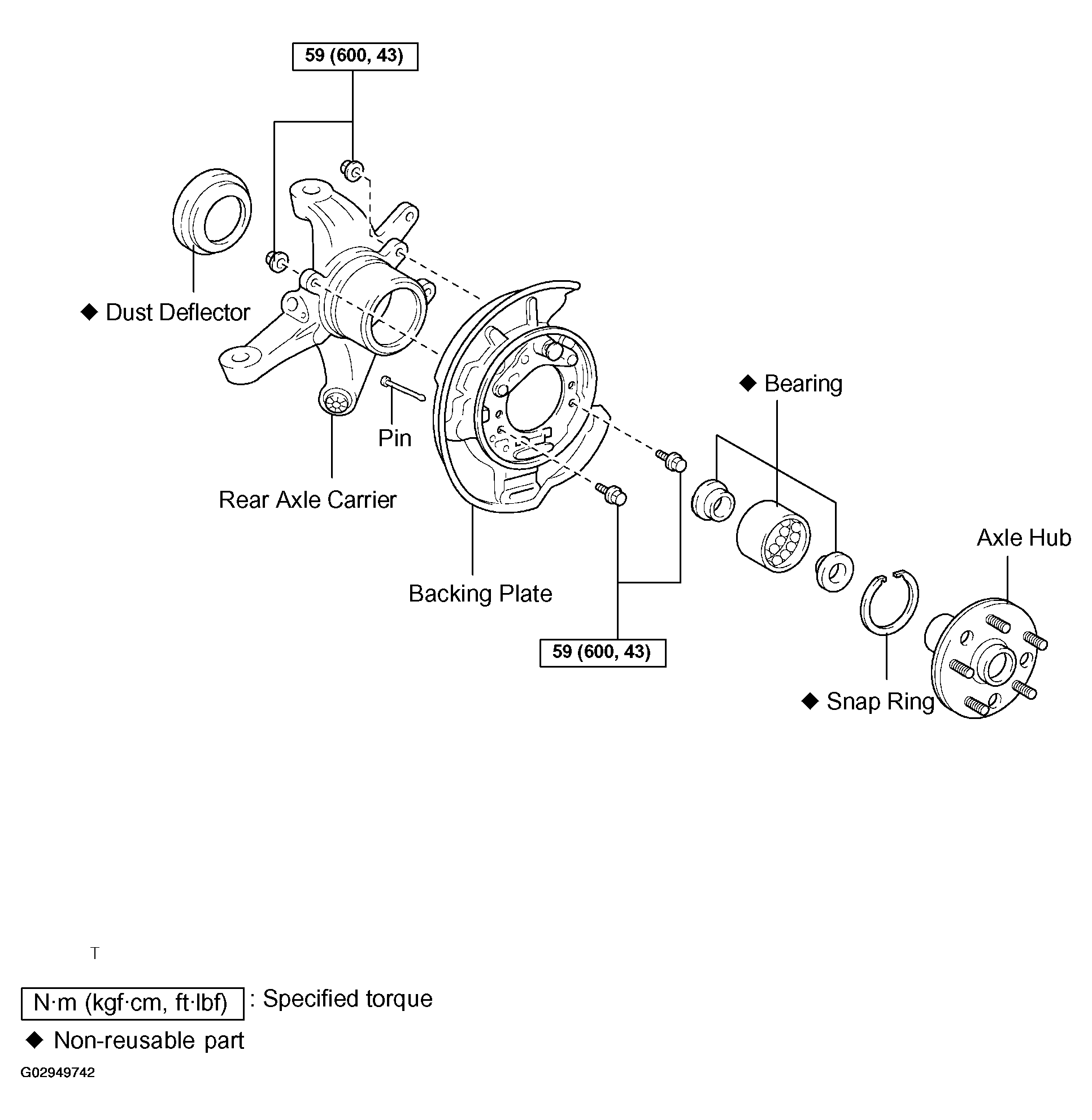

Fig 2: Exploded View Of Rear Axle Carrier Components With Torque Specifications (2 Of 2)
G02949742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
