Front Wheel Hub Bolt: Replacement

1. Remove the 2 bolts and brake caliper from the steering knuckle.

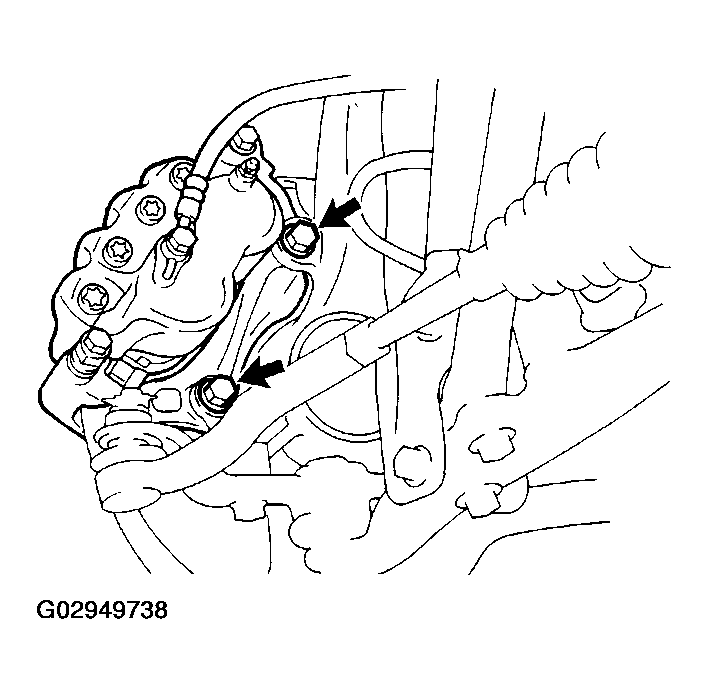

Fig 1: Removing Bolts And Brake Caliper From Steering Knuckle
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Support the brake caliper securely.
3. Remove the disc.

Using SST and a brass bar or an equivalent to hold, remove the hub bolt.

1. SST 09628-10011

Fig 2: Using SST And Brass Bar Or An Equivalent To Hold And Remove Hub Bolt

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install a washer and nut to a new hub bolt, as shown in the illustration.
2. Using a brass bar or an equivalent to hold, install the hub bolt by torquing the nut.

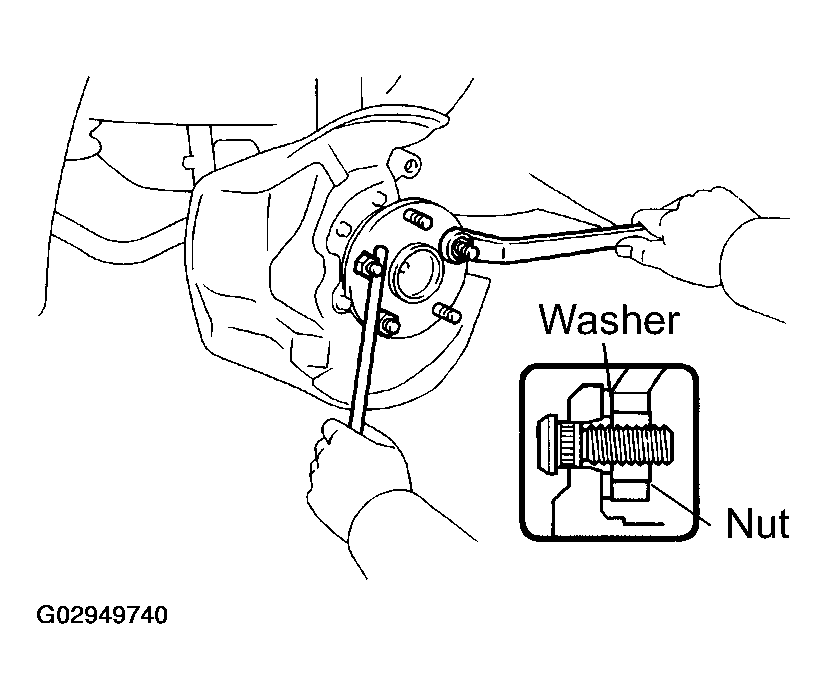

Fig 3: Installing Washer And Nut To New Hub Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the disc.
2. Install the brake caliper and 2 bolts to the steering knuckle.
   1. Torque: 118 N.m (1,200 kgf.cm, 87 ft.lbf)

1. Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)
