Home >> Lexus >> 2005 >> IS 300 Base, Automatic >> Repair and Diagnosis >> Suspension >> Wheel Alignment >> Suspension And Axle >> Front Upper Suspension Arm >> Components

Front Upper Suspension Arm: Components

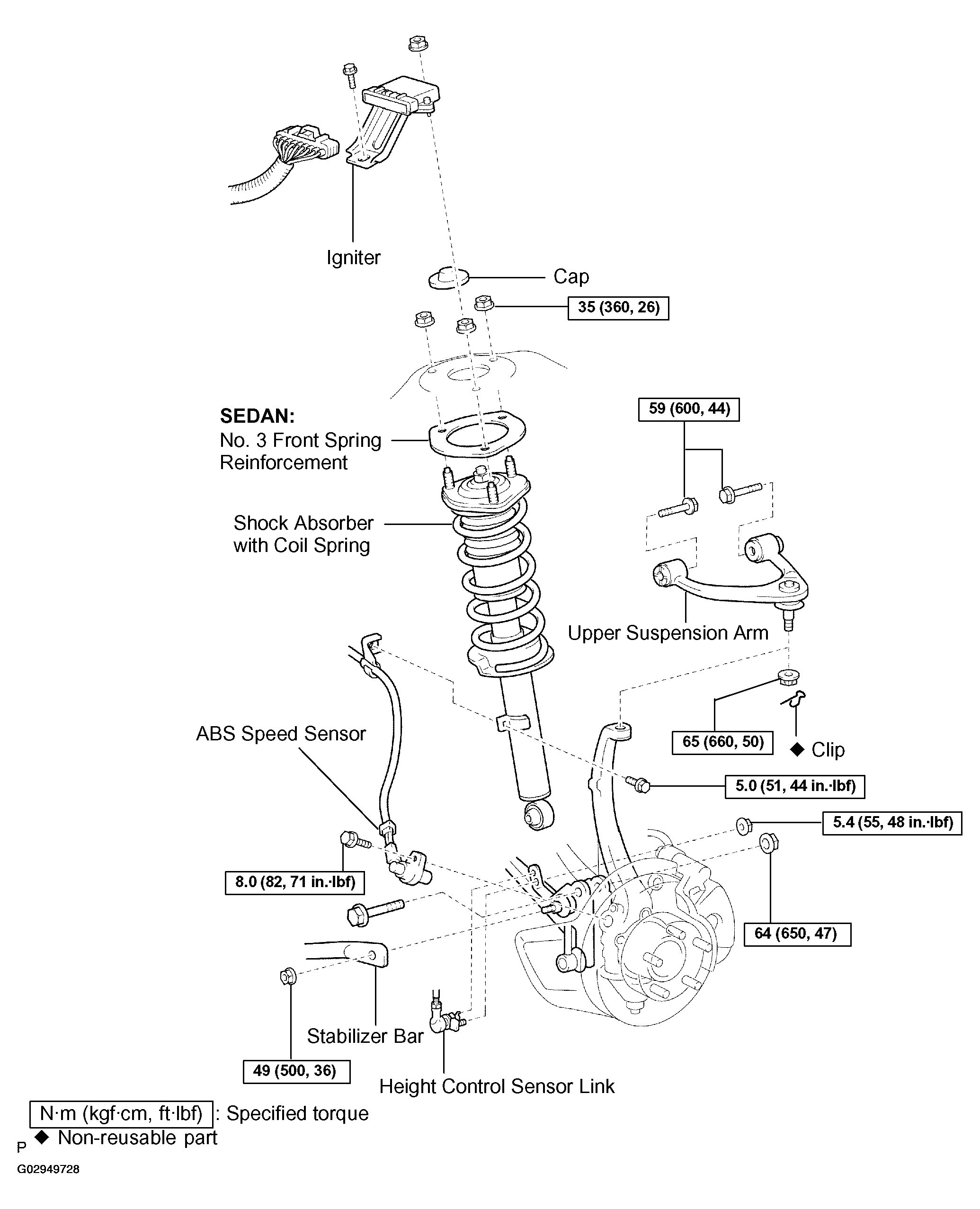

Fig 1: Front Upper Suspension Arm Replacement Components With Torque Specifications

G02949728

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
