Front Stabilizer Bar: Removal

  1. REMOVE ENGINE UNDER COVER
  2. REMOVE RH AND LH STABILIZER BAR LINKS
    1. Remove the 2 nuts and stabilizer bar link.

      HINT:

      If the ball joint turns together with the nut, use a hexagon wrench (5 mm) to hold the stud.

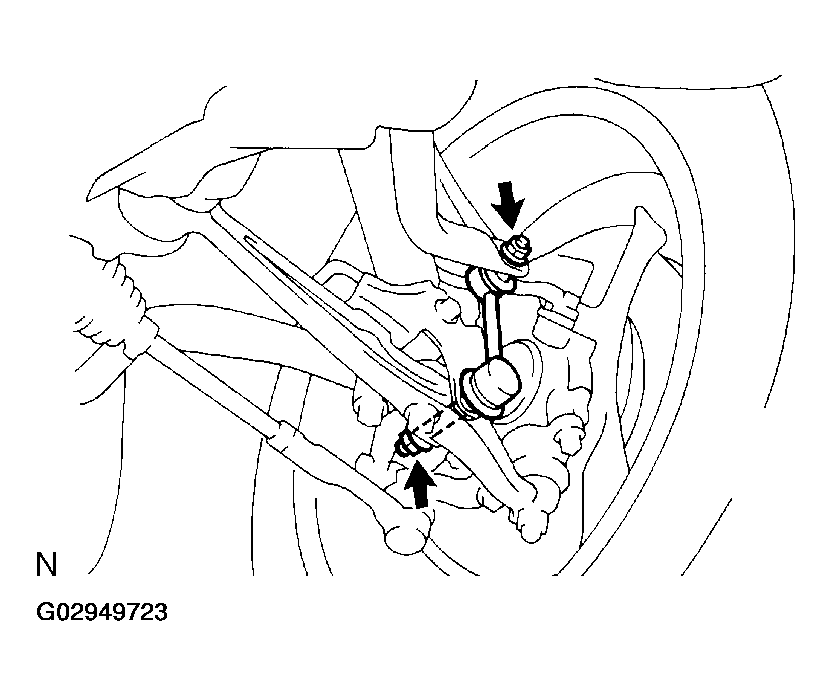

      Fig 1: Removing Nuts And Stabilizer Bar Link
      G02949723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Employ the same manner described above to the other side.
  3. REMOVE STABILIZER BAR

    Remove the 4 bolts and stabilizer bar.

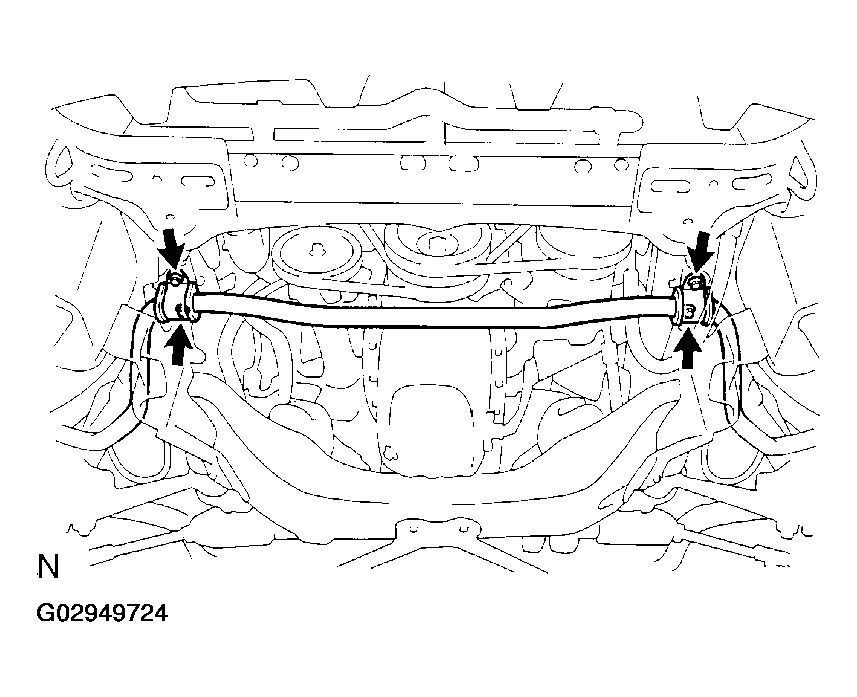

    Fig 2: Removing Bolts And Stabilizer Bar
    G02949724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE 2 BRACKETS AND BUSHINGS FROM STABILIZER BAR
