Clutch Unit: Components

WARNING: This page is about a different variant/trim than selected.

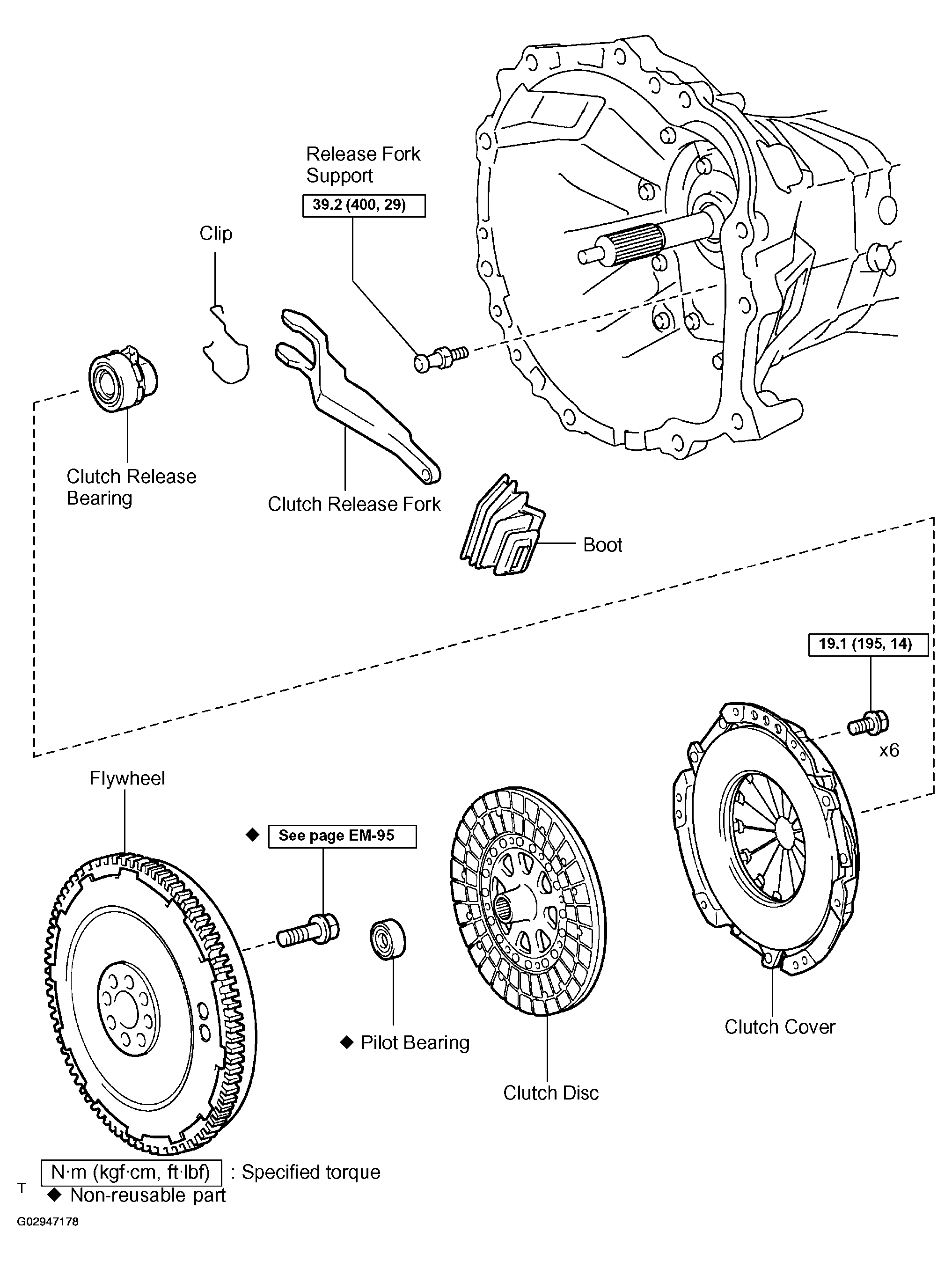

Fig 1: Exploded View Of Clutch Unit With Torque Specifications
G02947178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
