VSV For Acoustic Control Induction System (ACIS): Inspection

Remove the 4 nuts and engine cover.

1. Remove the 2 nuts, and disconnect the vacuum tank from the intake manifold.

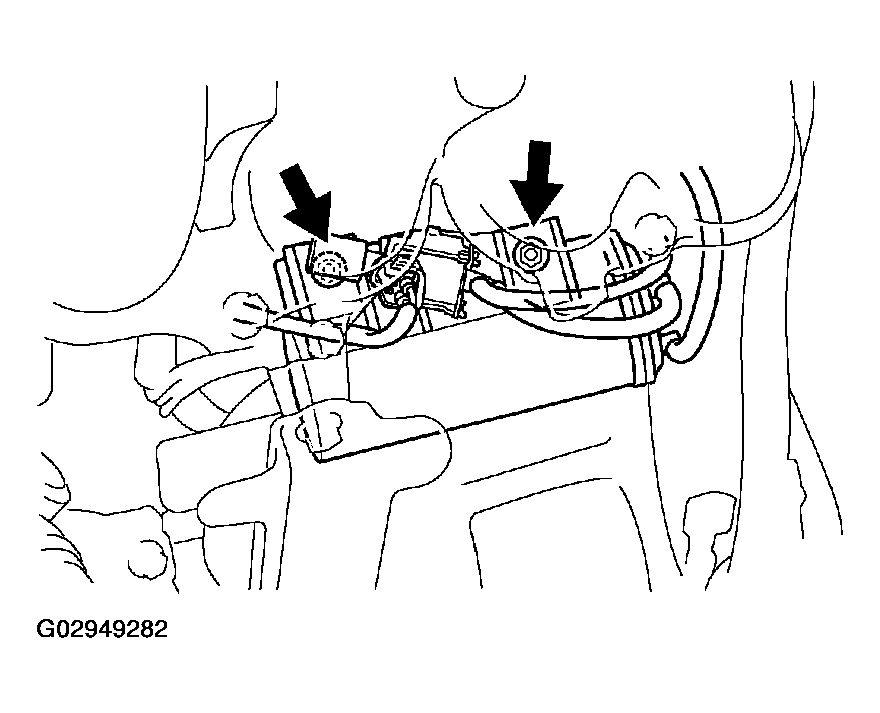

   Fig 1: Removing Nuts And Disconnecting Vacuum Tank From Intake Manifold

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect VSV connector and vacuum hoses, and remove the vacuum control valve set. 4.

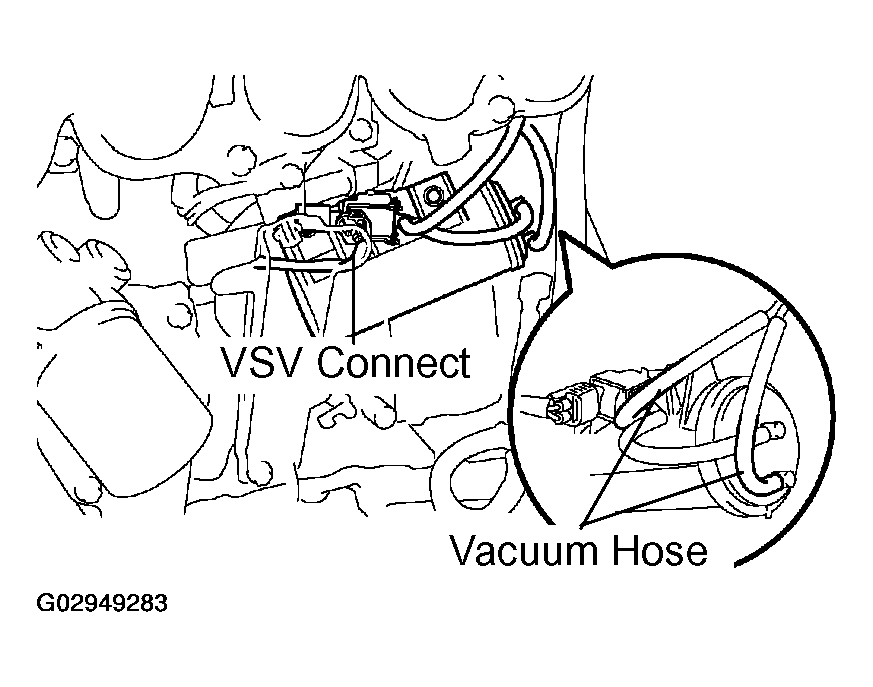

Fig 2: Disconnecting VSV Connector And Vacuum Hoses
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the screw, vacuum hose and VSV.

1. Inspect the VSV for open circuit.

   Using an ohmmeter, check that there is continuity between the terminals.

   Resistance: 38.5-44.5 Ω. at 20°C (68°F)

   If there is no continuity, replace the VSV.

   Fig 3: Checking Continuity Between Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Inspect the VSV for ground.

   Using an ohmmeter, check that there is no continuity between each terminal and the body.

   If there is continuity, replace the VSV.

   Fig 4: Checking There Is No Continuity Between Each Terminal And Body

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Inspect the VSV operation.
   1. Check that air flows from port E to the filter.
      Fig 5: Checking Air Flows From Port E To Filter

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Apply battery positive voltage across the terminals.
   3. Check that air flows from port E to F.
   Fig 6: Checking Air Flows From Port E To F
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the VSV with the screw to the vacuum tank.
2. Install the vacuum hose.

1. Torque: 21 N.m (210 kgf.cm, 15 ft.lbf)

HINT:

Using a new O-ring.

Reinstall the engine cover with the 4 nuts.
