Cylinder Head, Intake Manifold, Exhaust Manifold: Components

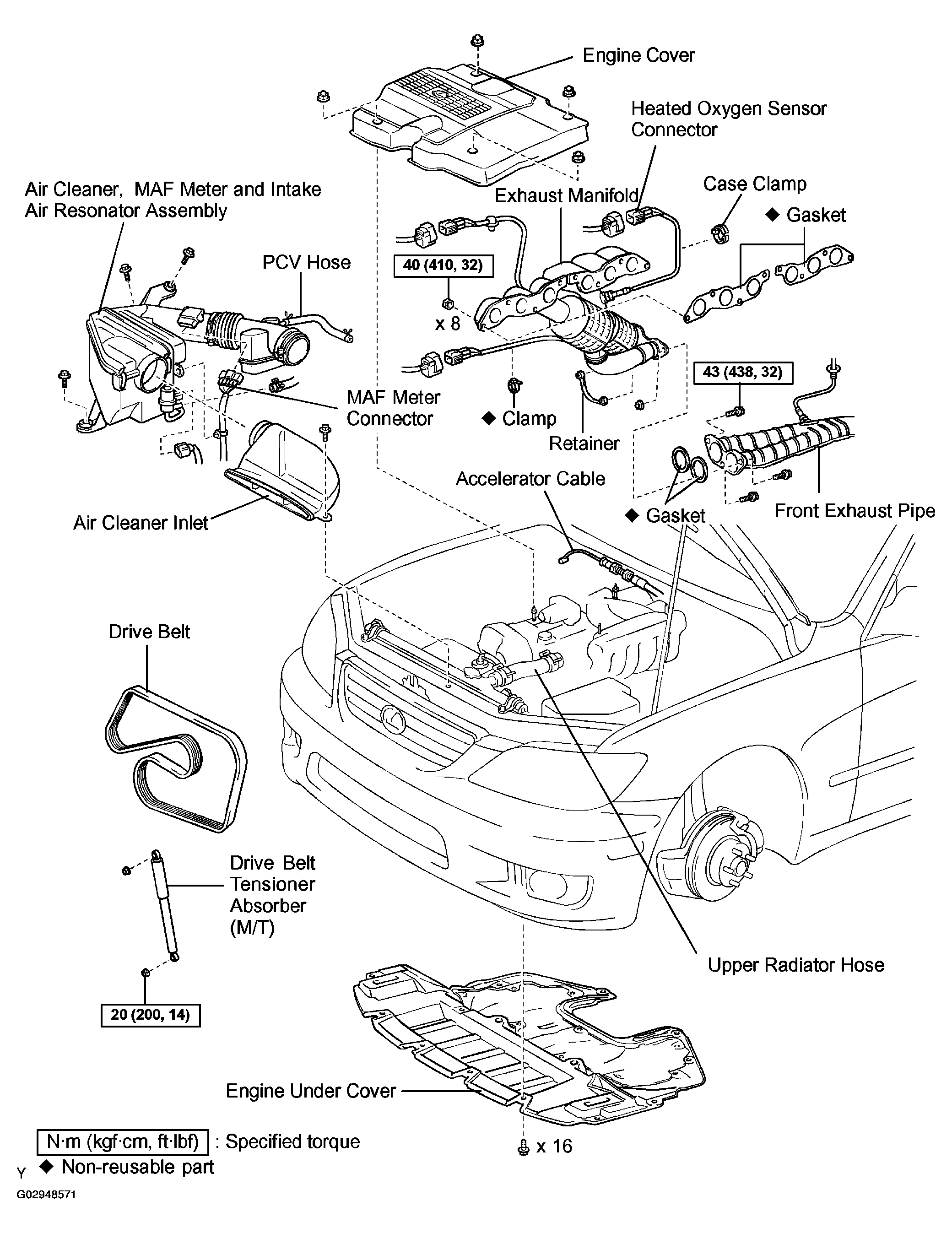

Fig 1: Engine Replacement Components - Cylinder Head With Torque Specifications (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

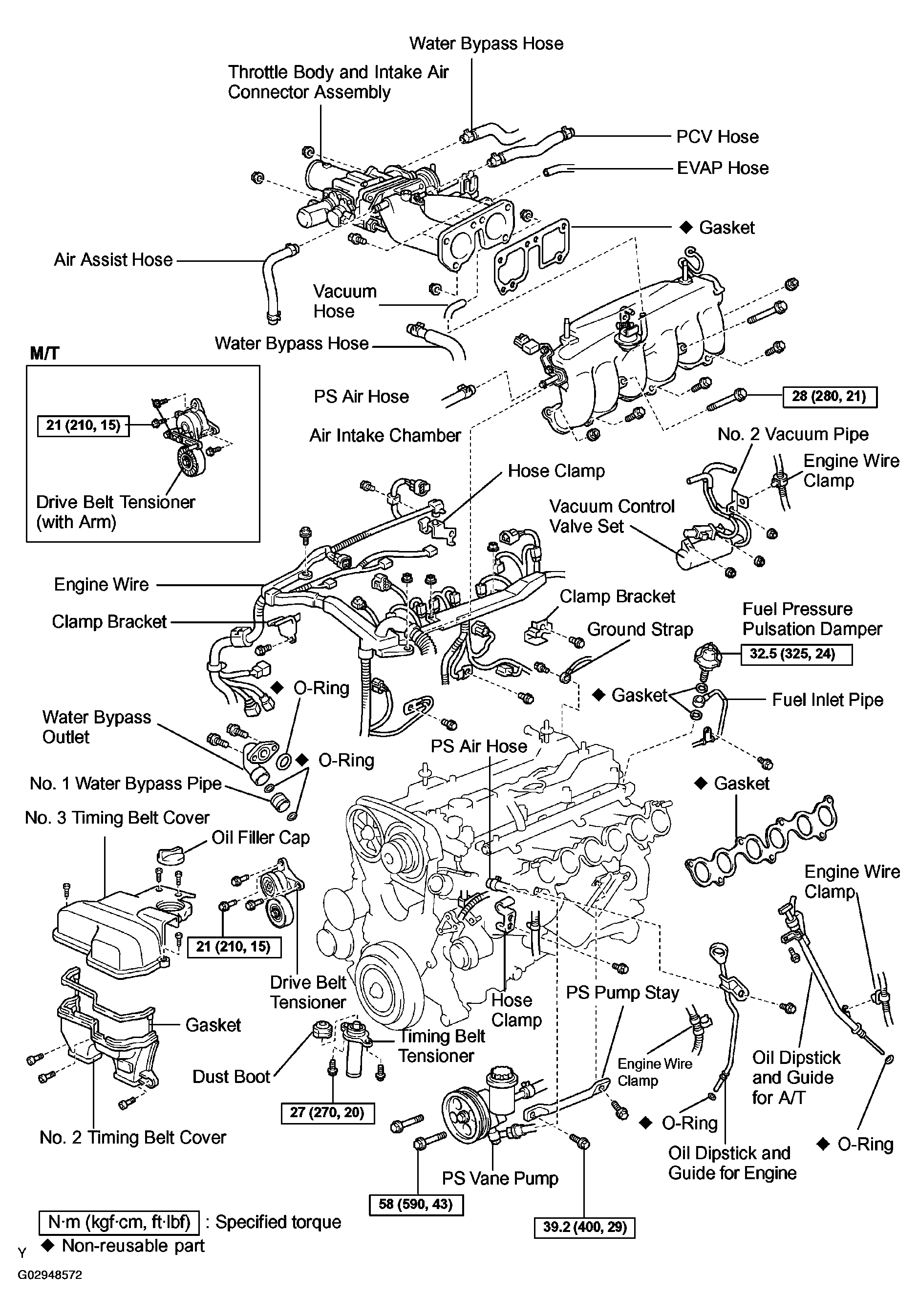

Fig 2: Engine Replacement Components - Cylinder Head With Torque Specifications (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

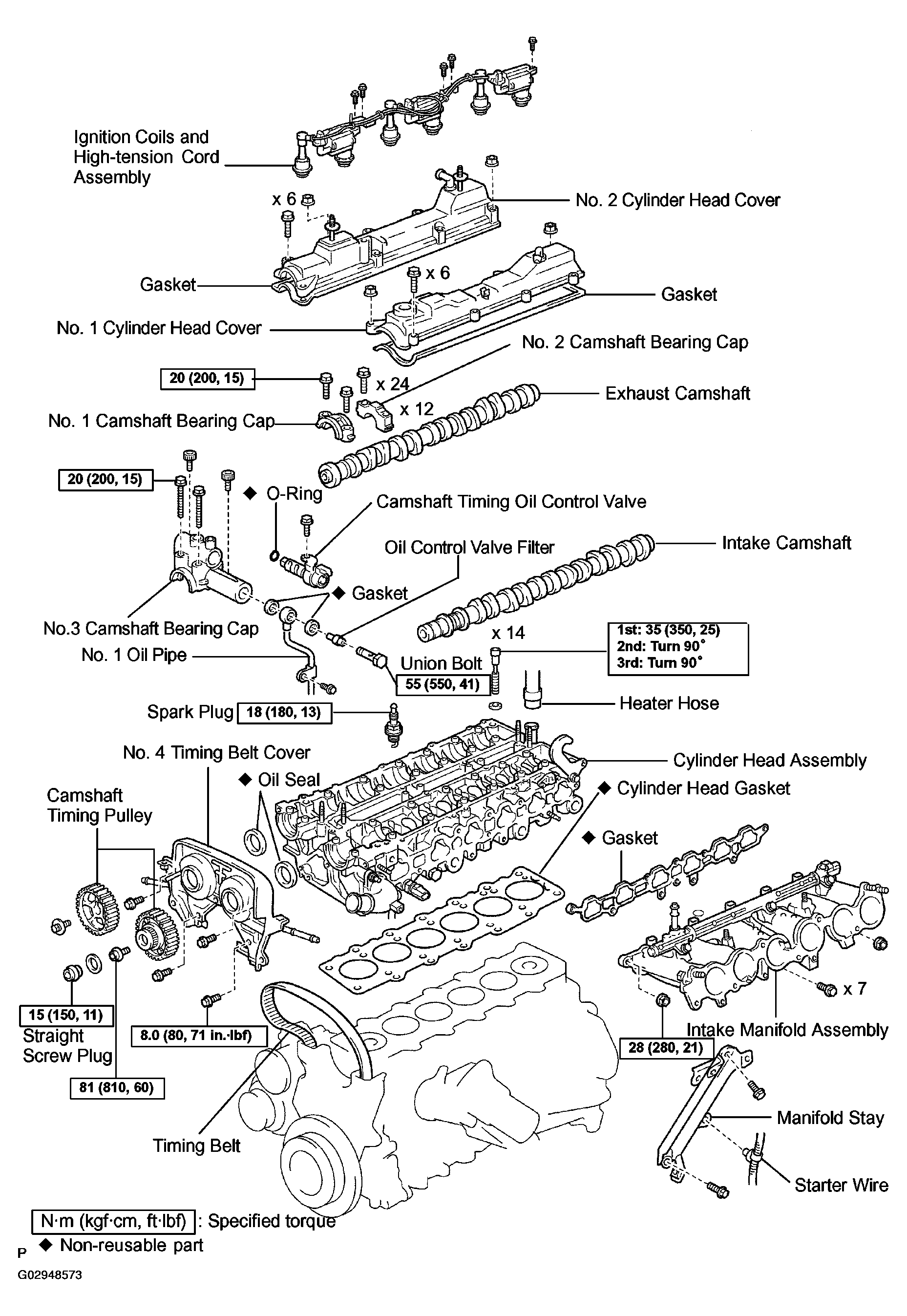

Fig 3: Engine Replacement Components - Cylinder Head With Torque Specifications (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

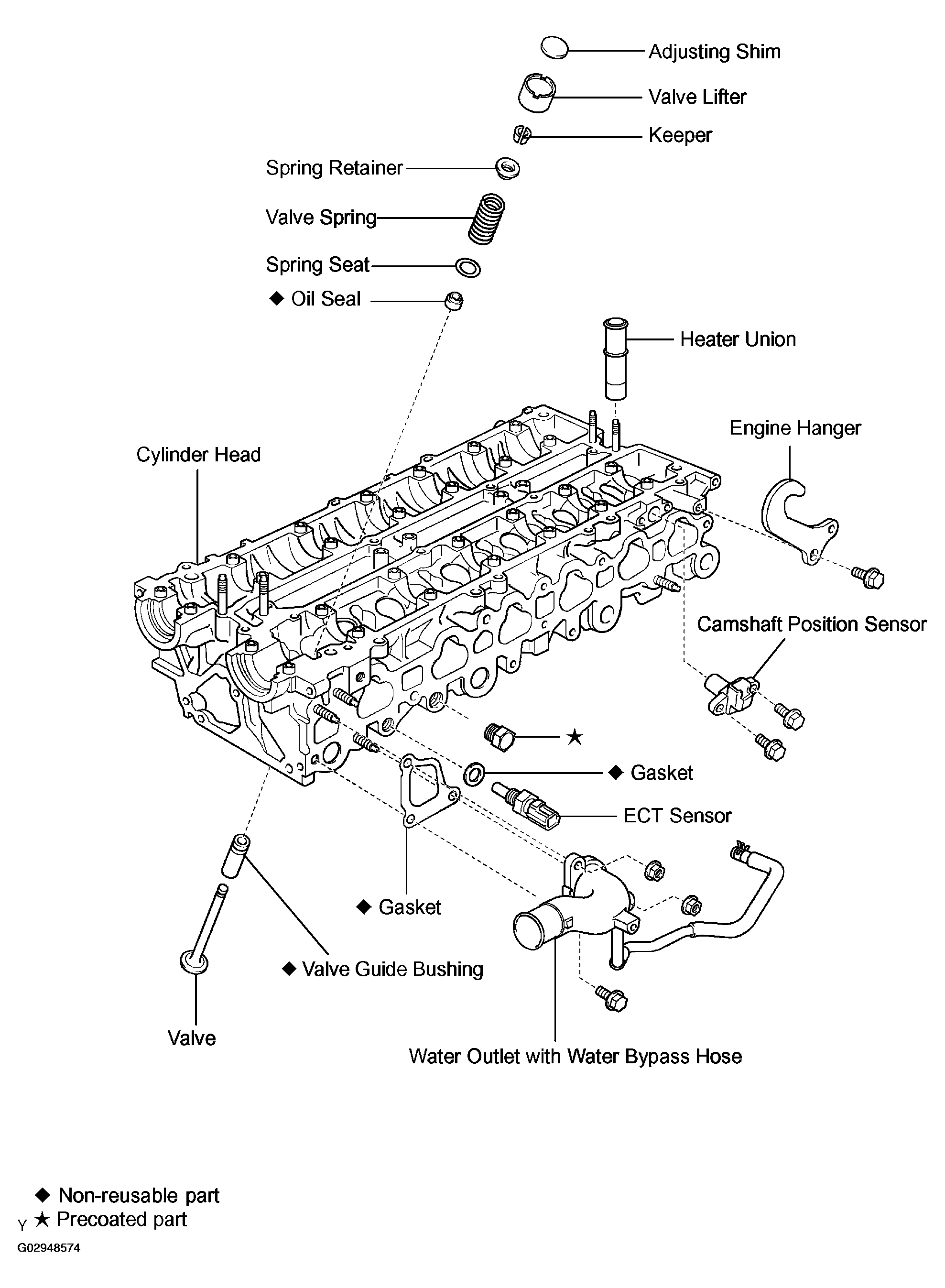

Fig 4: Identifying Engine Components - Cylinder Head (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
