Oil Pump: Installation

1. Place 2 new O-rings in position on the cylinder block.

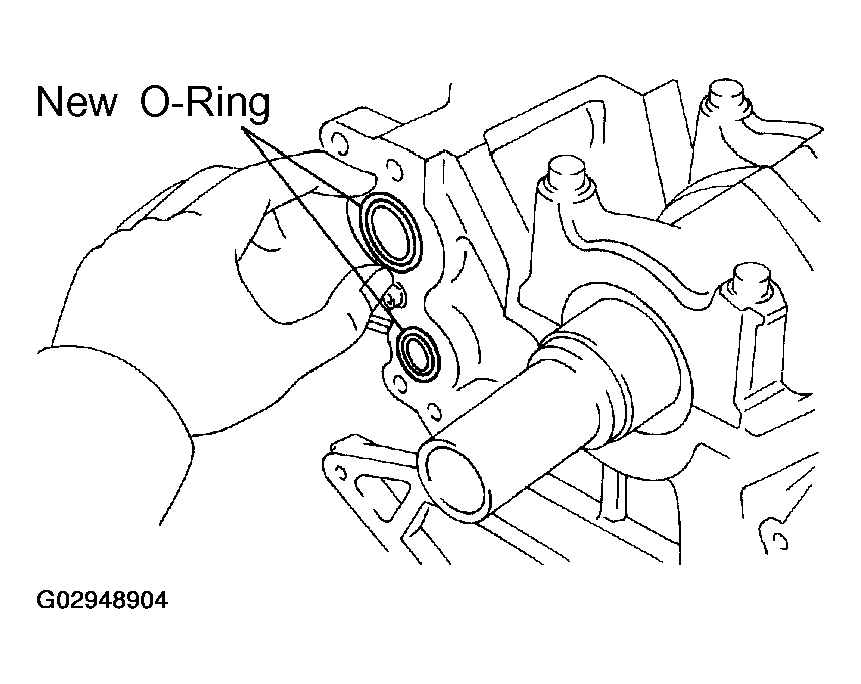

   Fig 1: Installing O-Rings In Position On Cylinder Block

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove any old packing (FIPG) material and be careful not to drop any oil on the contact surfaces of the oil pump and cylinder block.
   • Using a razor blade gasket scraper, remove all the old packing (FIPG) material from the gasket surfaces and sealing groove.
   • Thoroughly clean all components to remove all the debris.
   • Using a non-residue solvent, clean both sealing surfaces.
   NOTE: Do not use a solvent which will affect the painted surfaces  .
3. Apply seal packing to the oil pump as shown in Fig 2 .

   Seal packing: Part No.08826-00080 or equivalent

   • Install a nozzle that has been cut to a 2-3 mm (0.08-0.12 in.) opening.

   HINT:

   Avoid applying an excessive amount to the surface. Be particularly careful near oil passages.

   • Parts must be assembled within 5 minutes of application. Otherwise the material must be removed and reapplied.
   • Immediately remove nozzle from the tube and reinstall cap.

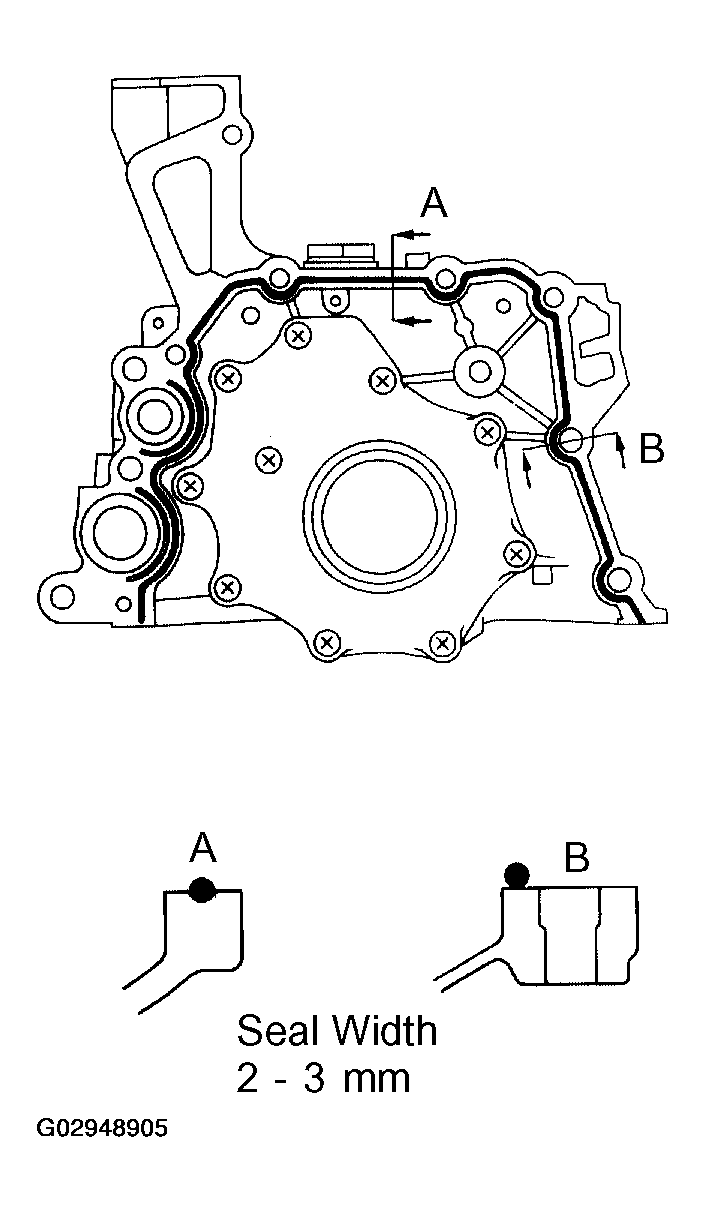

   Fig 2: Applying Seal Packing To Oil Pump

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the oil pump with the 9 bolts.
   1. Torque: 21 N.m (210 kgf.cm, 15 ft.lbf)

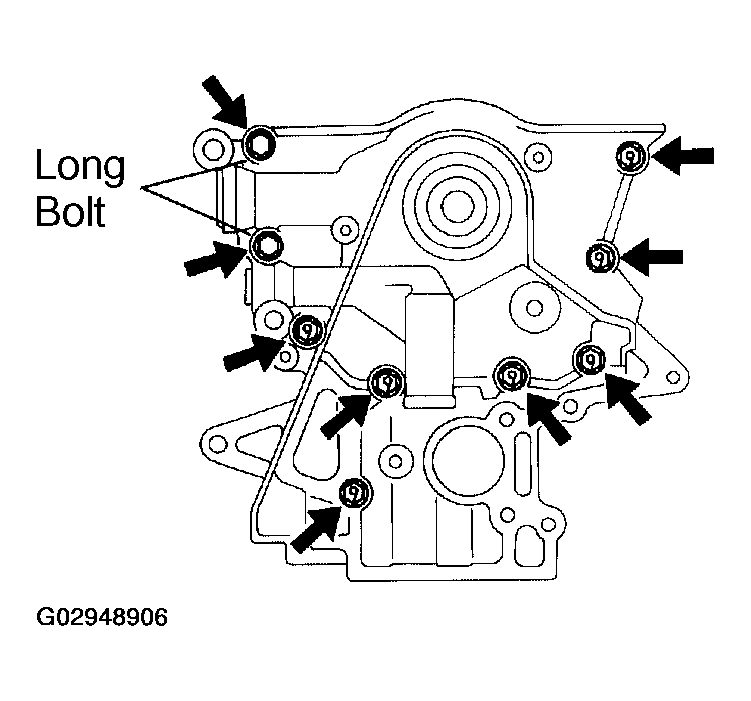

Fig 3: Identifying Oil Pump Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Place a new O-ring in the position on the cylinder block.

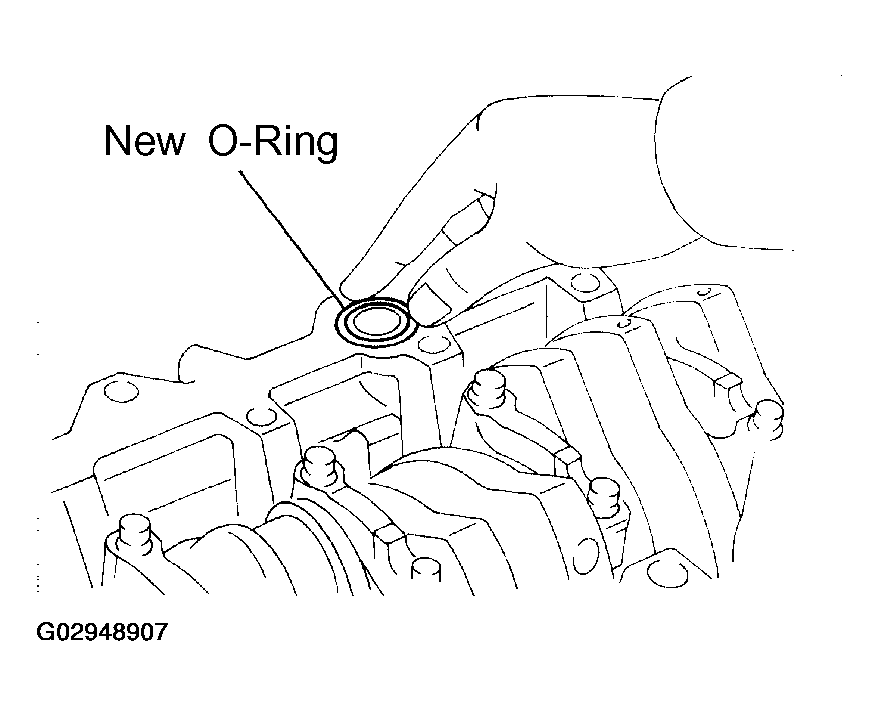

Fig 4: Placing O-Ring In Position On Cylinder Block
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove any old packing (FIPG) material and be careful not to drop any oil on the contact surfaces of the No. 1 oil pan and cylinder block.
   • Using a razor blade and gasket scraper, remove all the old packing (FIPG) material from the gasket surfaces and sealing groove.
   • Thoroughly clean all components to remove all the debris.
   • Using a non-residue solvent, clean both sealing surfaces.
   NOTE: Do not use a solvent which will affect the painted surfaces.
3. Apply seal packing to the No. 1 oil pan as shown in Fig 5 .

   Seal packing: Part No.08826-00080 or equivalent

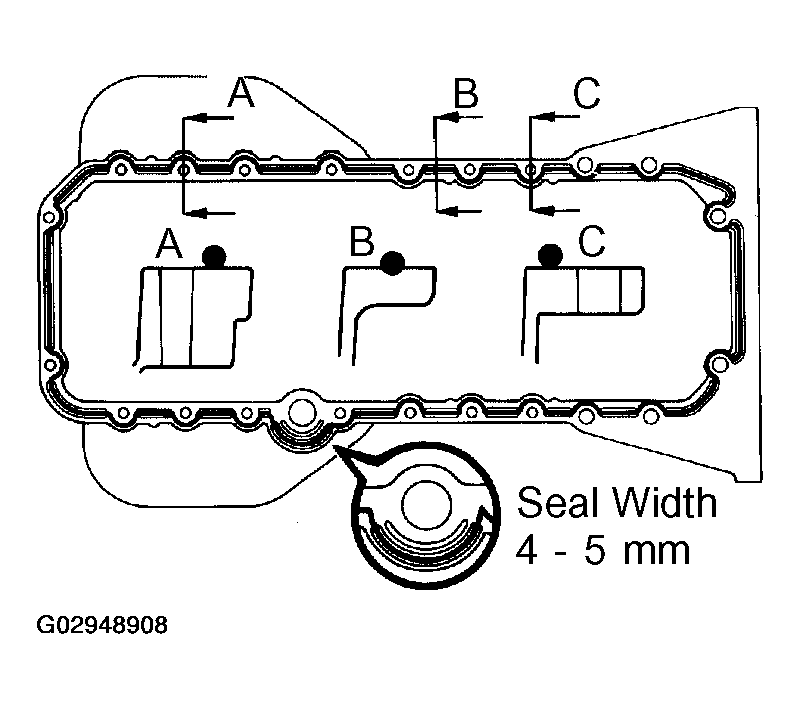

   Fig 5: Applying Seal Packing To No. 1 Oil Pan

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   • Install a nozzle that has been cut to a 4-5 mm (0.16-0.20 in.) opening.

   HINT:

   Avoid applying an excessive amount to the surface.

   • Parts must be assembled within 5 minutes of application. Otherwise the material must be removed and reapplied.
   • Immediately remove nozzle from the tube and reinstall cap.
4. Install the No.1 oil pan with the 22 bolts.

   Torque:

   • 21 N.m (210 kgf.cm, 15 ft.lbf) for 12 mm head
   • 40 N.m (400 kgf.cm, 30 ft.lbf) for 14 mm head

1. Torque: 9.0 N.m (90 kgf.cm, 80 in.lbf)

Install a new gasket and the oil strainer with the bolt and 2 nuts.

Torque: 9.0 N.m (90 kgf.cm, 80 in.lbf)

1. Remove any old packing (FIPG) material and be careful not to drop any oil on the contact surfaces of the No. 1 and No. 2 oil pans.
   • Using a razor blade and gasket scraper, remove all the old packing (FIPG) material from the gasket surfaces and sealing groove.
   • Thoroughly clean all components to remove all the debris.
   • Using a non-residue solvent, clean both sealing surfaces.
   NOTE: Do not use a solvent which will affect the painted surfaces.
2. Apply seal packing to the No. 2 oil pan as shown in Fig 6 .

   Seal packing: Part No.08826-00080 or equivalent

   Install a nozzle that has been cut to a 4-5 mm (0.16-0.20 in.) opening.

   Fig 6: Applying Seal Packing To No. 2 Oil Pan

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Avoid applying an excessive amount to the surface.

   • Parts must be assembled within 5 minutes of application. Otherwise the material must be removed and reapplied.
   • Immediately remove nozzle from the tube and reinstall cap.
3. Install the No. 2 oil pan with the 16 bolts and 2 nuts.
   1. Torque: 9.0 N.m (90 kgf.cm, 80 in.lbf)

1. Install a new gasket to the level sensor.
2. Install the level sensor with the 4 bolts.
   1. Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
3. Connect the level sensor connector.

Fig 7: Installing Oil Level Sensor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install a new O-ring on the dipstick guide.

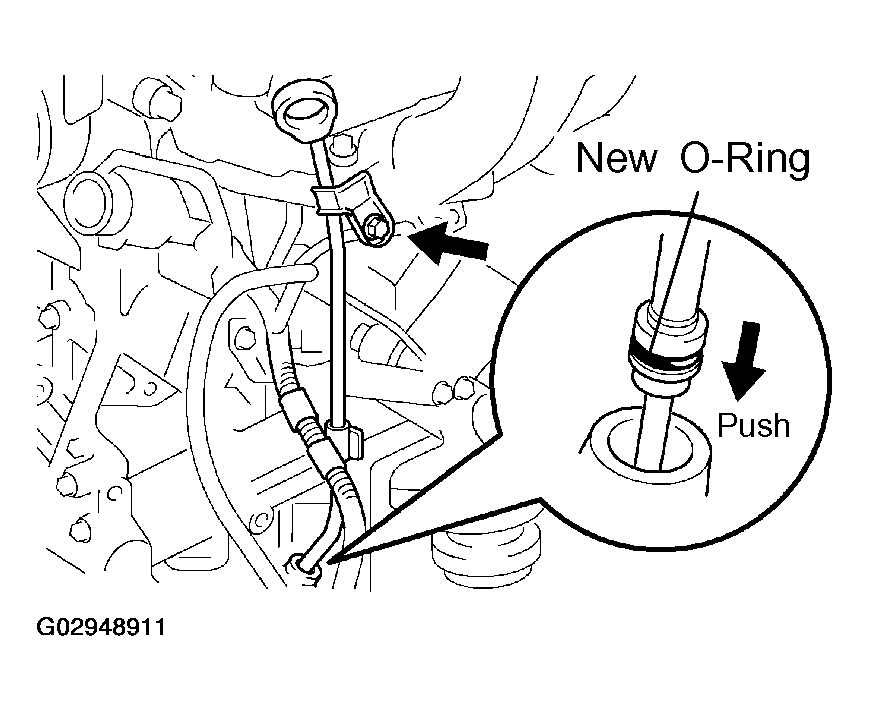

Fig 8: Installing O-Ring On Dipstick Guide
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Apply soapy water on the O-ring.
3. Push in the dipstick guide into the guide hole of the No. 1 oil pan.
4. Install the dipstick guide with the bolt.
5. Install the dipstick.
6. Connect the engine wire clamp to the dipstick guide.

1. Torque: 9.0 N.m (90 kgf.cm, 80 in.lbf)
