Home >> Lexus >> 2005 >> IS 300 Base, Automatic >> Repair and Diagnosis >> Body & Frame >> Exterior/Interior Trim >> Hood >> Components

Exterior/Interior Trim: Hood: Components

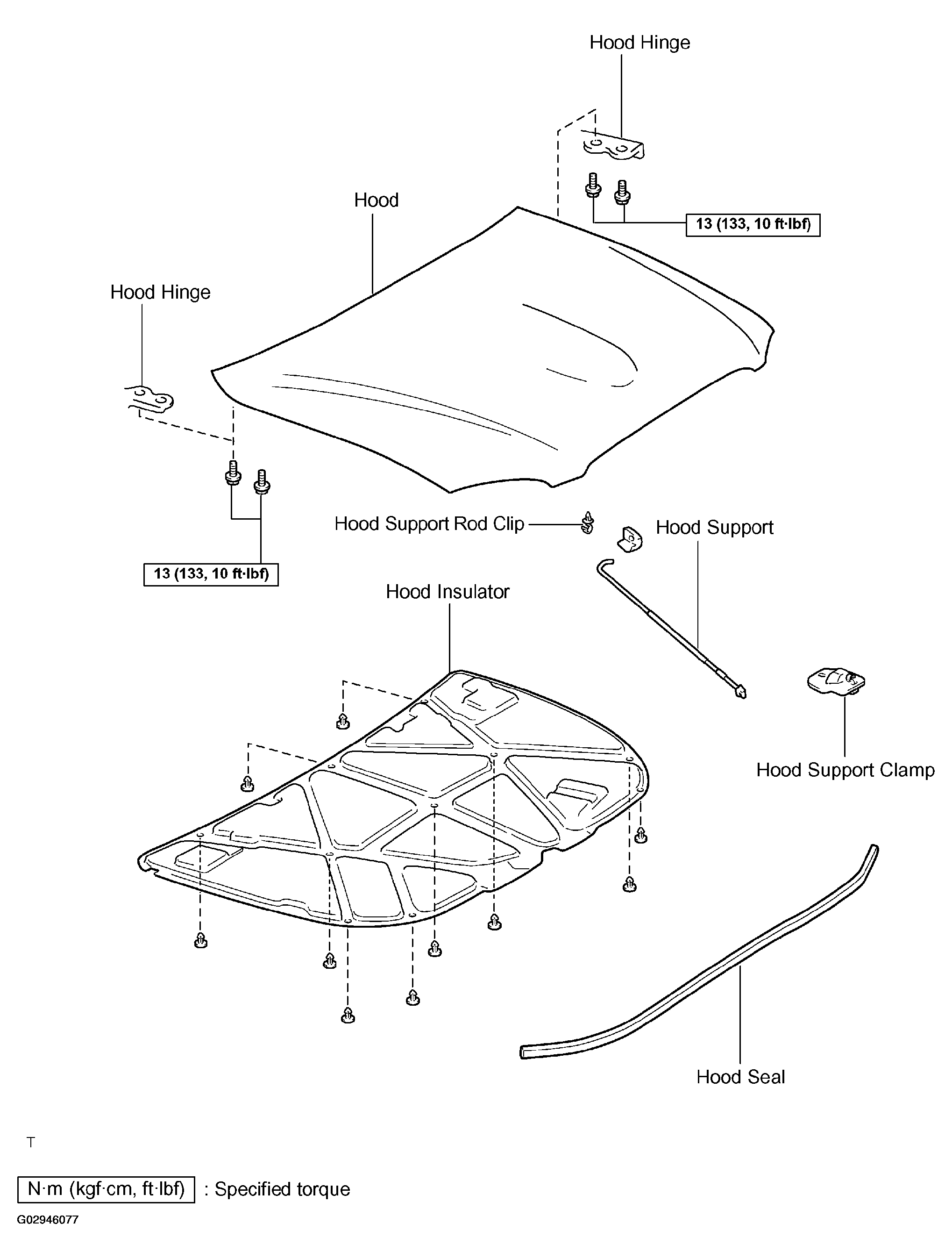

Fig 1: Identifying Hood Components

G02946077

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
