Body Outside Moulding: Removal

Using a heat light, heat the moulding to 20-30 °C (68-86 °F).

1. Tie both piano wire ends to wooden blocks or similar objects.

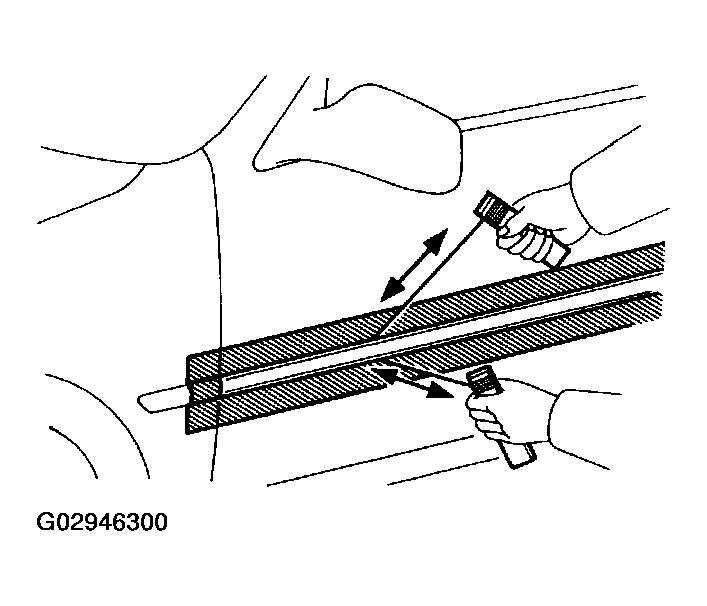

2. Cut the adhesive tape by pulling the piano wire as shown in the illustration.
   NOTE:

   • If reusing the moulding, take care not to damage the moulding.
   • Do not damage the body.
3. Remove the moulding.
   Fig 1: Heating Moulding, Using Heat Light

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
