Home >> Lexus >> 2005 >> IS 300 Base, Automatic >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Theft Deterrent System >> Location

Theft Deterrent System: Location

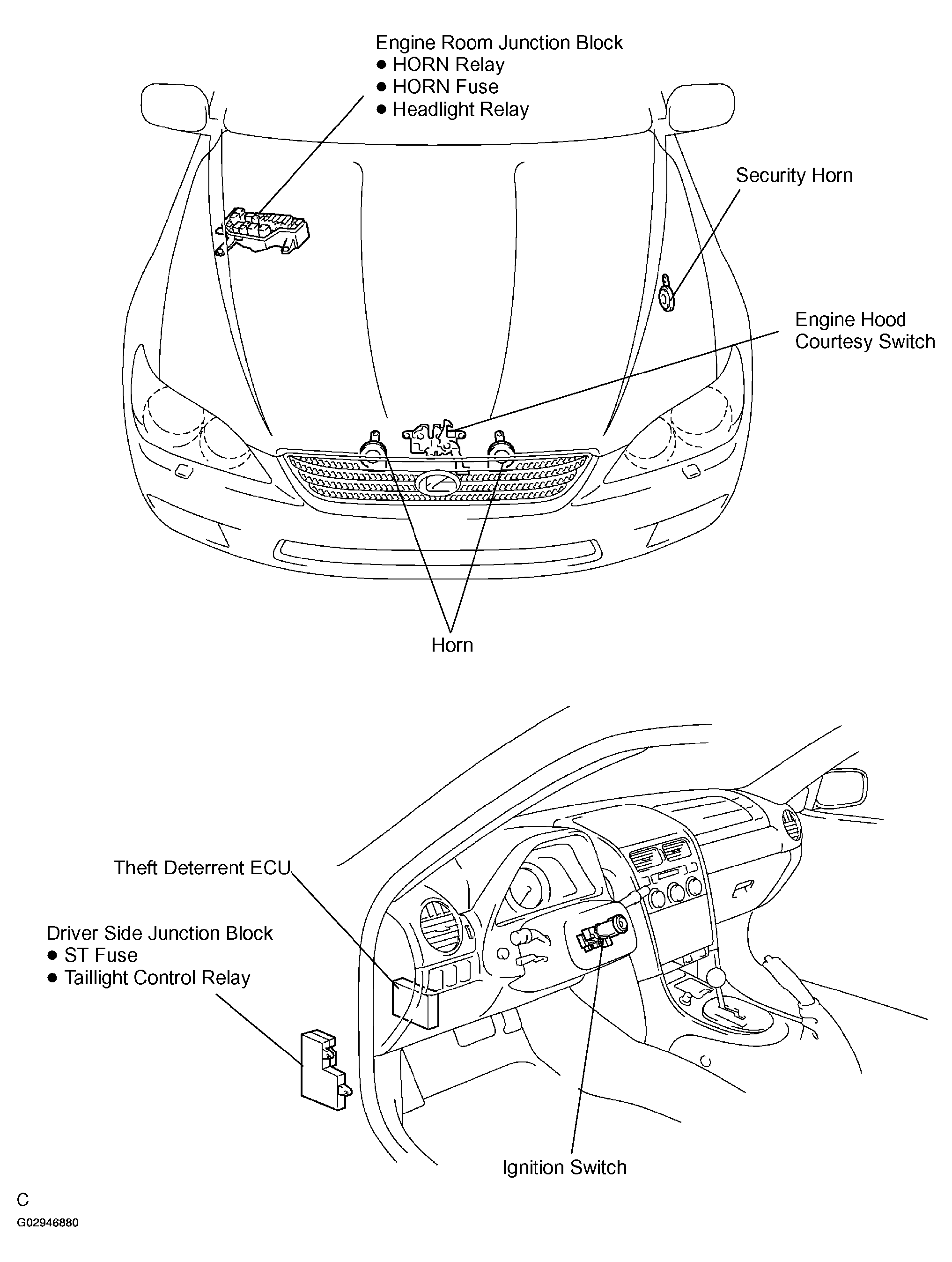

Fig 1: Identifying Theft Deterrent System Components Location (1 Of 2)
G02946880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

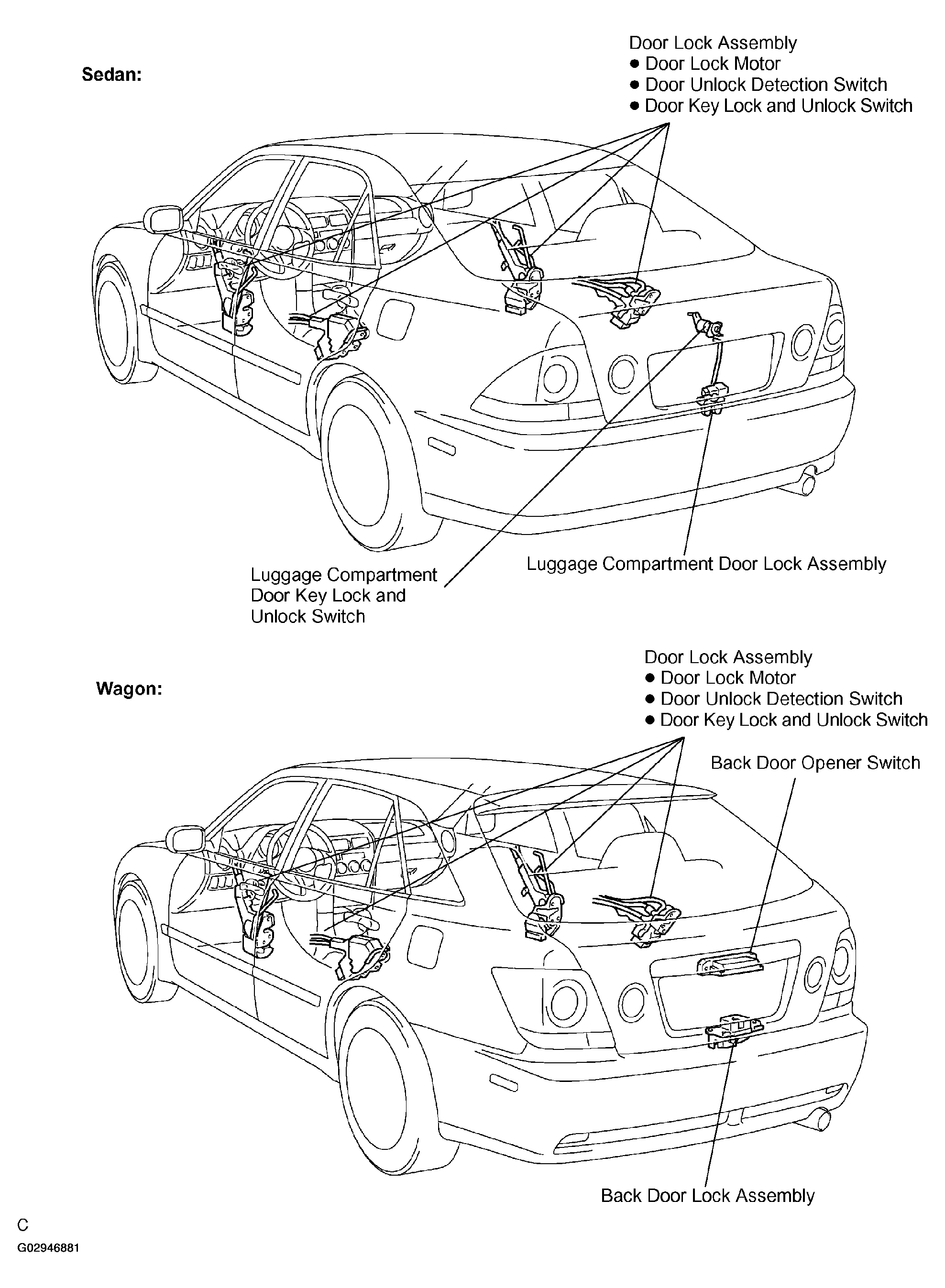

Fig 2: Identifying Theft Deterrent System Components Location (2 Of 2)
G02946881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
