Terminals Of Ecu

Fig 1: Identifying ECU Connector Terminals
G02947678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

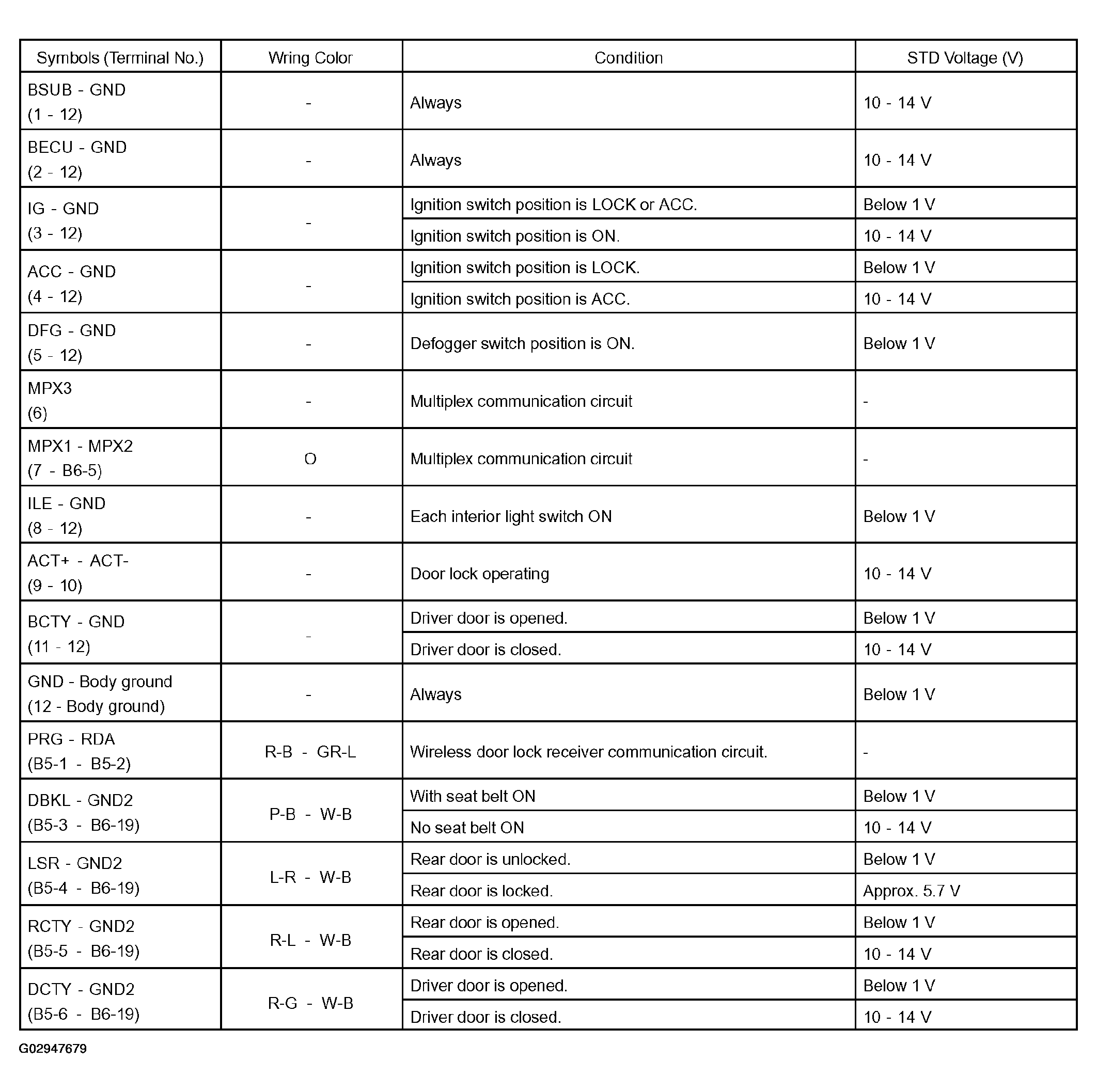

Fig 2: ECU Connector Terminals Voltage Specification (1 Of 2)
G02947679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

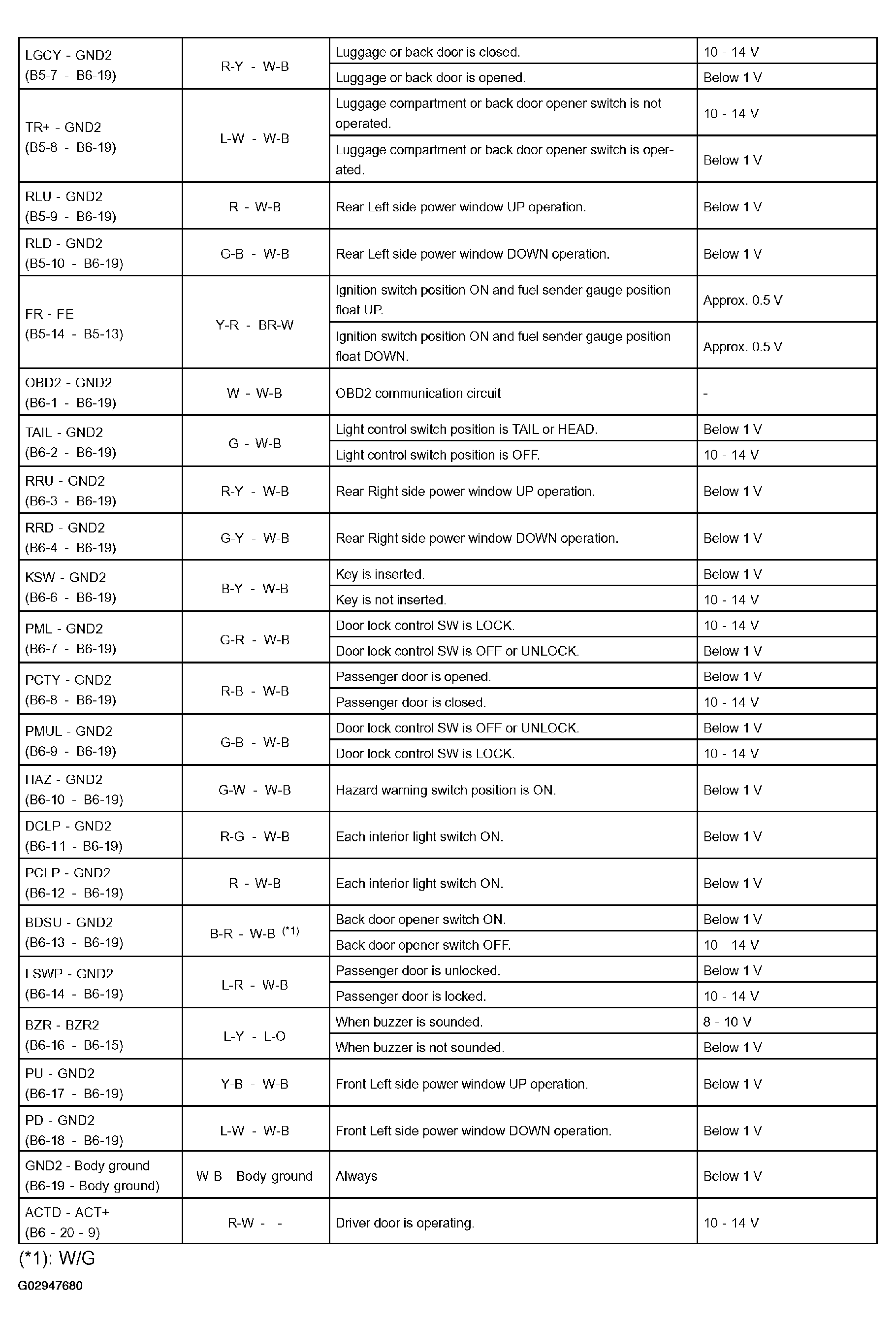

Fig 3: ECU Connector Terminals Voltage Specification (2 Of 2)
G02947680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
