Home >> Lexus >> 2005 >> IS 300 Base, Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Entertainment Systems >> Audio System >> Location

Audio System: Location

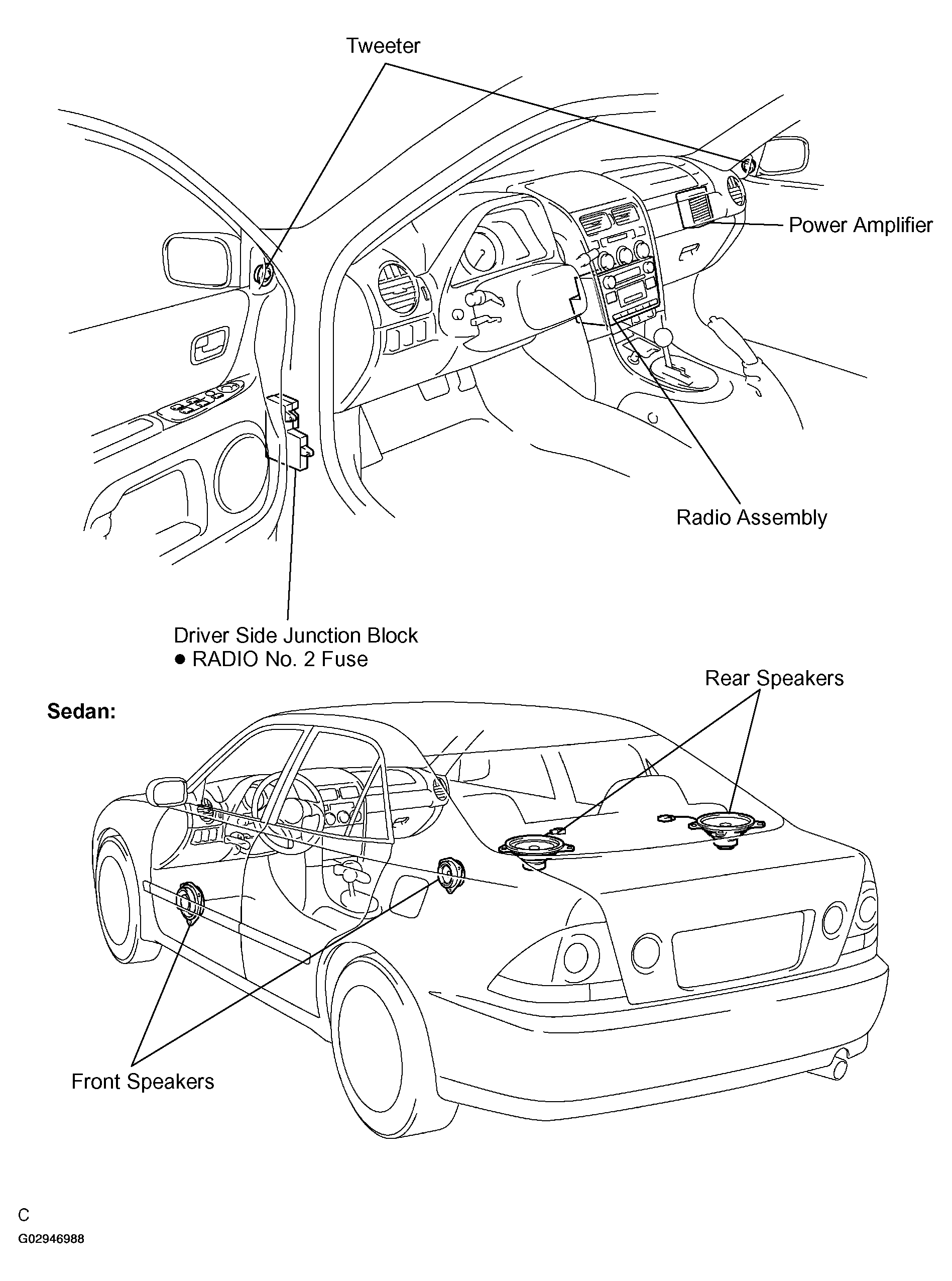

Fig 1: Locating Audio System Components (1 Of 2)
G02946988Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

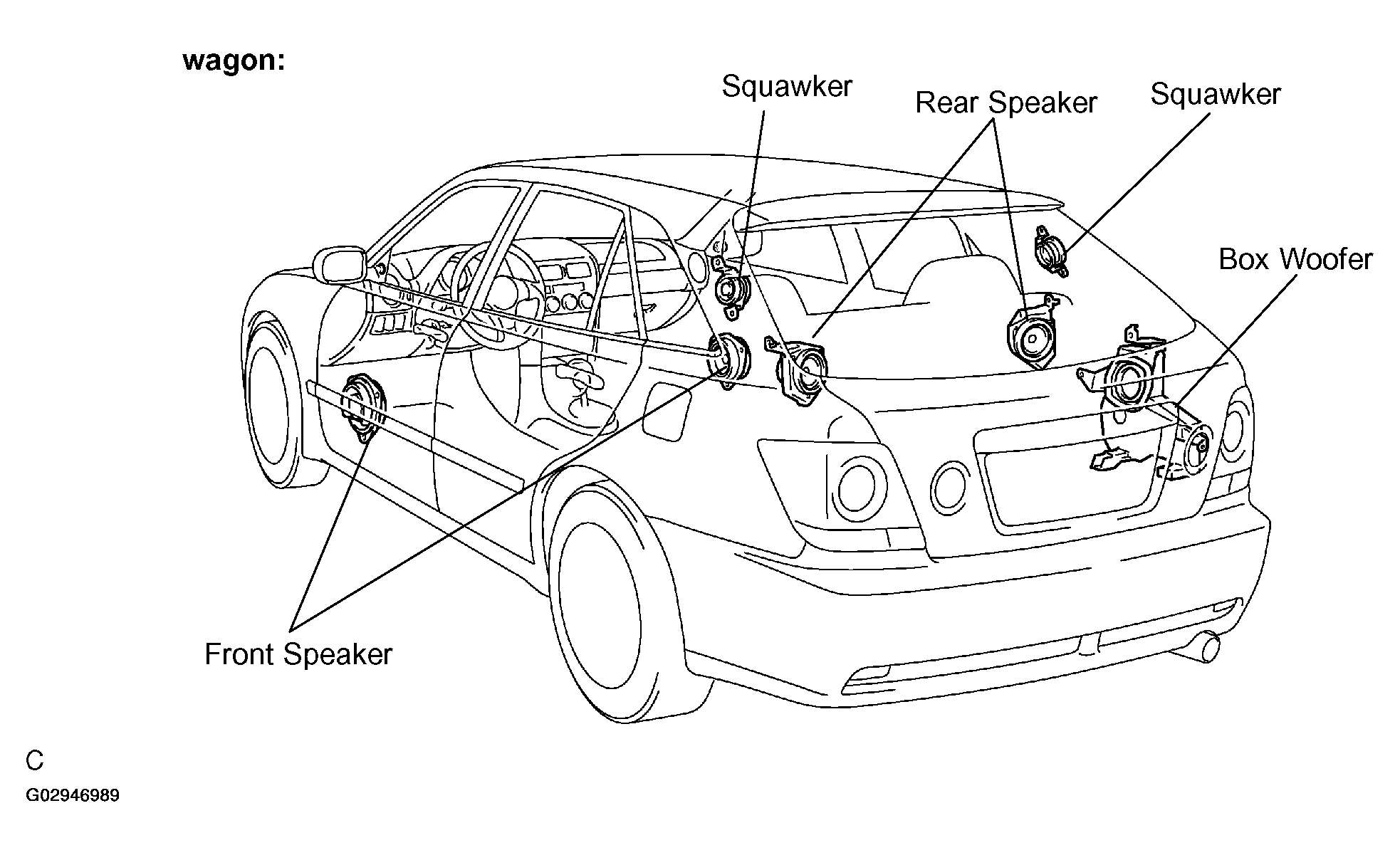

Fig 2: Locating Audio System Components (2 Of 2)
G02946989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
