Engine Performance
>>
Fuel Delivery
>>
SFI
>>
Heated Oxygen Sensor
>>
Components
Heated Oxygen Sensor: Components

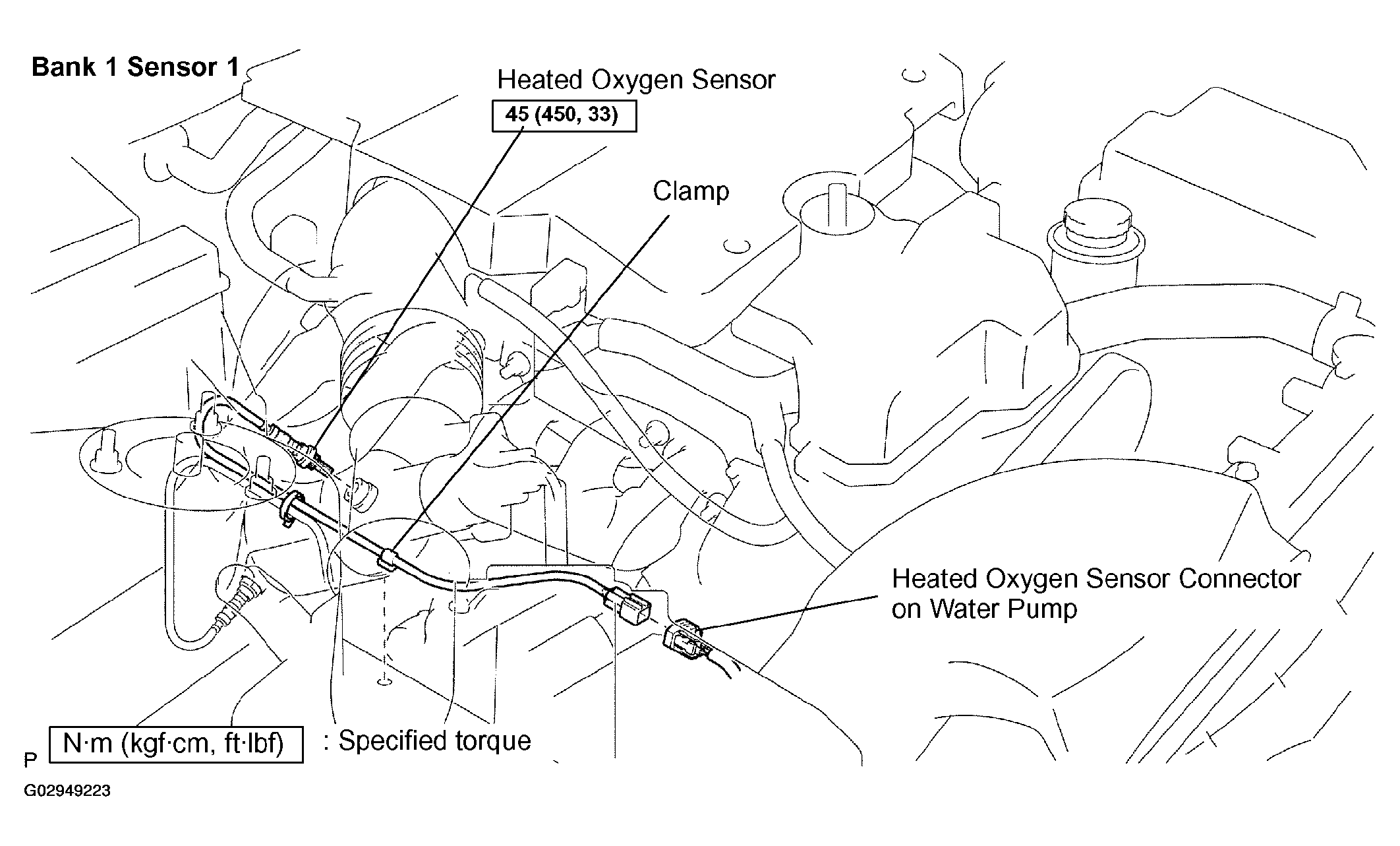

Fig 1: Exploded View Of Heated Oxygen Sensor Components With Torque Specifications (Bank 1 Sensor 1)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

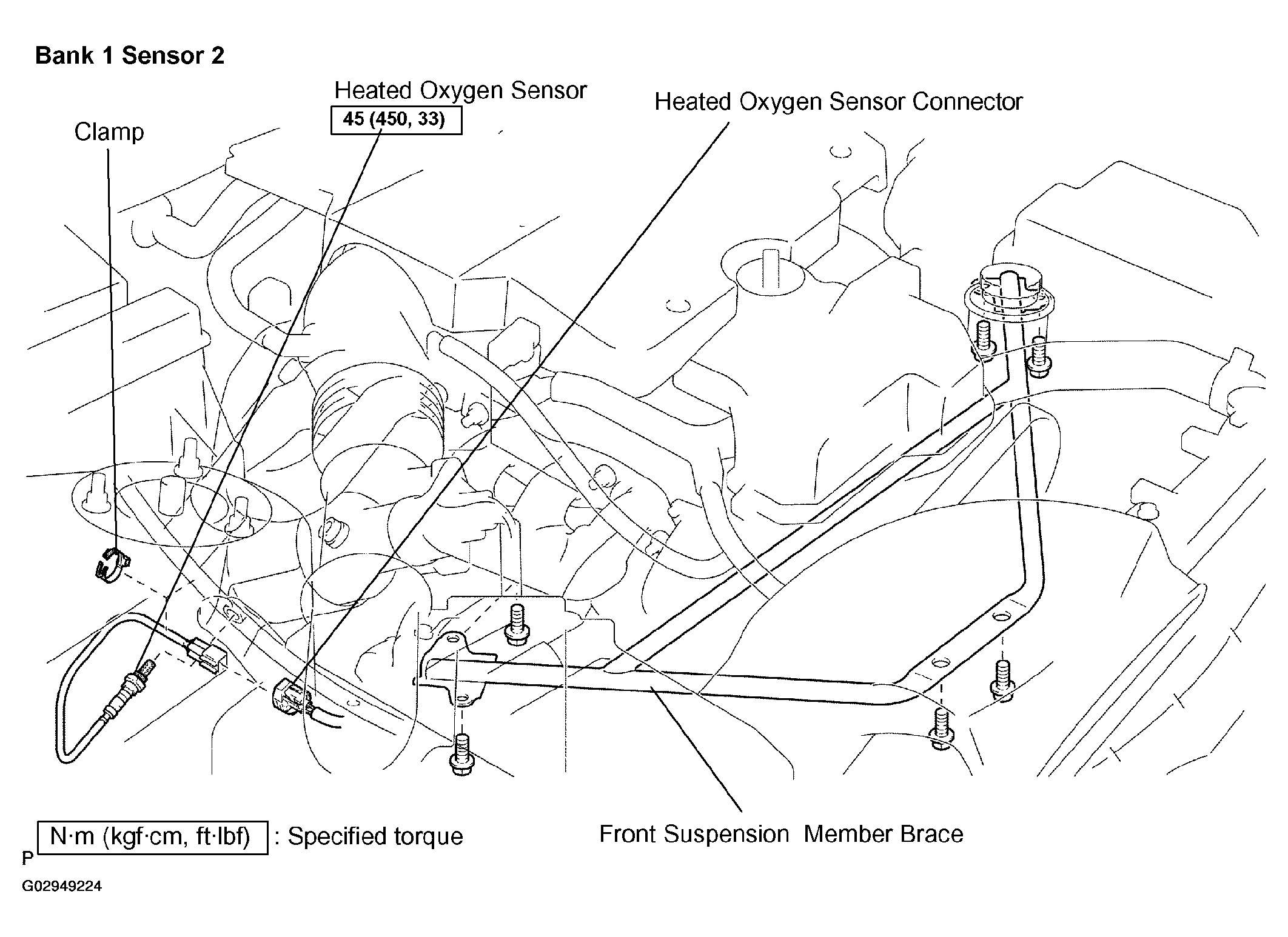

Fig 2: Exploded View Of Heated Oxygen Sensor Components With Torque Specifications (Bank 1, Sensor 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

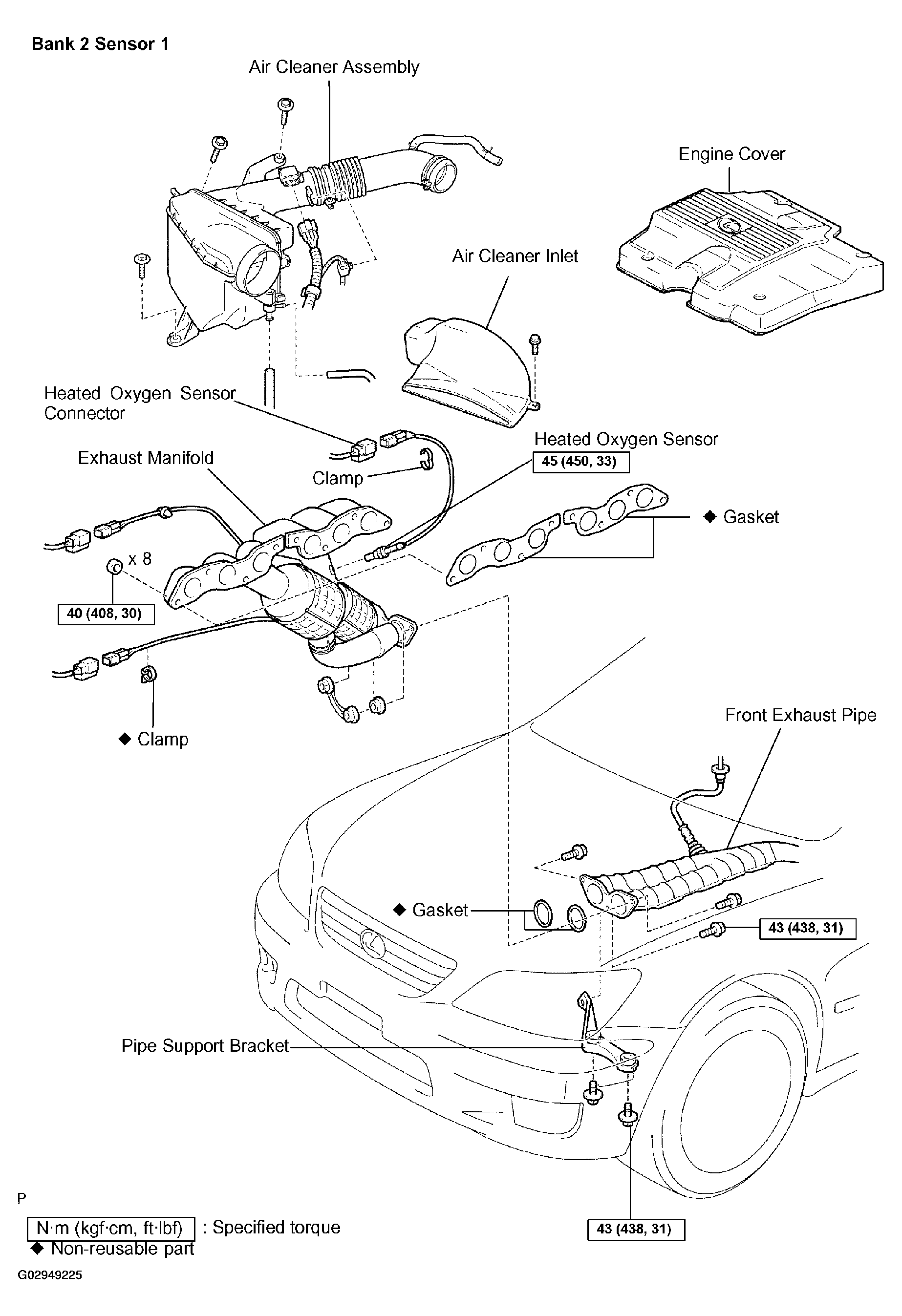

Fig 3: Exploded View Of Heated Oxygen Sensor Components With Torque Specifications (Bank 2, Sensor 1)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

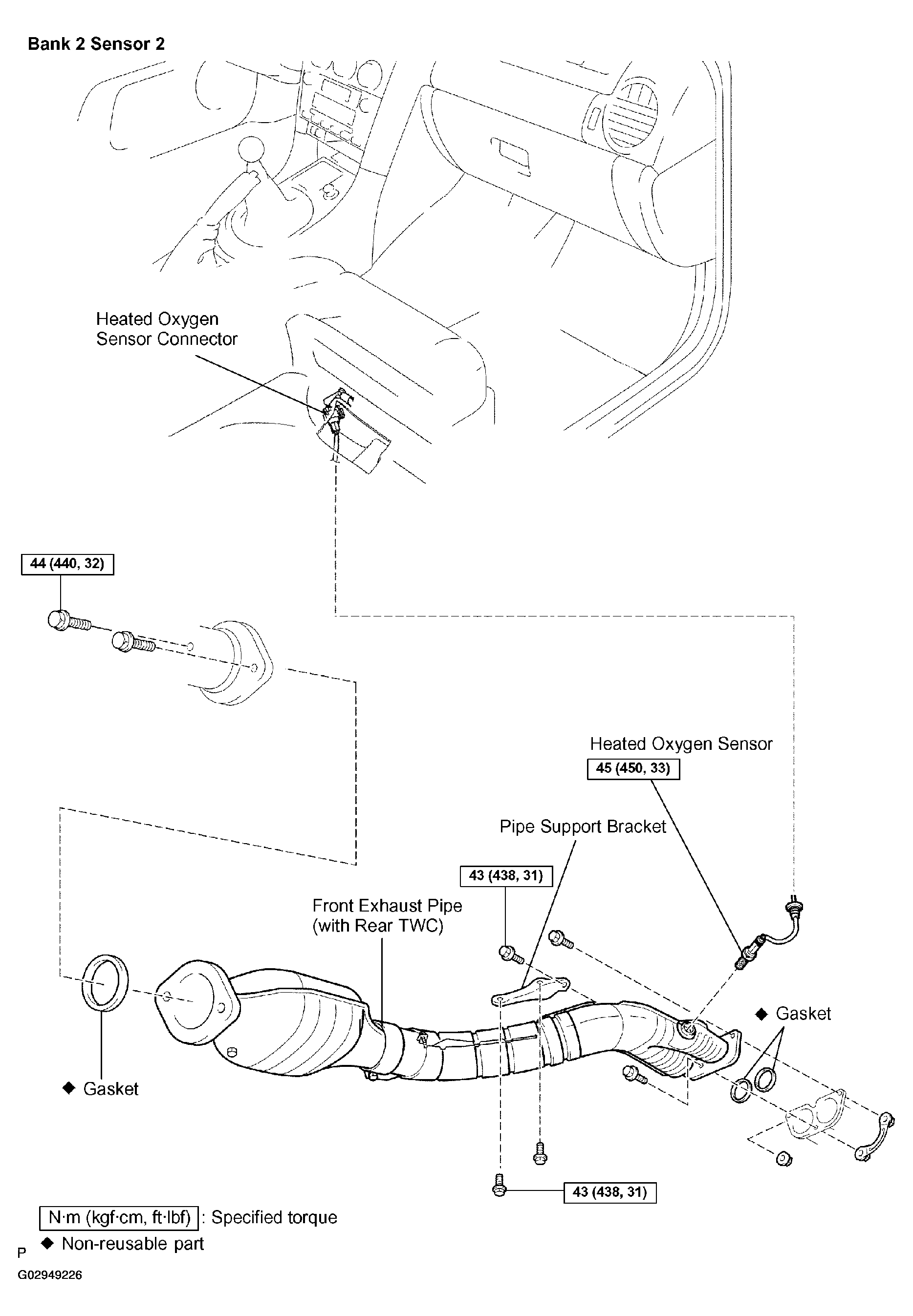

Fig 4: Exploded View Of Heated Oxygen Sensor Components With Torque Specifications (Bank 2, Sensor 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
