Stabilizer Control W/Bracket Valve ASSY (KDSS): Components

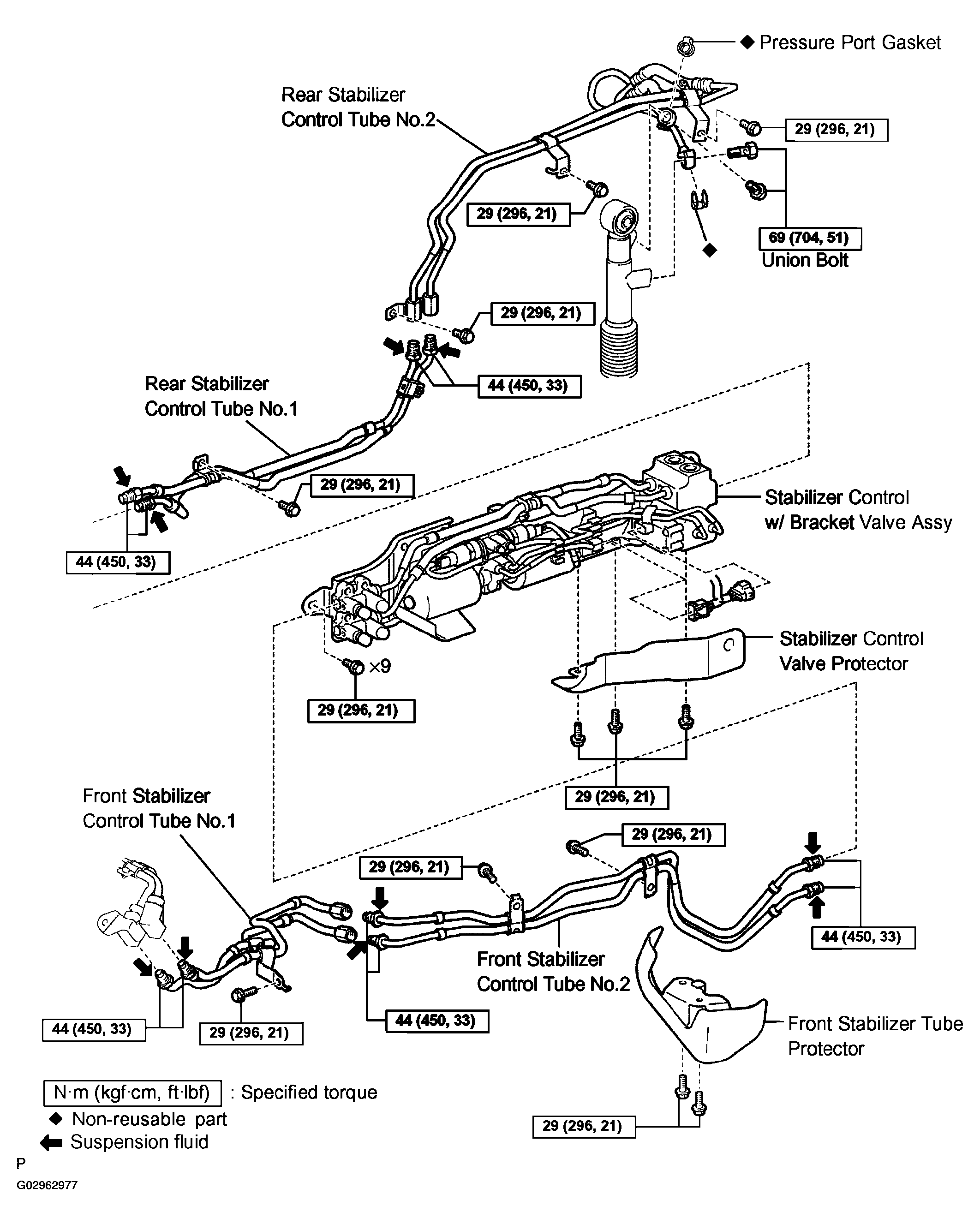

Fig 1: Identifying Stabilizer Control With Bracket Valve Assy Components & Replacements (KDSS) (1 Of 2)
G02962977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

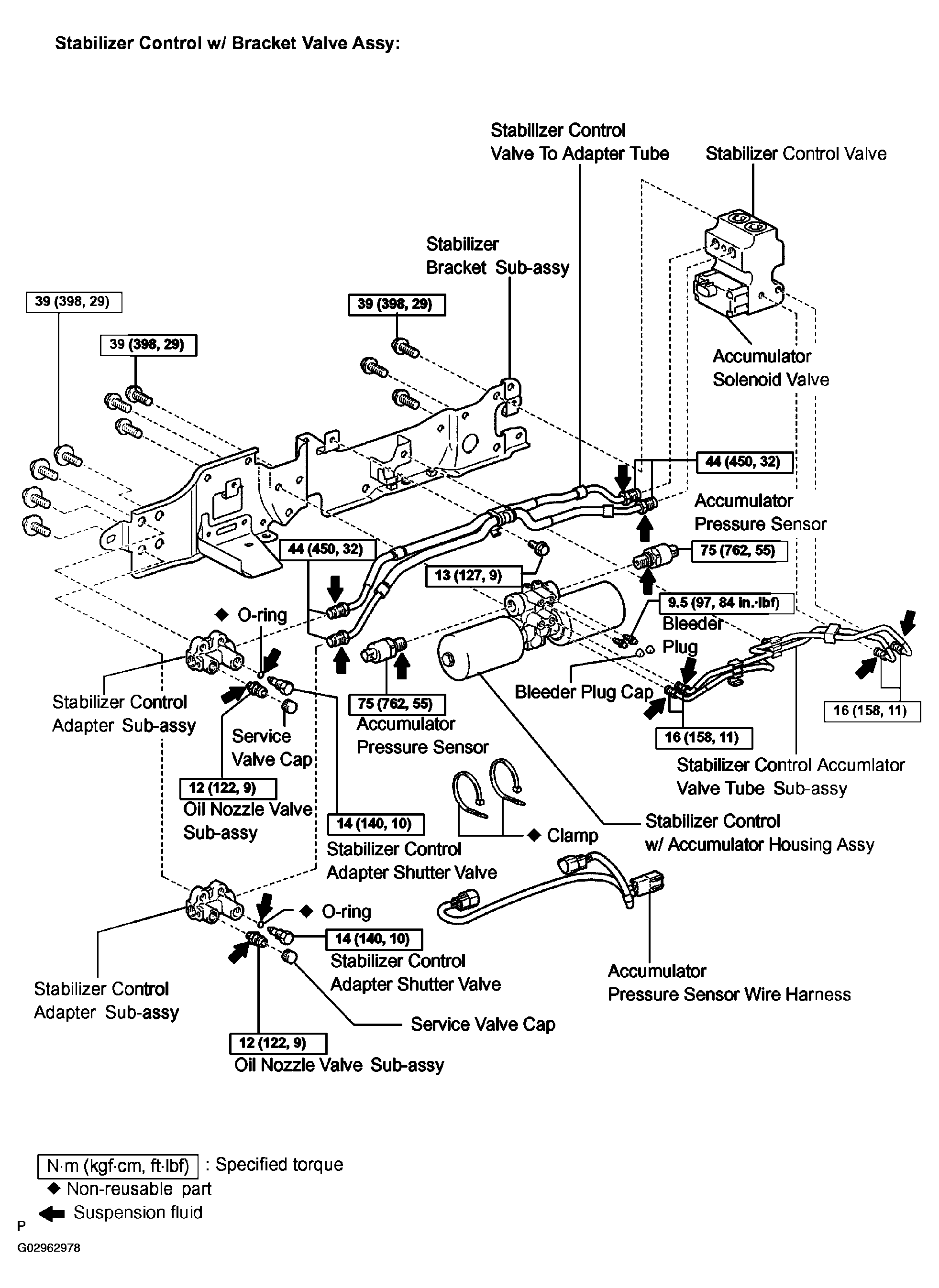

Fig 2: Identifying Stabilizer Control With Bracket Valve Assy Components & Replacements (KDSS) (2 Of 2)
G02962978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
