How To Determine Nut Strength

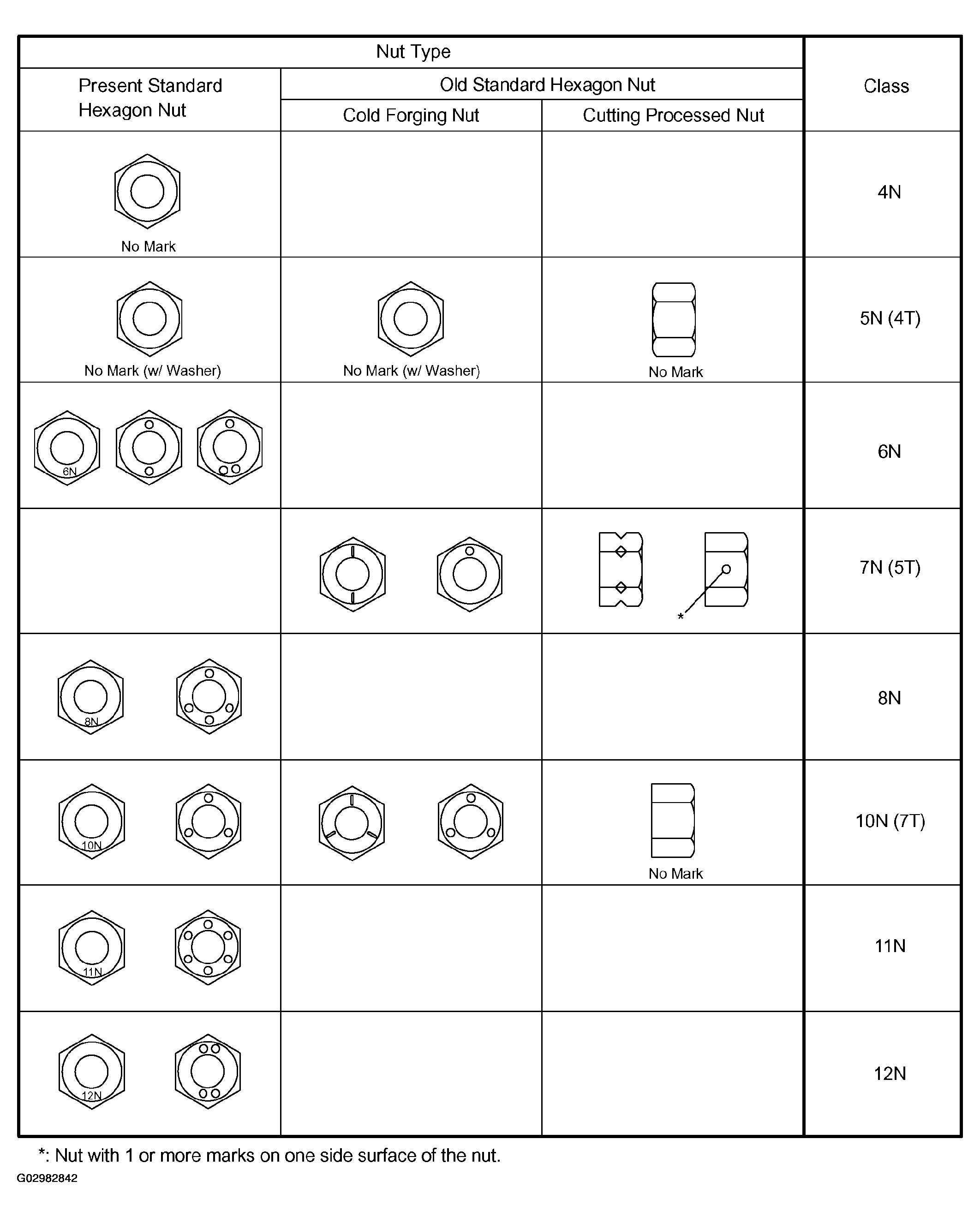

Fig 1: Determining Nut Strength Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the nut with the same number of nut strength classification or the greater than the bolt strength classification number when tightening parts with a bolt and nut.

EXAMPLE:

• Bolt = 4T
• Nut = 4N or more
