Problem Symptoms Table

WARNING: This page is about a different car, the 2005 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

Proceed with troubleshooting of each circuit in the table below.

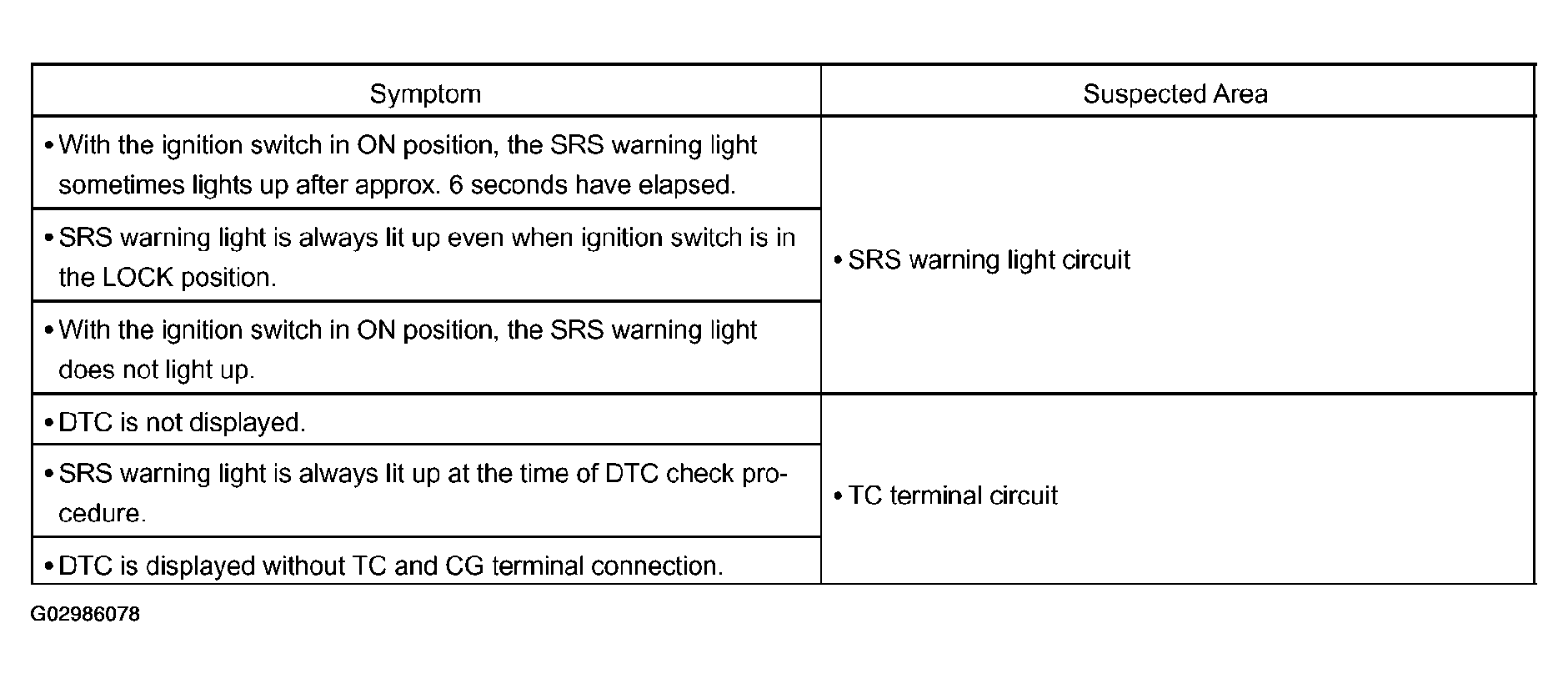

Fig 1: Diagnostic Reference Chart
G02986078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
