Section 42 (Headlight And Taillight System): Disassembly

WARNING: This page is about a different car, the 2005 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE STEERING WHEEL (See  REMOVAL  )
  2. REMOVE SPIRAL CABLE (See  REMOVAL  )
  3. REMOVE CANCEL CAM

    Turn the cancel cam as pressing it, and pull it out.

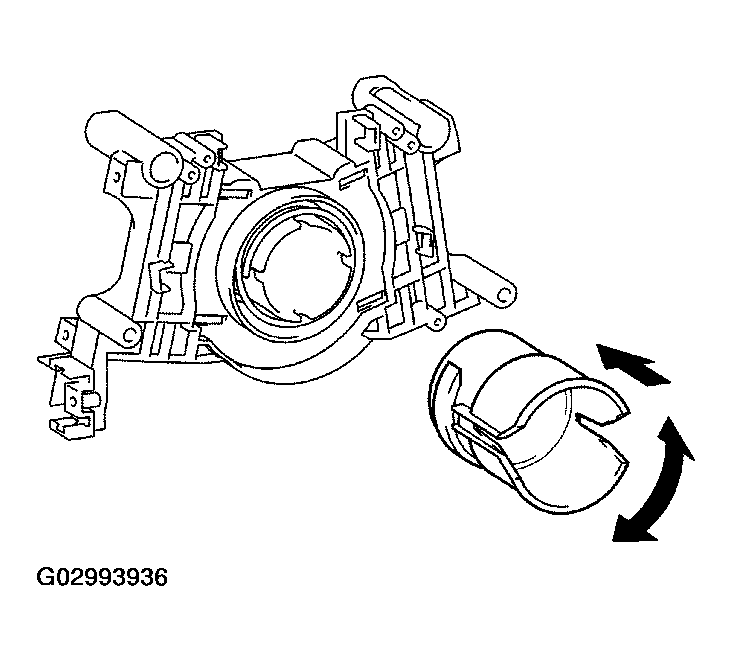

    Fig 1: Removing Cancel Cam
    G02993936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
