Side Airbag Assembly: Installation

WARNING: This page is about a different car, the 2005 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Never use airbag parts from another vehicle. When replacing parts, replace them with new parts.
  1. INSTALL LUMBER SUPPORT

    Install the lumber support with the 2 bolts.

  2. INSTALL SEATBACK FRAME
    1. Install the seatback cover to the seatback frame.

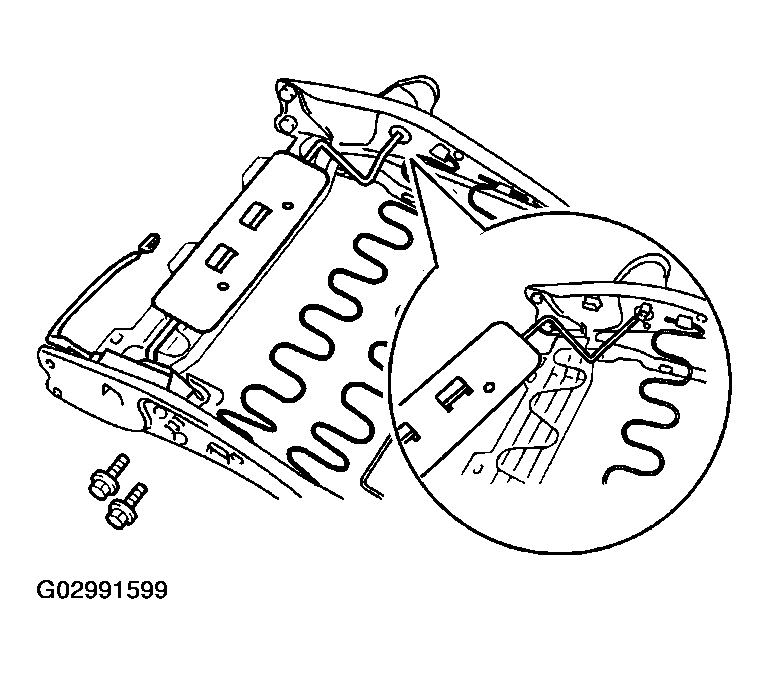

      Fig 1: Installing Seatback Cover To Seatback Frame
      G02991599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install new hog rings, clamps and the 2 bolts.

      Torque: 4.7 N.m (48 kgf.cm, 42 in.lbf)

    3. Install the 2 headrest supports.

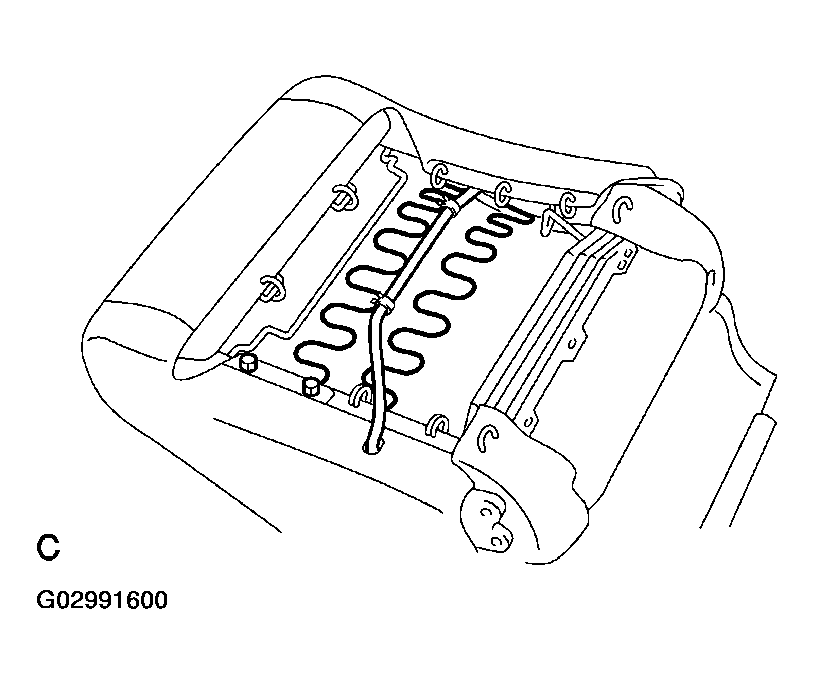

    Fig 2: Installing Hog Rings
    G02991600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL SEATBACK ASSEMBLY
    1. Place the airbag connector along the inner seat adjuster, and then install the RH reclining adjuster inside shield with a screw so that the connector is placed in between.

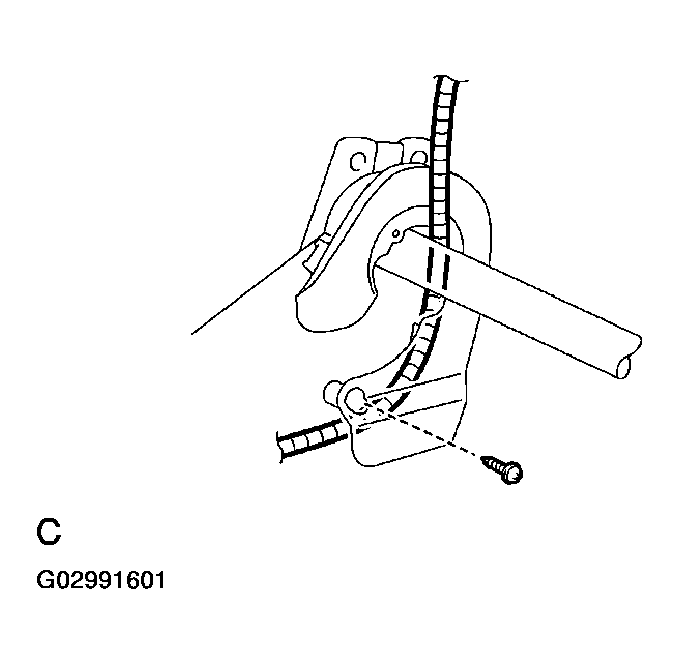

      Fig 3: Installing RH Reclining Adjuster Inside Shield With Screw
      G02991601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the seatback assembly with the 4 bolts.

      Torque: 43 N.m (440 kgf.cm, 32 ft.lbf)

      NOTE:
      • Make sure that the seatback assembly is installed to the specified torque.
      • If the seatback assembly has been dropped, or there are cracks, dents or other defects in the case or connector, replace the seatback assembly with a new one.

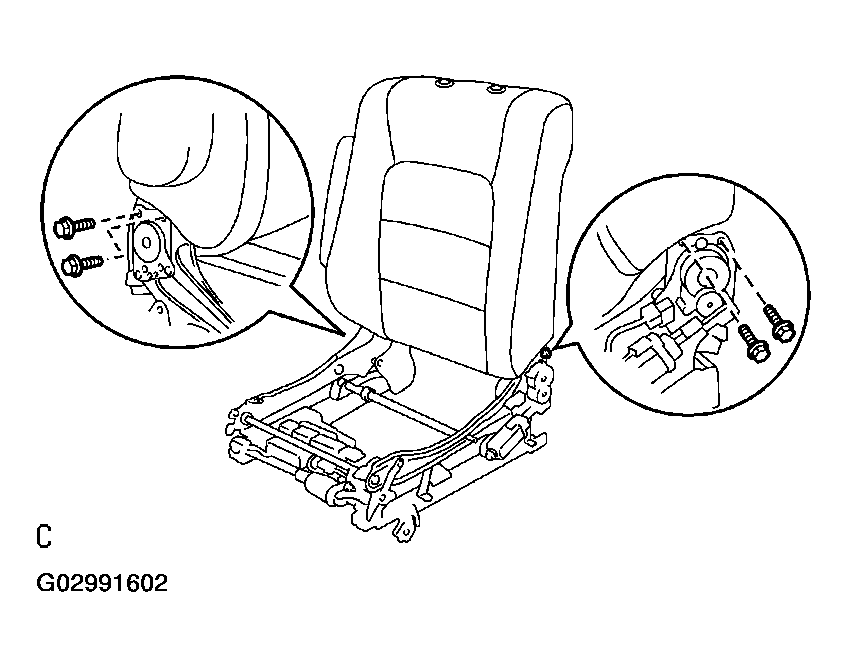

        Fig 4: Installing Seatback Assembly With Bolts
        G02991602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • When installing the seatback assembly, take care it is not to be pinched between other parts.
    3. Install new hog rings.
    4. Hang the hook.
    5. Connect the connectors.
  4. INSTALL ARMREST

    Torque: 37 N.m (380 kgf.cm, 27 ft.lbf)

  5. INSTALL HEADREST

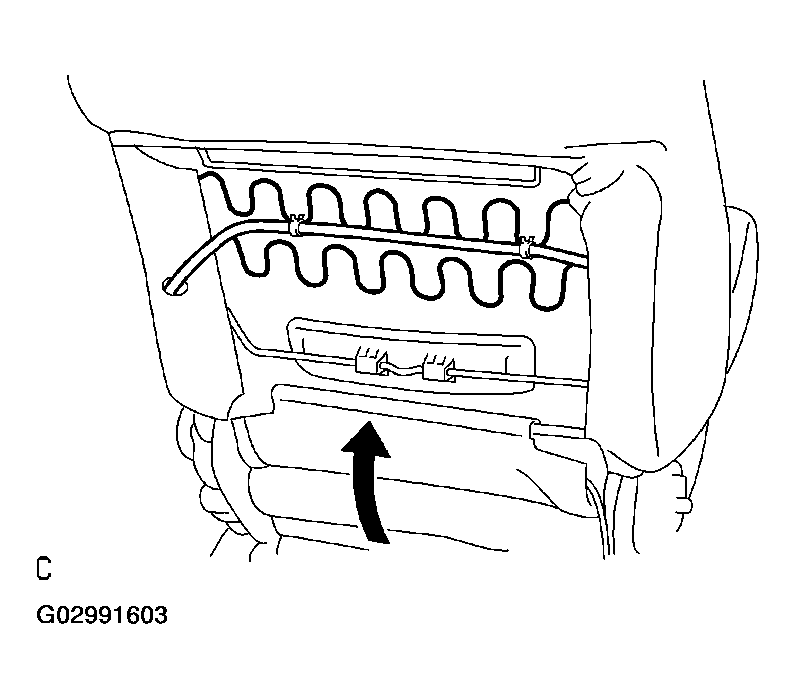

    Fig 5: Connecting Connectors
    G02991603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL SEAT CUSHION ASSEMBLY
    1. Install the seat cushion assembly with the 4 bolts.

      Torque: 21 N.m (210 kgf.cm, 15 ft.lbf)

    2. Engage the wire harness clamp.

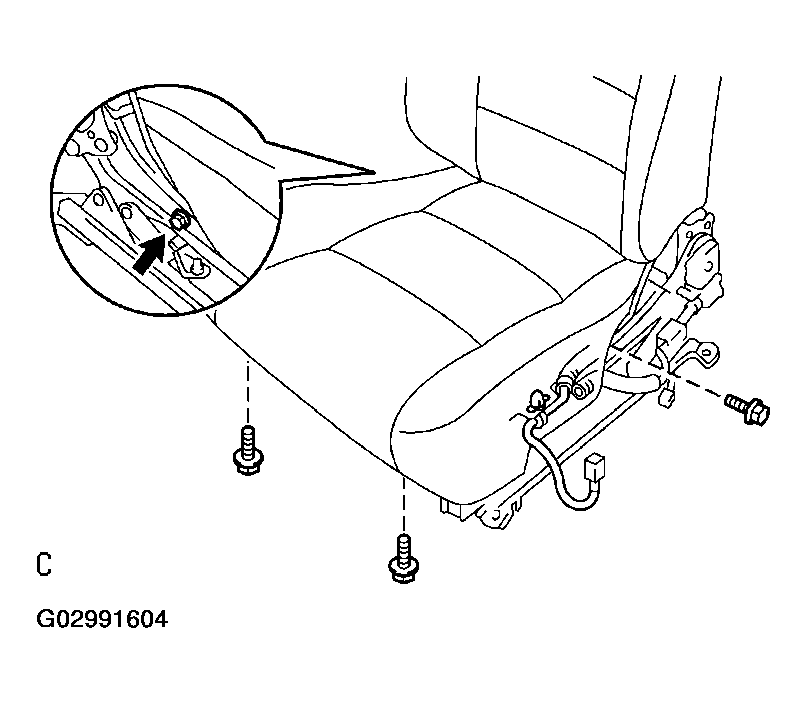

    Fig 6: Installing Seat Cushion Assembly With Bolts
    G02991604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL FRONT SEAT CUSHION SHIELD

    Install the seat cushion shield with the screw.

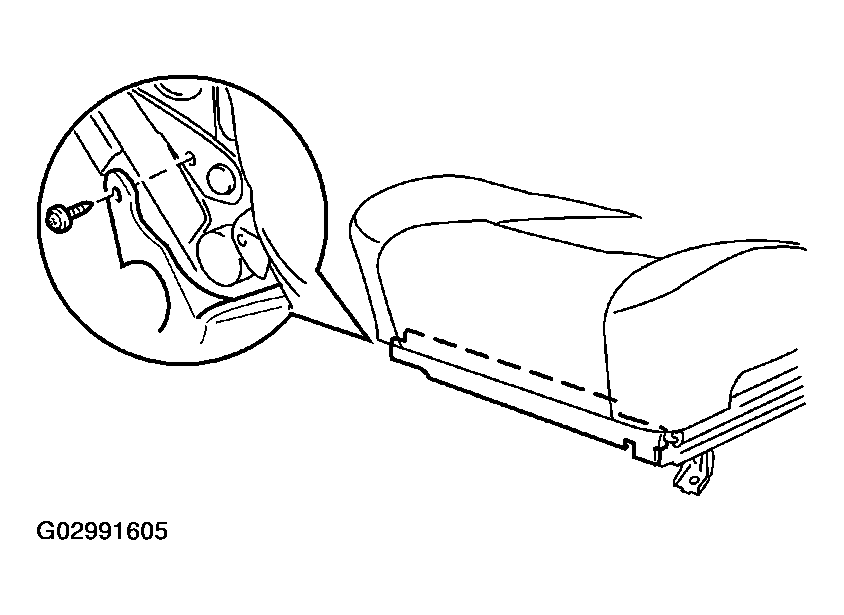

    Fig 7: Installing Seat Cushion Shield With Screw
    G02991605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL LOWER SEAT CUSHION SHIELD

    Install the lower seat cushion shield with the screws.

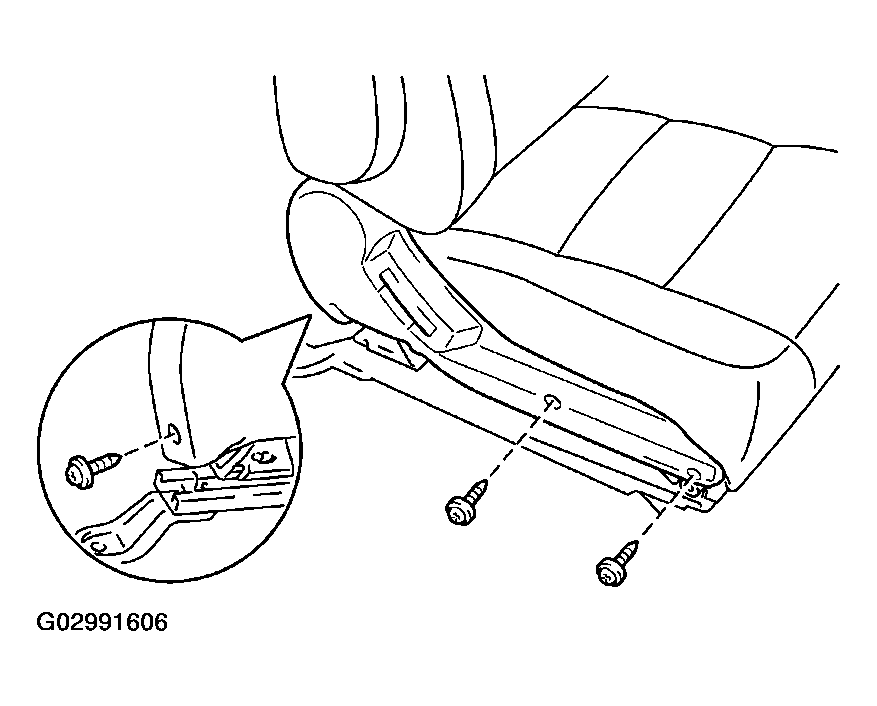

    Fig 8: Installing Lower Seat Cushion Shield With Screws
    G02991606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL FRONT SEAT INNER BELT
    1. Engage the clamp, then connect the connector.
    2. Install the inner belt with the bolt.

      Torque: 42 N.m (430 kgf.cm, 31 ft.lbf)

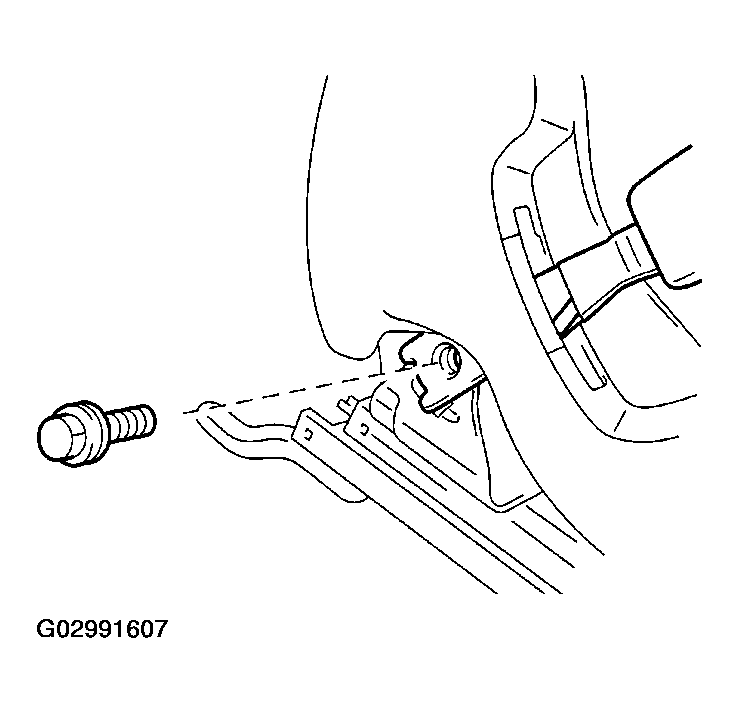

      Fig 9: Installing Inner Belt With Bolt
      G02991607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL SEAT CUSHION OUTER SHIELD
    1. Connect the connectors.
    2. Install the seat cushion outer shield with the 3 screws.
  11. INSTALL SEATBACK BOARD
  12. INSTALL FRONT SEAT
    1. Install the front seat.
      NOTE: Be careful not to damage body
    2. Connect the connectors.
    3. Install the 4 bolts.

      Torque: 42 N.m (430 kgf.cm, 31 ft.lbf)

    4. Install the 4 seat track covers.

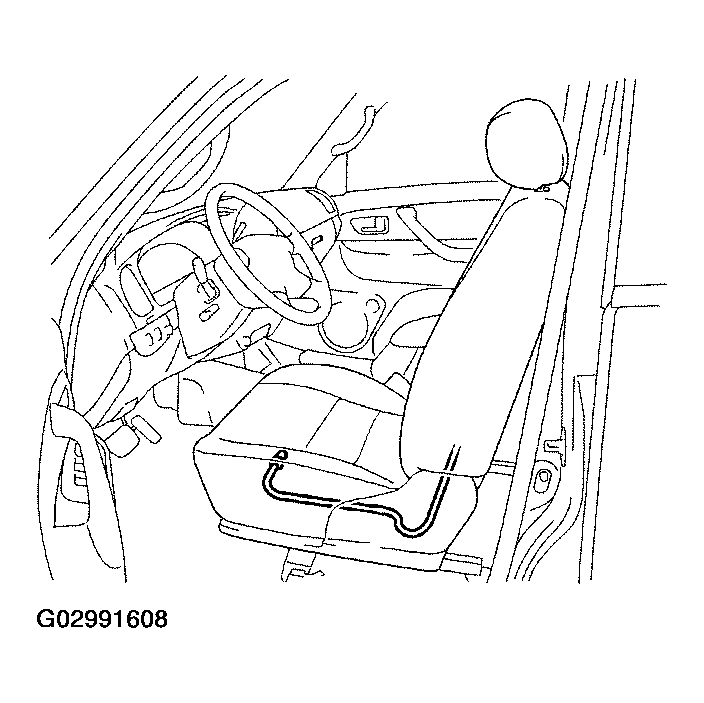

    Fig 10: Installing Front Seat
    G02991608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
