Seat Position Sensor Assembly: Removal

WARNING: This page is about a different car, the 2005 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Do not open the cover or the case of the ECU and various electrical devices unless absolutely necessary. (If the IC terminals are touched, the IC may be destroyed by static electricity.)
  • If the wiring connector of the SRS is disconnected with the ignition switch at ON position, DTCs will be recorded.
  1. REMOVE FRONT SEAT ASSEMBLY (DRIVER SIDE)

    (See  REMOVAL  )

  2. REMOVE SEAT POSITION SENSOR ASSEMBLY
    1. Remove the bolt and seat position sensor assembly.
    2. Disconnect the connector.

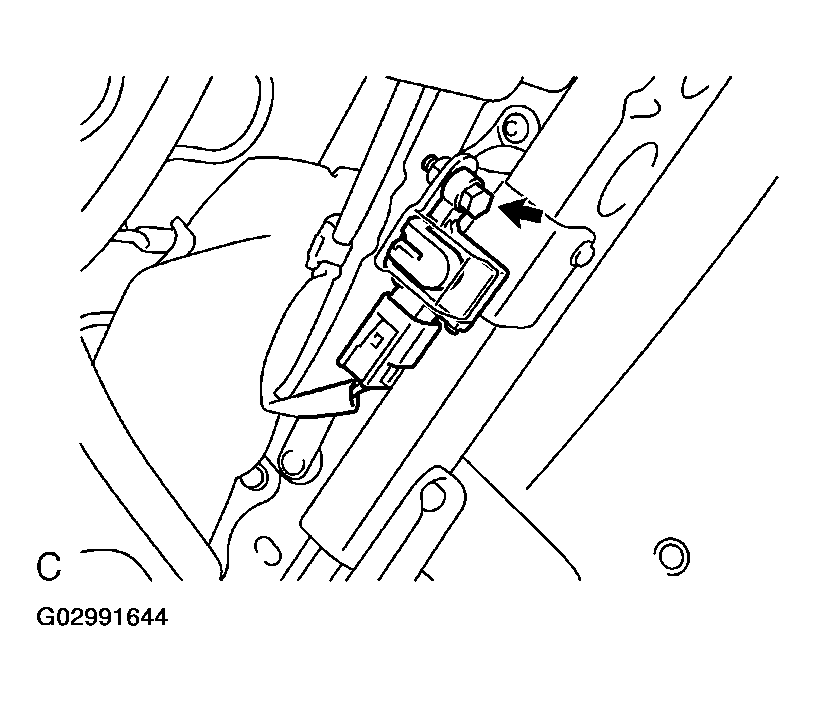

    Fig 1: Removing Bolt And Seat Position Sensor Assembly
    G02991644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
