Seat Position Sensor Assembly: Installation

WARNING: This page is about a different car, the 2005 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Never use SRS parts from another vehicle. When replacing parts, replace them with new ones.
Never reuse the seat position sensor assembly involved in a collision when the airbag has deployed.
Never repair a sensor in order to reuse it.

INSTALL SEAT POSITION SENSOR ASSEMBLY
1. Connect the connector.
2. Install the seat position sensor assembly with a new bolt.
  Part No.:

  Bolt: 90119-06871

  Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

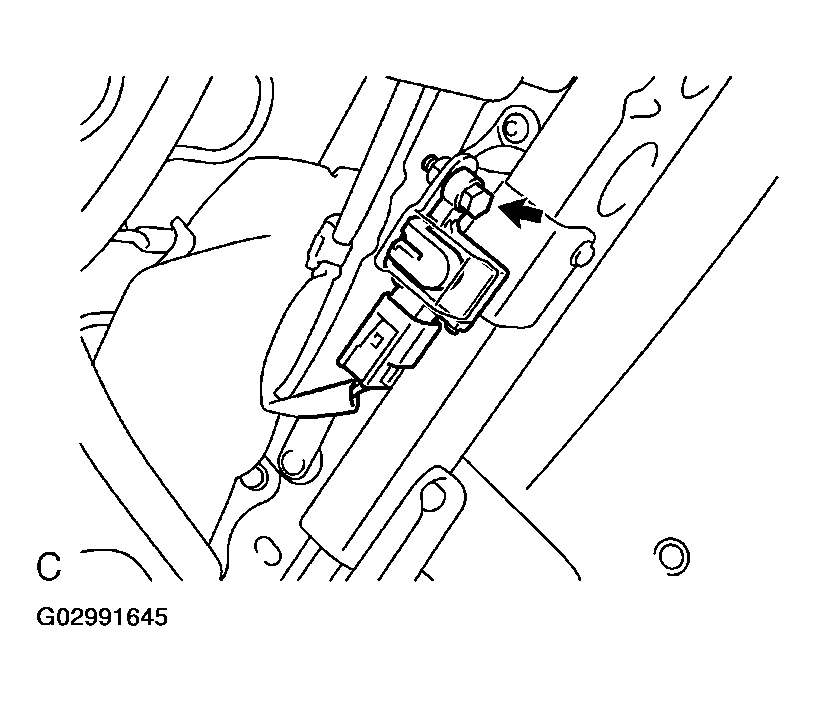

Fig 1: Installing Seat Position Sensor Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE:
- Connection of the connector is done after the sensor assembly has been installed.
- Make sure that the sensor assembly is installed with the specified torque.
- If the sensor assembly has been dropped, or there are cracks, dents or other defects in the case, bracket or connector, replace the sensor assembly with a new one.
- When installing the sensor assembly, take care that the SRS wiring does not interfere with other parts and is not pinched between other parts.
- After installation, shake the sensor assembly to check that there is no looseness.
INSTALL FRONT SEAT ASSEMBLY (DRIVER SIDE)
(See INSTALLATION )
INSPECT SRS WARNING LIGHT (See PRE-CHECK )
