RSCA Off Switch: Inspection

WARNING: This page is about a different car, the 2005 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT RSCA OFF INDICATOR LIGHT
    1. Turn the ignition switch to ON.
    2. Check that the RSCA OFF indicator light goes off after if comes on for 3 seconds.
    3. Check that the RSCA OFF indicator light comes on after pressing the RSCA OFF switch approx. 2 seconds.
  2. INSPECT RSCA OFF SWITCH CONTINUITY
    1. Remove the LWR instrument panel finish panel (See REMOVAL ).
    2. Remove the RSCA OFF switch from the LWR instrument panel finish panel.

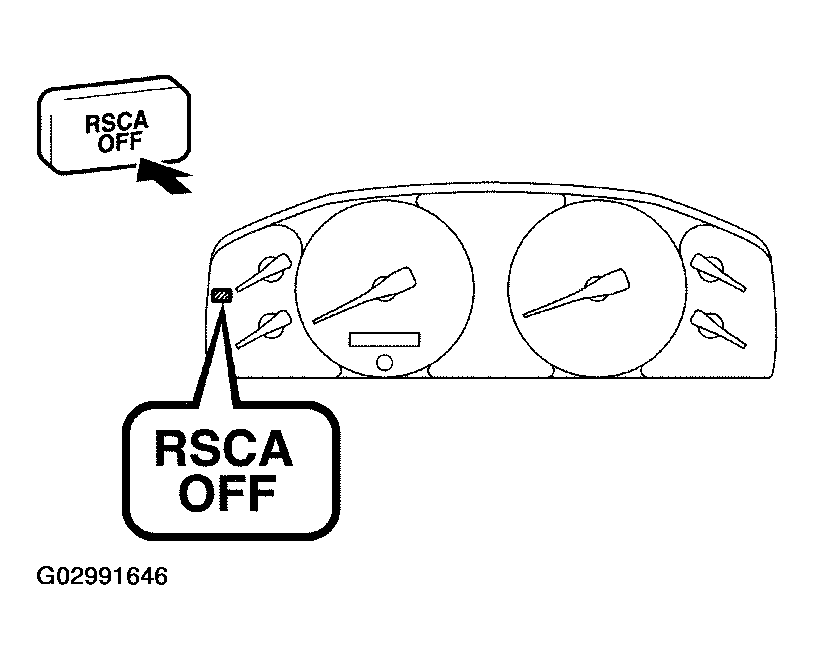

      Fig 1: Identifying RSCA OFF Switch
      G02991646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Inspect the continuity between the each terminals.
      TESTER CONNECTION SPECIFIED CONDITION

      Switch position Tester connection Specified condition
      OFF SW (3) <--> E (4) No continuity
      Hold ON SW (3) <--> E (4) Continuity
      Illumination ILL + (1)<--> ILL - (2) Continuity

      If continuity is not as specified, replace the RSCA OFF switch or bulb.

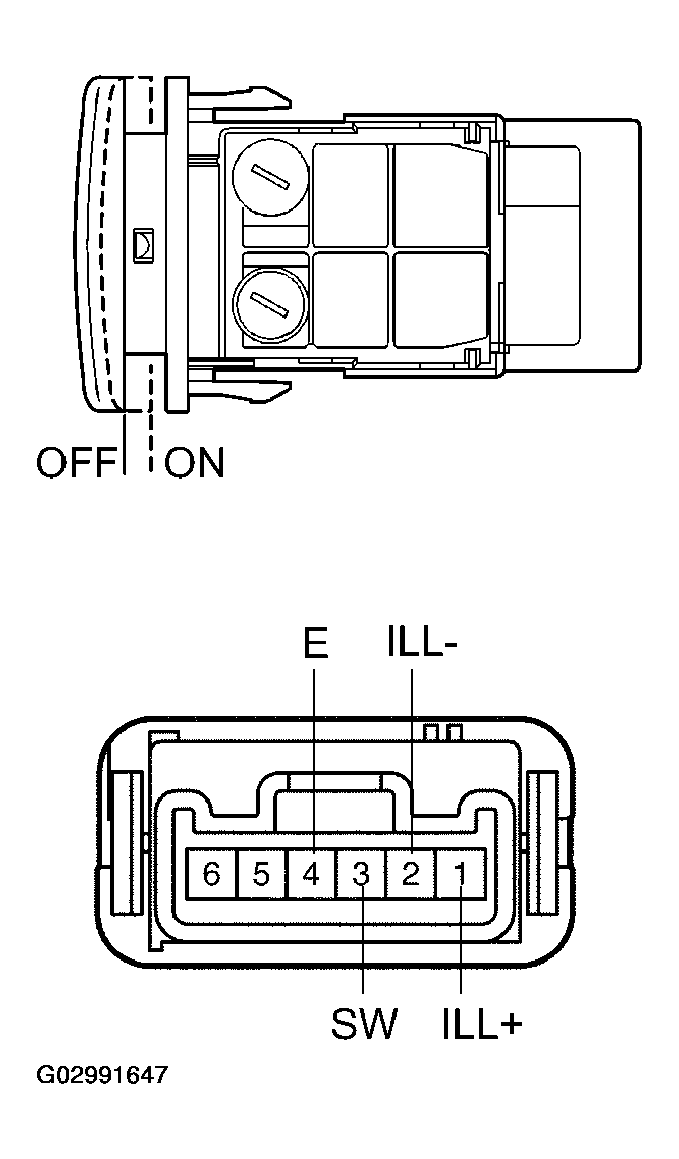

    Fig 2: Identifying RSCA OFF Switch Terminals
    G02991647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
