Front Passenger Airbag Assembly: Components

WARNING: This page is about a different car, the 2005 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

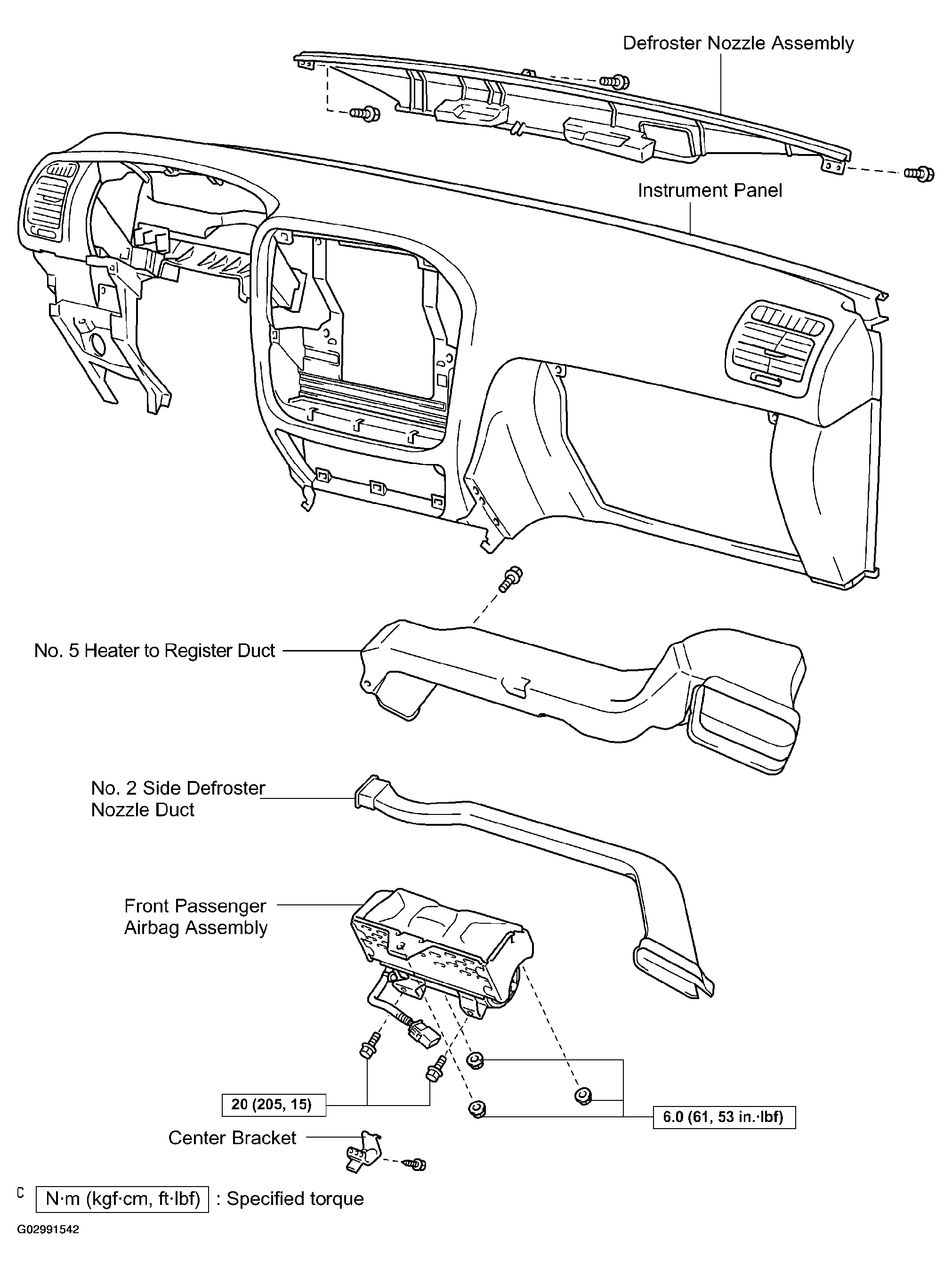

Fig 1: Front Passenger Airbag Assembly Replacement Components With Torque Specifications
G02991542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
