Front Airbag Sensor: Removal

WARNING: This page is about a different car, the 2005 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • If the wiring connector of the SRS is disconnected with the ignition switch at ON position, DTCs will be recorded.
  • Never use SRS parts from another vehicle. When replacing parts, replace them with new parts.
  • Never reuse the sensor involved in a collision when the SRS has deployed.
  • Never repair a sensor in order to reuse it.
  1. REMOVE FRONT AIRBAG SENSOR LH
    1. Remove the battery carrier and battery.
    2. Disconnect the front airbag sensor connector.
      NOTE: Disconnect the connector with sensor assembly installed.
    3. Pull the windshield washer tank opening as shown in the illustration.
    4. Remove the 2 bolts and front airbag sensor LH.

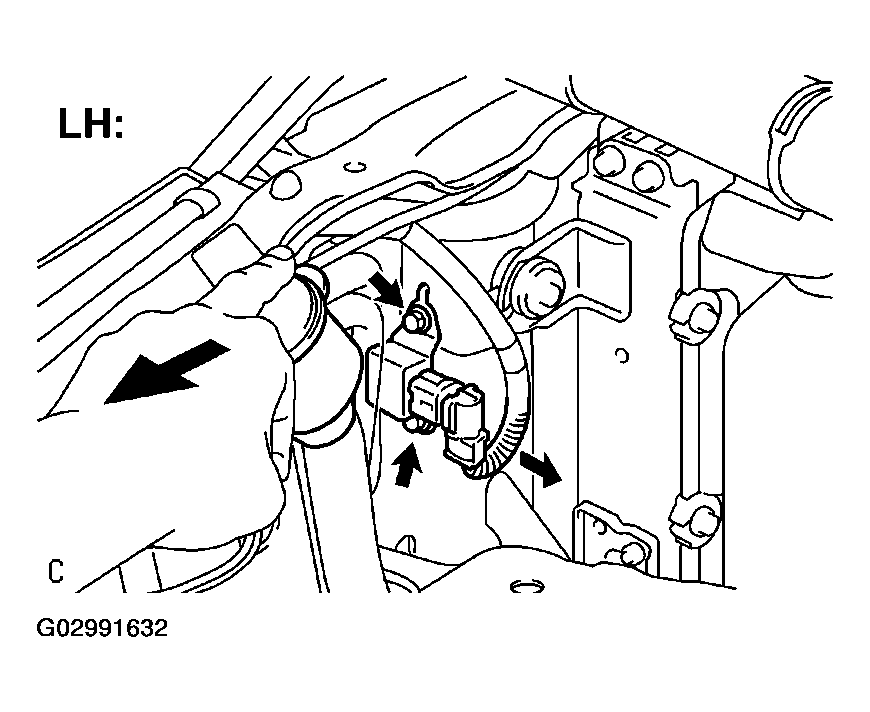

    Fig 1: Removing Front Airbag Sensor (LH)
    G02991632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE FRONT AIRBAG SENSOR RH
    1. Disconnect the front airbag sensor connector.
      NOTE: Disconnect the connector with sensor assembly installed.
    2. Remove the 2 bolts and front airbag sensor RH.

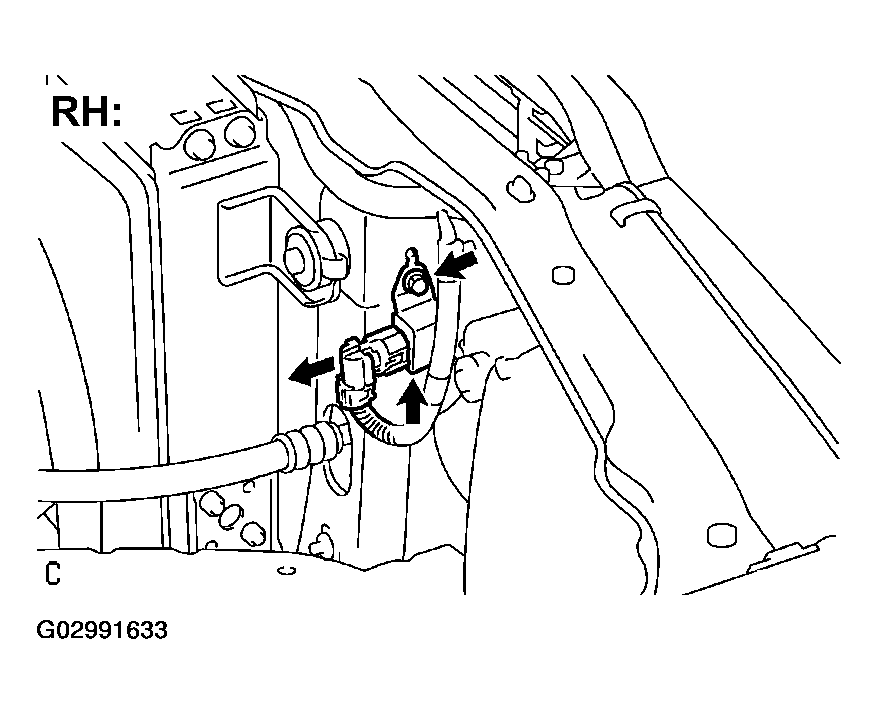

    Fig 2: Removing Front Airbag Sensor (RH)
    G02991633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
